iFlightPlanner



...

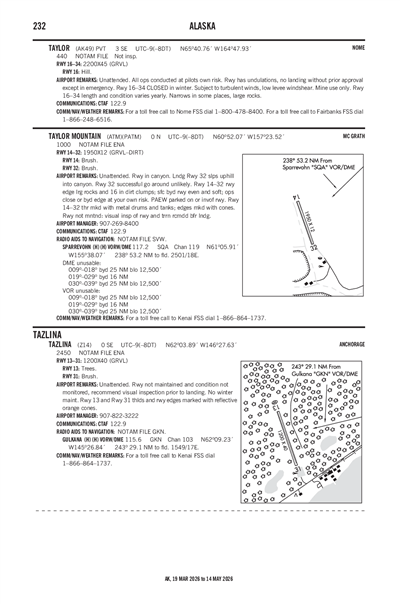

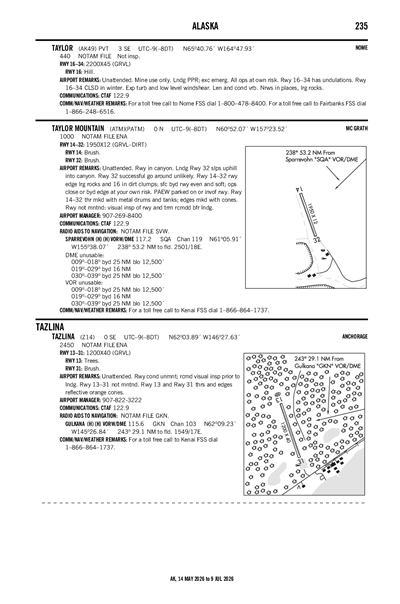

TAYLOR MOUNTAIN - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PATM
ICAO PATMLocal ATM
TAYLOR MOUNTAIN
PublicPUB

0 miles N of TAYLOR MOUNTAIN MINE, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
60° 52' 04"N 157° 23' 31"W
Elevation
1000' MSL
Pattern Alt
2000' MSL
Mag Variation
12°E
Declination
20°E
Fuel
None Listed
FSS
KENAI (ENA)
Sectional
MC GRATH
ARTCC
ANCHORAGE (ZAN)
Data Effective
4/16/26-5/14/26
PASL (50nm) MVFR
1:05 PM AKDT
Overcast 6,000'
Broken 1,500'
10sm
39°F
34°F
29.97"Hg
170° 8kts
AO2
SPECI PASL 242105Z AUTO 17008KT 140V220 10SM BKN015 OVC060 04/01 A2997 RMK AO2
+ Add Your Business

PATM FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

PADL (115nm)
Fri, 4/24 9:29 AM AKDT
Fri, 4/24 10:00 AM AKDT - Sat, 4/25 10:00 AM AKDT
MVFR
10:00 AM AKDT - 12:00 PM AKDT
Light Rain
Overcast 2,000'
Scattered 1,000'
6sm
100° 6kts
MVFR
12:00 PM AKDT - 8:00 PM AKDT
Light Rain and Mist
Overcast 1,500'
Scattered 700'
4sm
150° 9kts
MVFR
8:00 PM AKDT - 6:00 AM AKDT
Overcast 1,500'
Scattered 700'
6sm
120° 5kts
IFR
6:00 AM AKDT - 10:00 AM AKDT
Light Rain and Snow and Mist
Overcast 700'
3sm
050° 5kts
TAF PADL 241729Z 2418/2518 10006KT P6SM -RA SCT010 OVC020
   FM242000 15009KT 4SM -RA BR SCT007 OVC015
   FM250400 12005KT P6SM SCT007 OVC015
   FM251400 05005KT 3SM -RASN BR OVC007
PATM
No NOTAM Available
No
UNATNDD
STATE OF ALASKA, DNR, DMLW
550 W 7TH AVE SUITE 900C
ANCHORAGE, AK 99501
Phone: 907-269-8400
STATE OF ALASKA, DNR, DMLW
550 W 7TH AVE STE 900C SUITE 900C
ANCHORAGE, AK 99501
Phone: 907-269-8400
KENAI FSS (ENA)
Toll Free: 1-866-864-1737
ENA
--
--
N/A
Yes
No
No
None
No
None
None
None
None
None

Runway 14/32

1950 ft. x 12 ft.
GRVL DIRT
Poor
NONE


--
--
--
--
  Runway 14 Runway 32
True Heading Not ListedNot Listed
Traffic Pattern
Markings NSTD NSTD
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-4CTN: PAEW PARKED ON OR INVOF RWY.
A110-5RWY NOT MNTND: VISUAL INSP OF RWY & TRRN RCMDD BFR LNDG.
A30-14/32RWY IN CANYON; LNDG RWY 32 SLPS UPHILL INTO CANYON. RWY 32 SUCCESSFUL GO AROUND UNLIKELY.
A33-14/32_CONDCTN: RWY EDGE LRG ROCKS & 16 IN DIRT CLUMPS; SFC BYD RWY UNEVEN & SOFT; OPS CLOSE OR BYD EDGE AT YOUR OWN RISK.
A42-14_MARKTHR MKD WITH METAL DRUMS & TANKS; EDGES MKD WITH CONES.
A42-32_MARKTHR MKD WITH METAL DRUMS & TANKS; EDGES MKD WITH CONES.
A57-14CTL OBS EXCEEDS 45 DEG SLP.
TAYLOR MOUNTAIN (ICAO: PATM, IATA: ATM) is a public airport located in TAYLOR MOUNTAIN MINE, AK, US.
