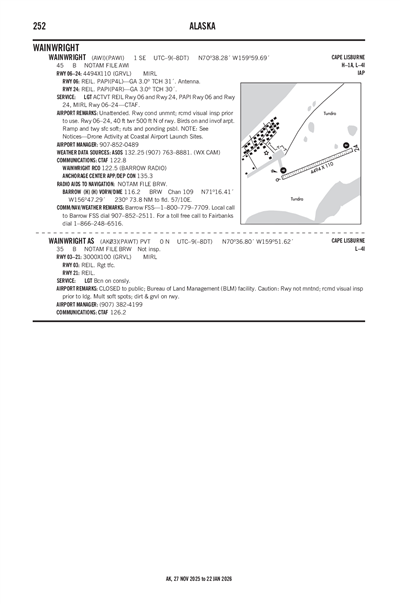

WAINWRIGHT - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAWI
WAINWRIGHT
PublicPUB

1 miles SE of WAINWRIGHT, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
70° 38' 17"N 159° 59' 41"W
45' MSL
1045' MSL
10E
None Listed
BARROW (BRW)
CAPE LISBURNE
ANCHORAGE (ZAN)
1/22/26-2/19/26
No METAR is available for this location.
+ Add Your Business

PAWI FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 132.25
(907) 763-8881

Common

CTAF 122.8
ACTVT REIL RWY 06 & 24; PAPI RWY 06 & 24; MIRL RWY 06/24 - CTAF.

Center

ANCHORAGE CENTER 135.3
LOW/HIGH, APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC ON FREQS 135.3/239.25 (BARROW RCAG).

Flight Service

Flight Service 122.5
(BRW), COMMUNICATIONS PRVDD BY BARROW FSS ON FREQ 122.5 (WAINWRIGHT RCO).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
PAWI
EffectiveExpiresCategoryNOTAM
Domestic
1/29/26
0237Z
2/13/26
0237Z
!AWI 01/016 AWI OBST TOWER LGT (ASR 1295155) 703810.40N1600150.40W (0.7NM WSW AWI) 104.0FT (75.1FT AGL) U/S 2601290237-2602130237
1/16/26
0019Z
Runway!AWI 01/007 AWI RWY 06 PAPI U/S 2601160019-2603281500EST
1/16/26
0016Z
Runway!AWI 01/006 AWI RWY 24 PAPI U/S 2601160016-2603281500EST
1/14/26
2345Z
!AWI 01/005 AWI COM REMOTE COM OUTLET 122.5 U/S 2601142345-2604261500EST
12/19/25
2040Z
!AWI 12/011 AWI SVC AUTOMATED WX BCST SYSTEM NOT AVBL 2512192040-2603291500EST
No
UNATNDD
NORTH SLOPE BOROUGH
BOX 69
BARROW, AK 99723
Phone: 907-852-2611
GEORGE AHMAOGAK
BOX 69
BARROW, AK 99723
Phone: 907-852-0489
BARROW FSS (BRW)
Toll Free: LC852-2511
AWI
--
ACTVT REIL RWY 06 & 24; PAPI RWY 06 & 24; MIRL RWY 06/24 - CTAF.
N/A
Yes - Lighted
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 06/24

4494 ft. x 110 ft.
GRAVEL
Fair
NONE
MED

--
--
--
--
  Runway 06 Runway 24
True Heading 67°247°
Traffic Pattern
Markings
Markings Condition
Latitude 70° 38' 08"N 70° 38' 25"N
Longitude 160° 00' 43"W 159° 58' 40"W
Elevation 42' 40'
Threshold Crossing Height 31 ft. AGL 30 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-2RWY COND UNMNT; RCMD VISUAL INSP PRIOR TO USE.
A110-3BIRDS ON & INVOF ARPT.
A110-4BARROW FSS - 1-800-779-7709.
A110-5RAMP & TWY SFC SOFT; RUTS & PONDING PSBL.
A110-6WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A30-06/2440 FT TWR 500 FT N OF RWY.
A81-APTACTVT REIL RWY 06 & 24; PAPI RWY 06 & 24; MIRL RWY 06/24 - CTAF.
WAINWRIGHT (ICAO: PAWI, IATA: AWI) is a public airport located in WAINWRIGHT, AK, US.
