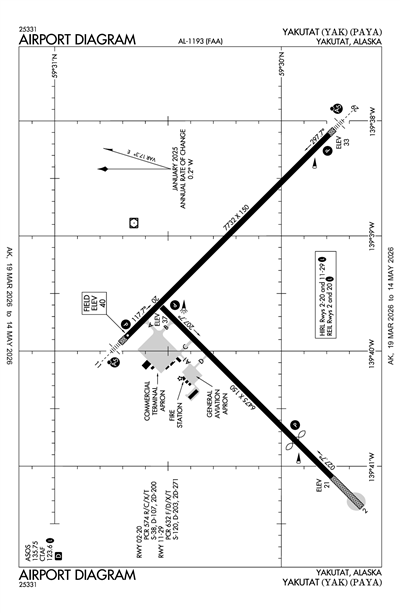

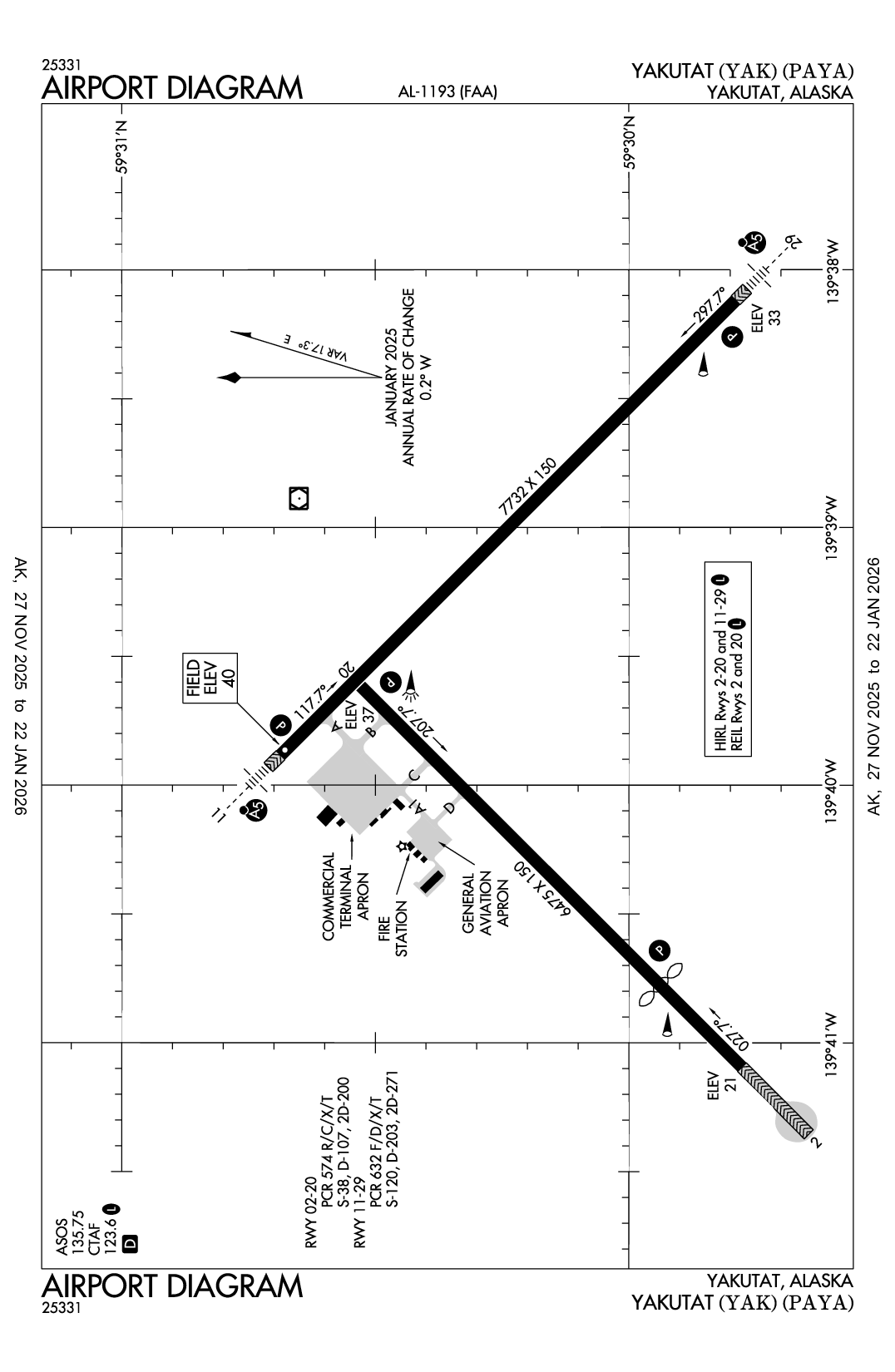

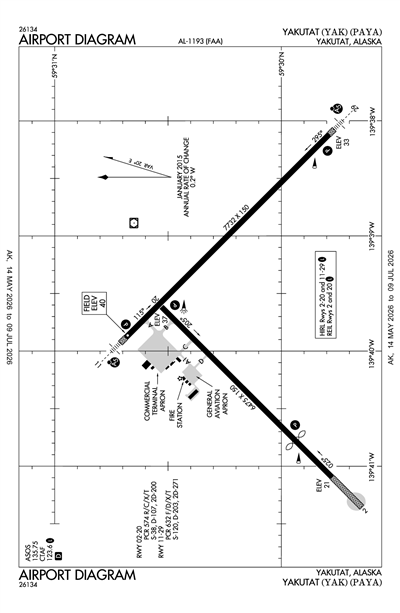

YAKUTAT - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAYA
YAKUTAT
PublicPUB

3 miles SE of YAKUTAT, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
59° 30' 12"N 139° 39' 37"W
40' MSL
1040' MSL
20E
Jet A-1+, 100
JUNEAU (JNU)
JUNEAU
ANCHORAGE (ZAN)
4/18/24-5/16/24
PAYA MVFR
6:53 PM AKDT
Overcast 2,400'
Broken 1,900'
10sm
46°F
39°F
30.17"Hg
240° 3kts
AO2 SLP215 T00780039 57002 TSNO $
PAYA 010253Z AUTO 24003KT 10SM BKN019 OVC024 08/04 A3017 RMK AO2 SLP215 T00780039 57002 TSNO $
List Your Business

PAYA FBOs, Flight Schools and Ground Support

Promote Listing
Delta Western
Freq: 123.6
Phone: (907) 784-3311
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 4/16
 100LL Jet A Jet A+ Mogas UL94
Self Serve 11.00
Full Serve 11.00 6.50
Promote Listing
Yakutat Aviation Services
Freq: 123.6
Phone: (907) 784-3087
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 4/22
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 6.50

PAYA Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

PAYA Hotels

No hotels are listed for this airport.

PAYA Restaurants

No restaurants are listed for this airport.

PAYA Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 123.6

ASOS

ASOS
907-784-3116
 135.75

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

PAYA
Tue, 4/30 3:31 PM AKDT
Tue, 4/30 4:00 PM AKDT - Wed, 5/1 4:00 PM AKDT
MVFR
4:00 PM AKDT - 8:00 PM AKDT
Overcast 2,000'
Broken 1,500'
6sm
220° 8kts
MVFR
8:00 PM AKDT - 9:00 AM AKDT
Overcast 1,800'
6sm
VRB° 2kts
VFR
9:00 AM AKDT - 4:00 PM AKDT
Scattered 10,000'
6sm
VRB° 3kts
PAYA 302331Z 0100/0124 22008KT P6SM BKN015 OVC020
   FM010400 VRB02KT P6SM OVC018
   FM011700 VRB03KT P6SM SCT100 AMD LTD TO CLD VIS AND WIND
PAYA
Domestic
2/21/240949Z !YAK 02/237 YAK RWY 29 RAI LGT U/S 2402210949-2406081500EST
2/21/240947Z !YAK 02/236 YAK RWY 11 RAI LGT U/S 2402210947-2407061500EST
10/18/231853Z !YAK 10/185 YAK RWY 20 RWY END ID LGT U/S 2310181853-2405011500
10/18/231852Z !YAK 10/184 YAK RWY 20 PAPI U/S 2310181852-2405011500
10/18/231851Z !YAK 10/183 YAK RWY 02 RWY END ID LGT U/S 2310181851-2405011500
10/18/231851Z !YAK 10/182 YAK RWY 02 PAPI U/S 2310181851-2405011500
FDC
3/15/241556Z !FDC 4/7765 YAK ODP YAKUTAT, YAKUTAT, AK.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 5A...
TAKEOFF MINIMUMS: RWY 20, 300-1 1/8 OR STANDARD WITH MINIMUM CLIMB OF 290 FEET PER NM TO 300. ALL OTHER DATA REMAINS AS PUBLISHED. 2403151556-2603151556EST
2/2/241545Z !FDC 4/0646 YAK IAP YAKUTAT, YAKUTAT, AK.
ILS OR LOC RWY 11, AMDT 4...
LOC BC RWY 29, AMDT 9...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
YAK VOR OUT OF SERVICE. 2402021545-2409131545EST
2/2/241545Z !FDC 4/0645 YAK ODP YAKUTAT, YAKUTAT, AK.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 5A...
DEPARTURE PROCEDURE ADF REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
YAK VOR OUT OF SERVICE. 2402021545-2409131545EST
2/2/241545Z !FDC 4/0644 YAK SID YAKUTAT, YAKUTAT, AK.
FAKES FOUR DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
YAK VOR OUT OF SERVICE. 2402021545-2409131545EST
9/27/231740Z !FDC 3/6199 YAK IAP YAKUTAT, YAKUTAT, AK.
VOR/DME RWY 29, AMDT 5...
S-29 HAT 408.
CIRCLING CAT A MDA 520/HAA 480, CAT B MDA 540/HAA 500, CAT C HAA 580, CAT D HAA 680
NOTE: CIRCLING RWY 20 NA AT NIGHT.
DISREGARD PROFILE NOTE: VGSI AND DESCENT ANGLES NOT COINCIDENT.
APT ELEV 40.
TDZE 32.
2309271740-2508301740EST
No
1530Z-0230Z
ALASKA DOT&PF SOUTHCOAST REGION
6860 GLACIER HWY
JUNEAU, AK 99801-7999
Phone: 907-465-1779
ROBERT LEKANOF
BOX 186
YAKUTAT, AK 99689
Phone: 907-784-3293
JUNEAU FSS (JNU)
Toll Free: 1-866-297-2236
YAK
--
ACTVT MALSR RWY 11 & 29; REIL RWY 02/20; PAPI RWY 11/29 & 02/20; HIRL RWY 02/20, 11/29; TWY LIGHTS - CTAF.
N/A
Yes - Lighted
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
10
0
0
0
0
0
None
None
None
None
Cargo Handling

Runway 02/20

6475 ft. x 150 ft.
CONC
Good
NONE
HIGH
59 /R/C/X/T
38,000lbs
107,000lbs
200,000lbs
--
  Runway 02 Runway 20
True Heading 45°225°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 59° 29' 47"N 59° 30' 32"N
Longitude 139° 41' 06"W 139° 39' 37"W
Elevation 21' 37'
Threshold Crossing Height 27 ft. AGL 29 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 11/29

7732 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
53 /F/B/X/T
38,000lbs
107,000lbs
200,000lbs
--
  Runway 11 Runway 29
True Heading 135°315°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition FAIR GOOD
Latitude 59° 30' 41"N 59° 29' 47"N
Longitude 139° 39' 53"W 139° 38' 07"W
Elevation 40' 33'
Threshold Crossing Height 56 ft. AGL 51 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR MALSR
Centerline Lights
Runway End Identifier Lights
A110-1BE ALERT POSSIBLE SNOW PILES ON RAMP AND SNOW BERMS ON TWY EDGES 1 OCT - 1 MAY.
A110-10PARA JUMPING ONTO ARPT, RWY, TWY & ACFT PARKING APRON PROHIBTED.
A110-13TWY A1, D & APRON B CLSD TO ACFT 12500 LBS & OVR.
A110-14ARPT SAND LARGER GRADATION THAN FAA RECOMMENDED/SEE AC150/5200-30.
A110-15TWYS B, C, & D NOT MAINTAINED OR MONITORED 1 OCT- 1 MAY.
A110-16TWY LGTS TWYS B, C, & D OTS 1 OCT- 1 MAY.
A110-1724 HOUR PPR REQ FOR CARGO OPS OVER 100K CALL 907-784-3476.
A110-18WX CAMERAS AVBL AT: HTTPS://WEATHERCAMS.FAA.GOV.
A110-191 OCT - 1 MAY: PAPI RWY 02, 11, & 29; HIRL RWY 02/20; REIL RWY 02/20 OTS.
A110-2SNOW REMOVAL; ICE CONTROL & ARPT HAZARDOUS CONDS REPORTED ONLY DURG ARPT MAINT DUTY HRS.
A110-20SNOW REMOVAL, WILDLIFE CTL, COND REPORTING, AND OTR AFLD MAINT SERVICES ONLY AVBL AND VALID DRG ARPT MAINT DUTY HRS. CTC ARPT MGMT FOR AFTER-HRS REQS FOR AFLD SERVICES. ARPT MAINT DUTY HRS 0630-1730 DLY.
A110-21NWS WEATHER BALLOON LAUNCH FAC LOCATED ON ARPT, SEE INSIDE BACK COVER FOR OPN DETAILS.
A110-22RWY 02/20 NOT AVBL FOR SCHEDULED OR UNSCHEDULED ACR OPNS WITH MORE THAN 30 PSGR SEATS.
A110-4RWY 02/20 NOT MAINTAINED OR MONITORED 1 OCT - 1 MAY.
A110-5NUMEROUS BIRDS, BEAR, MOOSE ON & INVOF RWY.
A110-7TWY C AND TWY A1 CLSD DURG ACR OPNS UNTIL 15 MIN AFTER DUE TO JET BLAST.
A110-8RWY COND REPORTS REFLECT CONDS DURING ARPT MAINT DUTY HRS ONLY.
A110-9ARPT MAINT PERSONNEL & EQUIP MAY BE ON RWY AT ANY TIME; RECOMMEND VISUAL INSPN PRIOR TO USE; CTC NEAREST FSS FOR CURRENT NOTAM.
YAKUTAT (ICAO: PAYA, IATA: YAK) is a public airport located in YAKUTAT, AK.
