iFlightPlanner



...

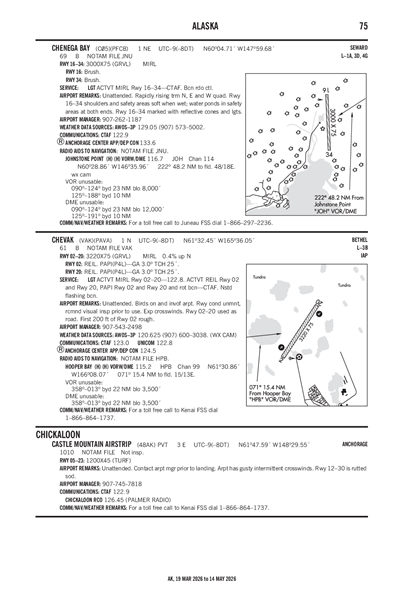

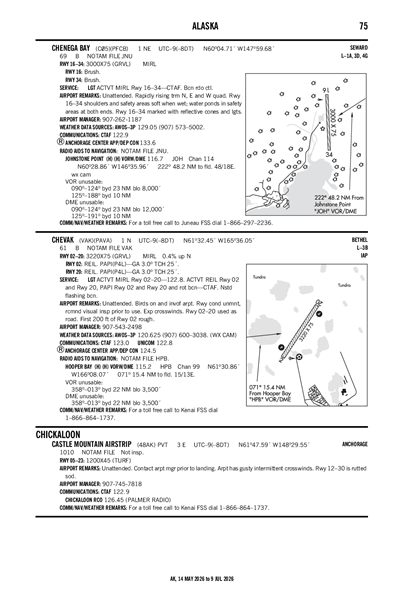

CHENEGA BAY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PFCB
ICAO PFCBIATA NCNLocal C05
CHENEGA BAY
PublicPUB

1 miles NE of CHENEGA, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
60° 04' 43"N 147° 59' 41"W
Elevation
69' MSL
Pattern Alt
1069' MSL
Mag Variation
16°E
Declination
19°E
Fuel
None Listed
FSS
JUNEAU (JNU)
Sectional
SEWARD
ARTCC
ANCHORAGE (ZAN)
Data Effective
2/19/26-3/19/26
No METAR is available for this location.
+ Add Your Business

PFCB FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3P 129.05
(907) 573-5002

Common

CTAF 122.9
ACTIVATE MIRL RWY 16/34 - CTAF.

Center

ANCHORAGE CENTER 133.6
LOW, APCH/DEP SVC PRVVD BY ANCHORAGE ARTCC (ZAN) ON 133.6/269.4 (MIDDLETON ISLAND RCAG).

FAA A/FD Pages

Terminal Area Forecast

PAVD (82nm)
Sun, 2/22 8:22 AM AKST
Sun, 2/22 9:00 AM AKST - Mon, 2/23 9:00 AM AKST
VFR
9:00 AM AKST - 3:00 PM AKST
Few 15,000'
6sm
050° 6kts
Gusts 18kts
VFR
3:00 PM AKST - 9:00 AM AKST
Broken 12,000'
6sm
080° 7kts
TAF PAVD 221722Z 2218/2318 05006G18KT P6SM FEW150
   FM230000 08007KT P6SM BKN120
PFCB
EffectiveExpiresCategoryNOTAM
Domestic
2/21/26
1227Z
9/27/26
2359Z
!JNU 02/408 C05 SVC AUTOMATED WX BCST SYSTEM U/S 2602211227-2609272359EST
No
UNATNDD
ALASKA DOT&PF CENTRAL REGION
PO BOX 196900
ANCHORAGE, AK 99519
Phone: (907) 269-0783
ROB SMITH
P. O. BOX 1327
SOLDOTNA, AK 99669
Phone: 907-262-1187
JUNEAU FSS (JNU)
Toll Free: 1-866-297-2236
JNU
--
ACTIVATE MIRL RWY 16/34 - CTAF.
RDO CTL.
N/A
Yes - Lighted
Yes
No
None
No
None
None
None
None
None

Runway 16/34

3000 ft. x 75 ft.
GRAVEL
Good
NONE
MED

--
--
--
--
  Runway 16 Runway 34
True Heading 177°357°
Traffic Pattern
Markings NSTD NSTD
Markings Condition
Latitude 60° 04' 58"N 60° 04' 28"N
Longitude 147° 59' 42"W 147° 59' 40"W
Elevation 64' 69'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2RAPIDLY RISING TRRN N, E & W QUAD.
A33-16/34_CONDSHOULDERS & SAFETY AREAS SOFT WHEN WET; WATER PONDS IN SAFETY AREAS BOTH ENDS.
A42-16_MARKREFLECTIVE CONES & LGTS.
A42-34_MARKREFLECTIVE CONES & LGTS.
A81-APTACTIVATE MIRL RWY 16/34 - CTAF.
A81-BCNRDO CTL.
CHENEGA BAY (ICAO: PFCB, IATA: C05) is a public airport located in CHENEGA, AK, US.
