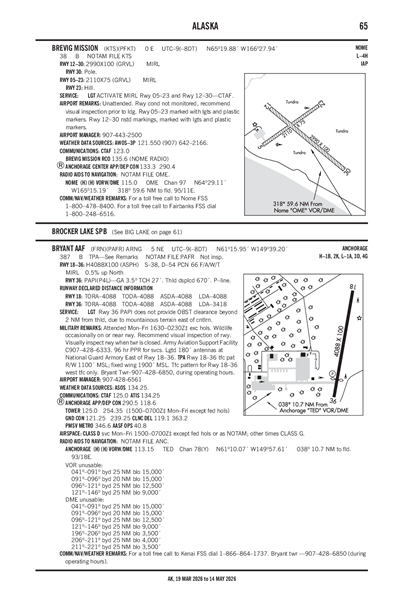

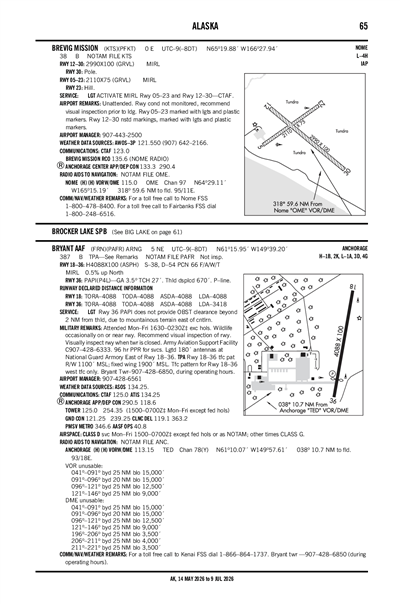

BREVIG MISSION - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PFKT
ICAO PFKTIATA KTSLocal KTS
BREVIG MISSION
PublicPUB

0 miles E of BREVIG MISSION, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
65° 19' 53"N 166° 27' 57"W
Elevation
38' MSL
Pattern Alt
1038' MSL
Mag Variation
8°E
Declination
9°E
Fuel
None Listed
FSS
NOME (OME)
Sectional
NOME
ARTCC
ANCHORAGE (ZAN)
Data Effective
4/16/26-5/14/26
PFKT VFR
12:56 PM AKDT
Unknown Precipitation
Overcast 4,900'
Broken 4,200'
10sm
36°F
34°F
29.84"Hg
090° 10kts
AO2 UPB50 SLP103 P0000 60000 T00220011 53012 FZRANO $
METAR PFKT 242056Z AUTO 09010KT 10SM UP BKN042 OVC049 02/01 A2984 RMK AO2 UPB50 SLP103 P0000 60000 T00220011 53012 FZRANO $
+ Add Your Business

PFKT FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3P 121.55
(907) 642-2166

Common

CTAF 123.0
ACTVT MIRL RWY 05/23 & 12/30 - CTAF.

Center

ANCHORAGE CENTER 133.3
LOW, APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC ON FREQS 133.3/290.4 (NOME RCAG).

Flight Service

Flight Service 135.6
(OME), COMMUNICATIONS PRVDD BY NOME FSS ON FREQ 135.6 (BREVIG MISSION RCO).

FAA A/FD Pages

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

PAOM (56nm)
Fri, 4/24 9:31 AM AKDT
Fri, 4/24 10:00 AM AKDT - Sat, 4/25 10:00 AM AKDT
MVFR
10:00 AM AKDT - 4:00 PM AKDT
Light Rain and Mist
Overcast 1,500'
6sm
100° 10kts
MVFR
4:00 PM AKDT - 8:00 PM AKDT
Light Rain and Mist
Overcast 1,000'
6sm
090° 9kts
IFR
8:00 PM AKDT - 10:00 AM AKDT
Light Showers and Rain and Showers and Snow
Overcast 900'
5sm
080° 7kts
TAF PAOM 241731Z 2418/2518 10010KT 6SM -RA BR OVC015
   FM250000 09009KT 6SM -RA BR OVC010
   FM250400 08007KT 5SM -SHRASN OVC009
PFKT
EffectiveExpiresCategoryNOTAM
Domestic
4/23/26
1621Z
4/24/26
1621Z
Runway!KTS 04/006 KTS RWY 12 FICON 10 PCT 1IN DRY SN OBS AT 2604231621. 2604231621-2604241621
3/12/26
2133Z
!KTS 03/007 KTS COM REMOTE COM OUTLET 135.6 U/S 2603122133-2606151500EST
FDC
4/24/26
1826Z
!FDC 6/5642 KTS ODP BREVIG MISSION, BREVIG MISSION, AK.
BREVIG THREE DEPARTURE (RNAV) ...
MSA: 5100. ALL OTHER DATA REMAINS AS PUBLISHED. 2604241826-2804241826EST
No
UNATNDD
ALASKA DOT&PF NORTHERN REGION
2301 PEGER RD
FAIRBANKS, AK 99701
Phone: 907-451-2200
GEORGE KOST
BOX 1048
NOME, AK 99762
Phone: 907-443-2500
NOME FSS (OME)
Toll Free: 1-800-478-8400
KTS
--
ACTVT MIRL RWY 05/23 & 12/30 - CTAF.
N/A
Yes - Lighted
Yes
No
None
No
None
None
None
None
None

Runway 05/23

2110 ft. x 75 ft.
GRVL
Good
NONE
MED

--
--
--
--
  Runway 05 Runway 23
True Heading 55°235°
Traffic Pattern Left Left
Markings NSTD
Markings Condition
Latitude 65° 19' 49"N 65° 20' 01"N
Longitude 166° 28' 24"W 166° 27' 43"W
Elevation 34' 38'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12/30

2990 ft. x 100 ft.
GRVL
Good
NONE
MED

--
--
--
--
  Runway 12 Runway 30
True Heading 130°310°
Traffic Pattern
Markings NSTD
Markings Condition
Latitude 65° 20' 00"N 65° 19' 42"N
Longitude 166° 28' 19"W 166° 27' 25"W
Elevation 36' 35'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-2RY COND NOT MONITORED; RCMD VISUAL INSPECTION PRIOR TO LDNG.
A42-05_MARKRWY 05/23 MARKED WITH LIGHTS AND PLASTIC MARKERS.
A42-12_MARKRWY 12/30 MARKED WITH LIGHTS AND PLASTIC MARKERS.
A81-APTACTVT MIRL RWY 05/23 & 12/30 - CTAF.
E111ESTABD PRIOR TO 1959.
BREVIG MISSION (ICAO: PFKT, IATA: KTS) is a public airport located in BREVIG MISSION, AK, US.
