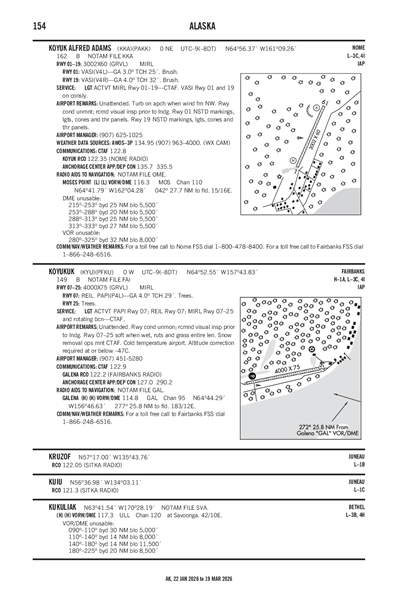

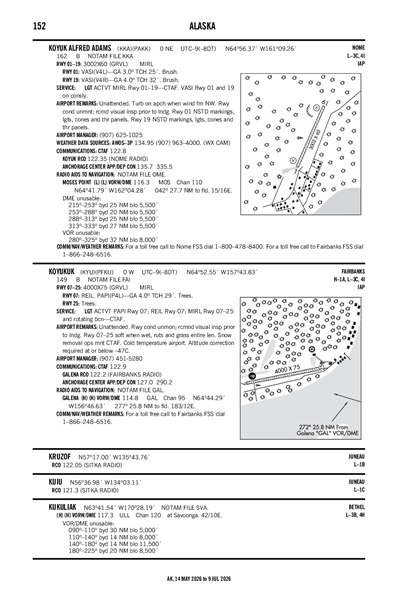

KOYUKUK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PFKU
ICAO PFKUIATA KYULocal KYU
KOYUKUK
PublicPUB

0 miles W of KOYUKUK, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
64° 52' 33"N 157° 43' 50"W
Elevation
149' MSL
Pattern Alt
1149' MSL
Mag Variation
12°E
Declination
11°E
Fuel
None Listed
FSS
FAIRBANKS (FAI)
Sectional
FAIRBANKS
ARTCC
ANCHORAGE (ZAN)
Data Effective
4/16/26-5/14/26
PANU (12nm) MVFR
6:13 PM AKDT
Overcast 11,000'
Broken 4,200'
Broken 1,100'
10sm
39°F
36°F
29.94"Hg
130° 3kts
AO2
SPECI PANU 250213Z AUTO 13003KT 10SM BKN011 BKN042 OVC110 04/02 A2994 RMK AO2
+ Add Your Business

PFKU FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT ROTG BCN - CTAF.; ACTVT PAPI RWY 07; REIL RWY 07; MIRL RWY 07/25 - CTAF.; SNOW REMOVAL OPS MNT CTAF.

Center

ANCHORAGE CENTER 127.0
LOW, APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC ON FREQS 127.0/290.2 (GALENA RCAG).

Flight Service

Flight Service 122.2
(FAI), COMMUNICATIONS PRVDD BY FAIRBANKS FSS ON FREQ 122.2 (GALENA RCO).

FAA A/FD Pages

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

PAGA (22nm)
Fri, 4/24 3:20 PM AKDT
Fri, 4/24 4:00 PM AKDT - Sat, 4/25 4:00 PM AKDT
MVFR
4:00 PM AKDT - 7:00 AM AKDT
Light Rain and Mist
Overcast 3,000'
6sm
120° 5kts
IFR
7:00 AM AKDT - 9:00 AM AKDT
Light Rain and Mist
Overcast 1,500'
2sm
110° 4kts
MVFR
9:00 AM AKDT - 4:00 PM AKDT
Overcast 2,500'
6sm
120° 5kts
MVFR
10:00 AM AKDT - 12:00 PM AKDT
Light Rain
Overcast 1,500'
4sm
Calm
TAF PAGA 242320Z 2500/2524 12005KT 6SM -RA BR OVC030
   FM251500 11004KT 2SM -RA BR OVC015
   FM251700 12005KT P6SM OVC025
   PROB30 2518/2520 4SM -RA OVC015
PFKU
No NOTAM Available
No
UNATNDD
ALASKA DOT&PF NORTHERN REGION
NORTHERN REGION 2301 PEGER RD
FAIRBANKS, AK 99709
Phone: (907) 451-5280
JASON LUNDINGTON
2301 PEGER RD
FAIRBANKS, AK 99709
Phone: (907) 451-5280
FAIRBANKS FSS (FAI)
Toll Free: 1-866-248-6516
FAI
--
ACTVT PAPI RWY 07; REIL RWY 07; MIRL RWY 07/25 - CTAF.
ACTVT ROTG BCN - CTAF.
N/A
Yes - Lighted
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 07/25

4000 ft. x 75 ft.
GRAVEL
Good
NONE
MED

--
--
--
--
  Runway 07 Runway 25
True Heading 79°259°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition FAIR FAIR
Latitude 64° 52' 29"N 64° 52' 37"N
Longitude 157° 44' 35"W 157° 43' 04"W
Elevation 149' 149'
Threshold Crossing Height 29 ft. AGL --
Visual Glide Path Angle 4° --
Visual Slope Indicator P4L --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes No
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1SNOW REMOVAL OPS MNT CTAF.
A110-2RWY COND UNMNT; RCMND VISUAL INSP PRIOR TO LNDG.
A110-3COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -47C.
A33-07/25_CONDSOFT WHEN WET; RUTS & GRASS ENTIRE LEN.
A42-07_MARKPLASTIC MKRS.
A42-25_MARKPLASTIC MKRS.
A81-APTACTVT PAPI RWY 07; REIL RWY 07; MIRL RWY 07/25 - CTAF.
A81-BCNACTVT ROTG BCN - CTAF.
KOYUKUK (ICAO: PFKU, IATA: KYU) is a public airport located in KOYUKUK, AK, US.
