iFlightPlanner



...
WHEELER AAF - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PHHI
WHEELER AAF
PrivatePVT

1 miles SW of WAHIAWA, HI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
21° 28' 53"N 158° 02' 16"W
843' MSL
1843' MSL
11E
None Listed
HONOLULU (HNL)
HAWAIIAN ISLANDS
HONOLULU CONTROL FACILITY (ZHN)
4/18/24-5/16/24
PHHI VFR
1:55 PM HST
Broken 3,400'
10sm
81°F
66°F
29.96"Hg
160° 6kts
AO2 SLP136 T02700188 10271 20217 57018 $
PHHI 302355Z AUTO 16006KT 10SM BKN034 27/19 A2996 RMK AO2 SLP136 T02700188 10271 20217 57018 $
List Your Business

PHHI FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

PHHI Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

PHHI Hotels

No hotels are listed for this airport.

PHHI Restaurants

No restaurants are listed for this airport.

PHHI Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 126.3

ATIS

ATIS
808-656-1789, Hours: 24HR.
 119.675

Emergency

EMERG
 121.5

Ground

GND/P
 121.85

Tower

LCL/P
 126.3

Other

OPS
LIGHTNING RADIO
 141.65
OPS
BIRD BATH CONTROL
 148.5
PMSV METRO
 125.1

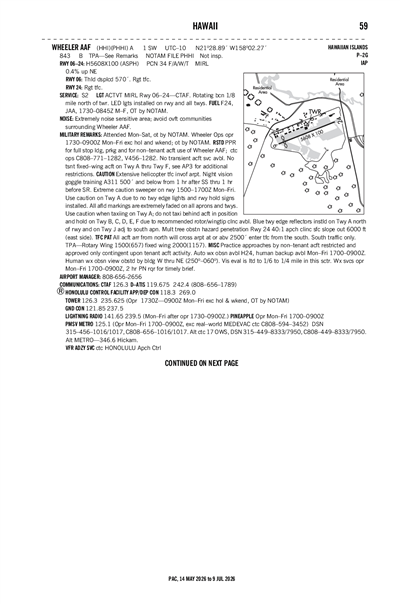

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PHHI
Tue, 4/30 1:00 PM HST
Tue, 4/30 1:00 PM HST - Wed, 5/1 7:00 PM HST
VFR
1:00 PM HST - 8:00 PM HST
Broken 3,500'
Scattered 2,500'
6sm
29.94"Hg
090° 9kts
MVFR
Temporary 1:00 PM HST - 7:00 PM HST
Light Showers and Rain
Broken 2,000'
3.73sm
100° 15kts
Gusts 20kts
VFR
Becoming 8:00 PM HST - 3:00 AM HST
Scattered 3,500'
6sm
29.94"Hg
090° 6kts
VFR
Becoming 3:00 AM HST - 7:00 PM HST
Broken 3,500'
Scattered 2,500'
6sm
29.94"Hg
090° 9kts
TAF PHHI 302300Z 3023/0205 09009KT 9999 SCT025 BKN035 QNH2993INS
   TEMPO 3023/0105 10015G20KT 6000 -SHRA BKN020
   BECMG 0106/0107 09006KT 9999 SCT035 QNH2995INS
   BECMG 0113/0114 09009KT 9999 SCT025 BKN035 QNH2994INS TX27/3023Z TN18/0116Z
PHHI
Military
5/1/240100Z AERODROME TACTICAL COPTER GCA APPROACHES AVAILABLE WEDNESDAY, THURSDAY, AND FRIDAY 0100-0700 DAILY (P) 348.525 UHF (A) 143.5 VHF
4/30/241826Z AERODROME CAUTION 70FT CONSTRUCTION CRANE WITH FLAG LOCATED 1000FT NORTHWEST OF RWY 06/24 IVO CLEAR ZONE
4/29/241823Z M0374/24 NOTAMC M0373/24
4/29/241730Z AERODROME SMALL UNMANNED ACFT WITHIN AREA DEFINED AS .10 NM FROM 04Q EJ9832976679, SFC-100FT AGL 1730-0400 DAILY MONDAY THRU FRIDAY
4/29/241730Z AERODROME SMALL UNMANNED ACFT WITHIN AREA DEFINED AS .10 NM FROM 04Q EJ9812276850, SFC-100FT AGL 1730-0400 DAILY MONDAY THROUGH FRIDAY
4/29/241730Z AERODROME SMALL UNMANNED ACFT WITHIN AREA DEFINED AS .10 NM FROM 04Q EJ9796876988, SFC-100FT AGL 1730-0400 DAILY MONDAY THROUGH FRIDAY
4/29/241730Z AERODROME SMALL UNMANNED ACFT WITHIN AREA DEFINED AS .10 NM FROM 04Q EJ9780477131, SFC-100FT AGL 1730-0400 DAILY MONDAY THROUGH FRIDAY
4/17/240555Z NORTH RAMP CAUTION A11 PARKING SPOTS ALPHA AND BRAVO ARE RESTRICTED - NO ENGINE RUN TESTS NEAR AIR TRAFFIC TOWER DUE TO NOISE ABATEMENT WITHIN TOWER COMMUNICATIONS
4/17/240430Z AERODROME CAUTION METRO SERVICES CONTACT TELEPHONE NUMBERS HAVE CHANGED. CONTACT METRO SERVICES ON 808-787-3164 AND 808-787-3165
4/17/240317Z AERODROME CAUTION TWY KILO, LIMA, AND JULIET NORTH OF JULIET HOVERPOINT CLOSED FOR CONSTRUCTION. ACFT USE TRIANGLE SOD FOR SOUTH APRON TRANSITION
4/17/240314Z AERODROME CAUTION ECHO TAXIWAY CLOSED
4/17/240301Z RWY 06/24 CLOSED TO FIXED WING EXCEPT ROTARY WING AIRCRAFT
4/17/240222Z RWY 24 TODA 1620 LDA 1620 FROM TEMPORARY DISPLACED THRESHOLD ESTABLISHED 3420FT WEST OF EXISTING THRESHOLD WITH THRESHOLD LIGHTS AND THRESHOLD BAR. AN "X" IS PLACED ON RWY RWY24 DESIGNATION.
4/17/240217Z RWY 06 TODA 2190-1620 AVAILABLE FOR LANDING FROM PERMENANT DISPLACED THRESHOLD. 2800FT ARE CLOSED DUE TO CONSTRUCTION. RWY 06/24 EDGE LIGHTS OUT FROM TAXIWAY KILO TO RUNWAY 6 DEPARTURE DUE TO CONSTRUCTION.
3/30/240001Z !PHHI V0136/24 HHI AERODROME IFR TAKE-OFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMENDMENT ...COPTER USE ONLY. AUTHORIZED FROM RWY 06 ABEAM TWY F ONLY. 2403300001-2406052359
3/30/240001Z !PHHI V0135/24 HHI AERODROME STANDARD INSTRUMENT DEPARTURE (SID) AMENDMENT GECKO TWO DEPARTURE... COPTER USE ONLY. AUTHORIZED FROM RWY 06 ABEAM TWY F ONLY. 2403300001-2406052359
3/30/240001Z !PHHI V0134/24 HHI AERODROME STANDARD INSTRUMENT DEPARTURE (SID) AMENDMENT KOKO HEAD TWO DEPARTURE ...COPTER USE ONLY. AUTHORIZED FROM RWY 06 ABEAM TWY F ONLY. 2403300001-2406052359
3/30/240001Z !PHHI V0133/24 HHI AERODROME INSTRUMENT APPROACH PROCEDURE AMENDMENT VOR OR TACAN-B... RWY 06 - COPTER USE ONLY, LANDING BETWEEN RWY 06 THLD AND TWY C ONLY; RWY 24 - NOT AUTHORIZED. 2403300001-2406052359
3/30/240001Z !PHHI V0132/24 HHI AERODROME INSTRUMENT APPROACH PROCEDURE AMENDMENT RNAV (GPS)-C ... RWY 06 - COPTER USE ONLY, LANDING BETWEEN RWY 06 THLD AND TWY C ONLY; RWY 24 - NOT AUTHORIZED. 2403300001-2406052359
3/28/240157Z AERODROME CAUTION ISO 25TH INFANTRY DIVISION; LANDING OF A/C VIC UPPER 36 (FJ 0487-7822) AND LOWER 36 (FJ 0428-7730) IS PROHIBITED DUE TO TRAINING, EQUIPMENT & PERSONNEL ON LZS
3/19/241903Z AERODROME LIVE HOIST TRAINING IN PROGRESS VICINITY NATIONAL GUARD SOD 1900-2000 AND 0300-0400 DAILY MONDAY THRU FRIDAY FOR MEDEVAC CREW ONLY
3/12/240348Z AERODROME CAUTION WHEELER WEATHER SUPPORT WEEKENDS, HOLIDAYS OR NOTAM CTC 808-594-3452
3/7/241947Z RWY 06/24 ALL ACFT MAINTAIN 200FT AGL OR ABOVE CLSD PORTION OF THE RWY DUE TO MEN AND EQUIPMENT.
12/21/231912Z !PHHI V0652/23 HHI AERODROME STANDARD INSTRUMENT DEPARTURE (SID) AMENDMENT GECKO TWO DEPARTURE ...V/V TABLE: 300-1 WITH MIN CLIMB OF 357 FT/NM TO 3600: 60 KTS/357 FPM, 120 KTS/714 FPM, 180 KTS/1071 FPM, 240 KTS/1428 FPM, 300 KTS/1785 FPM, 360 KTS/2142 FPM... OR STD WITH MIN CLIMB OF 473 FT/NM TO 2900: 60 KTS/473 FPM, 120 KTS/946 FPM, 180 KTS/1419 FPM, 240 KTS/1892 FPM, 300 KTS/2365 FPM, 360 KTS/2838 FPM. 2312211912-2501312359
12/21/231906Z !PHHI V0651/23 HHI AERODROME STANDARD INSTRUMENT DEPARTURE (SID) AMENDMENT KOKO HEAD TWO DEPARTURE ...V/V TABLE: 300-1 WITH MIN CLIMB OF 357 FT/NM TO 3600: 60 KTS/357 FPM, 120 KTS/714 FPM, 180 KTS/1071 FPM, 240 KTS/1428 FPM, 300 KTS/1785 FPM, 360 KTS/2142 FPM... OR STD WITH MIN CLIMB OF 473 FT/NM TO 2900: 60 KTS/473 FPM, 120 KTS/946 FPM, 180 KTS/1419 FPM, 240 KTS/1892 FPM, 300 KTS/2365 FPM, 360 KTS/2838 FPM. 2312211906-2501312359
Yes
MON-SAT ALL
OT BY NOTAM.
U S ARMY
WHEELER AAF SCHOFLD BARRACKS
WAHIAWA, HI
AFLD COMMANDER
WHEELER AAF, SCHOFIELD BARRACKS
WAHIAWA, HI
Phone: 808-656-2656
HONOLULU FSS (HNL)
Toll Free: 1-800-WX-BRIEF
PHHI
--
ACTVT MIRL RWY 06/24 - CTAF.
N/A
ROTG BCN 1/8 NM NORTH OF ATCT.
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Minor
Minor
None
None
Cargo Handling

Runway 06/24

5608 ft. x 100 ft.

ASPH
NONE
MED
47 /F/A/W/T
--
--
--
--
  Runway 06 Runway 24
True Heading 68°248°
Traffic Pattern Right Right
Markings
Markings Condition
Latitude 21° 28' 43"N 21° 29' 03"N
Longitude 158° 02' 44"W 158° 01' 49"W
Elevation 820' 843'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1ALL ACFT ARR FM N AFTER 1800 WILL CROSS ARPT AT 2500 FT ENTER TFC FM THE S.
A110-10EXTREMELY NOISE SENSITIVE AREA; AVOID OVERFLIGHT COMMUNITIES SURROUNDING WHEELER AFB.
A110-11CAUTION - EXTREME CAUTION SWEEPER ON RUNWAY M-F 1500-1700Z.
A110-12HILLCLIMBER APRON RESTRICTED TO UNMANNED SHADOW(RQ-7)OPERATIONS CONDUCTED BETWEEN 140 FT AND 500 FT FROM RWY CENTERLINE WITH 4 SETS OF 4 FT NET BARRIERS MARKED WITH OBSTRUCTION LIGHTS.
A110-13CAUTION: USE CTN ON TXY A DUE TO NO TWY EDGE LIGHTS INSTLD. ALL AIRFIELD MARKINGS ARE EXTREMELY FADED ON ALL APNS AND TWYS.
A110-14REMARKS/MISC: AUTO WX OBSN, HUMAN BACKUP AVBL H24. HUMAN WX OBSN VIEW BY BLDG. W THRU NE (250-060 DEGREES). VIS EVALUATION IS LTD TO 1/6 TO 1/4 MILE IN THIS SCTR. WX SVCS OPR H24. 2 HR PN RQRD FOR TIMELY BRIEF.
A110-15NO TSNT FIXED-WING ACFT ON TWY A THRU F. SEE AP3 FOR ADDNL RESTRICTIONS.
A110-16CAUTION: BLUE TWY EDGE REFLECTORS INSTLD ON TWY A NORTH OF RWY AND ON TWY J ADJ TO SOUTH APN.
A110-17SERVICE: FUEL - F24, JAA, 1730-0845Z M-F, OT BY NOTAM.
A110-18WHEELER OPS OPR 1730-0900Z MON-FRI EXC HOL AND WKEND; OT BY NOTAM.
A110-19CAUTION: USE CTN WHEN TAXIING ON TWY A; DO NOT TAXI BHND ACFT IN PSN AND HOLD ON TWY B, C, D, E, F DUE TO RDCD ROTOR/WINGTIP CLNC AVBL.
A110-20LED LGTS INSTLD ON RWY AND ALL TWYS.
A110-21CAUTION: MULT TREE OBSTN HAZARD PENETRATION RWY 24 40:1 APCH CLNC SFC SLOPE OUT TO 6000 FT (EAST SIDE).
A110-4EXTV COPTER TFC INVOF ARPT.
A110-5PRACTICE APCHS BY NON-TENANT ACFT RSTD AND APVD CONTINGENT UPON TENANT ACFT ACTIVITY HRS OF DAY AND ETC.
A110-7PPR FOR FULL STOP LDG; PARKING & FOR NON-TENANT ACFT USE OF WHEELER AAF CTC OPS C808-656-1282 V456-1282.
A110-8NO TRANSIENT ACFT SVC AVBL.
A110-9NIGHT VISION GOGGLE TRAINING A311 500 FT & BLO FM 1 HR AFTER SS THRU 1 HR BEFORE SR.
WHEELER AAF (ICAO: PHHI, IATA: HHI) is a private airport located in WAHIAWA, HI.
