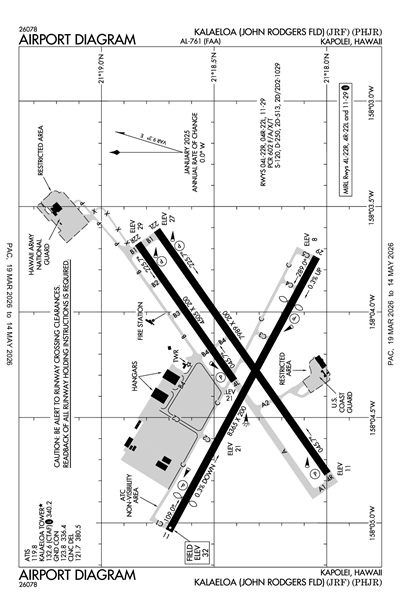

KALAELOA (JOHN RODGERS FLD) - Airport Diagram

PHJR

ICAO PHJRIATA JRFLocal JRF

KALAELOA (JOHN RODGERS FLD)

PublicPUB

2 miles S of KAPOLEI, HI, US

View on Map

Status

Operational

Coordinates

21° 18' 26"N 158° 04' 14"W

Elevation

32' MSL

Pattern Alt

1032' MSL

Mag Variation

9°E

Declination

11°E

Fuel

JET A, JET A-1, 100LL

FSS

HONOLULU (HNL)

Sectional

HAWAIIAN ISLANDS

ARTCC

HONOLULU CONTROL FACILITY (ZHN)

Data Effective

8/6/26-9/3/26

PHJR VFR

6:53 AM HST RAW

Clear

Viz

10sm

Temp

78°F

Dew

70°F

Pres

29.98"Hg

Wind

Calm

RMK

AO2 SLP159 T02560211 $

METAR PHJR 231653Z 00000KT 10SM CLR 26/21 A2998 RMK AO2 SLP159 T02560211 $

Add Your Business

PHJR FBOs

Promote Listing

Million Air Honolulu

UNICOM: 128.825

Phone: (808) 490-2400

0 Reviews (Read | Sign In To Write)

World Fuel

As of 8/18	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	8.94
Full Serve	11.51	8.35	8.48

Fuel Notes

Prices include tax

Your Information

Business

Weather and Advisory

ATIS	119.8
ASOS	119.8
(808) 752-3876

Common

CTAF	132.6
WHEN ATCT CLSD ACTVT MIRL RWY 04R/22L; MIRL RWY 04L/22R; MIRL RWY 11/29; TWY LIGHTS - CTAF. PAPI RWYS 04L, 04R, 11, 22L, 22R, & 29 OPER CONSLY.

Clearance

Clearance Delivery

121.7

Ground

KALAELOA GROUND	123.8
0600-2200

Tower

KALAELOA TOWER	132.6
0600-2200

Approach

HCF APPROACH APPROACH

118.3

Departure

HCF APPROACH DEPARTURE

118.3

Emergency

121.5

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

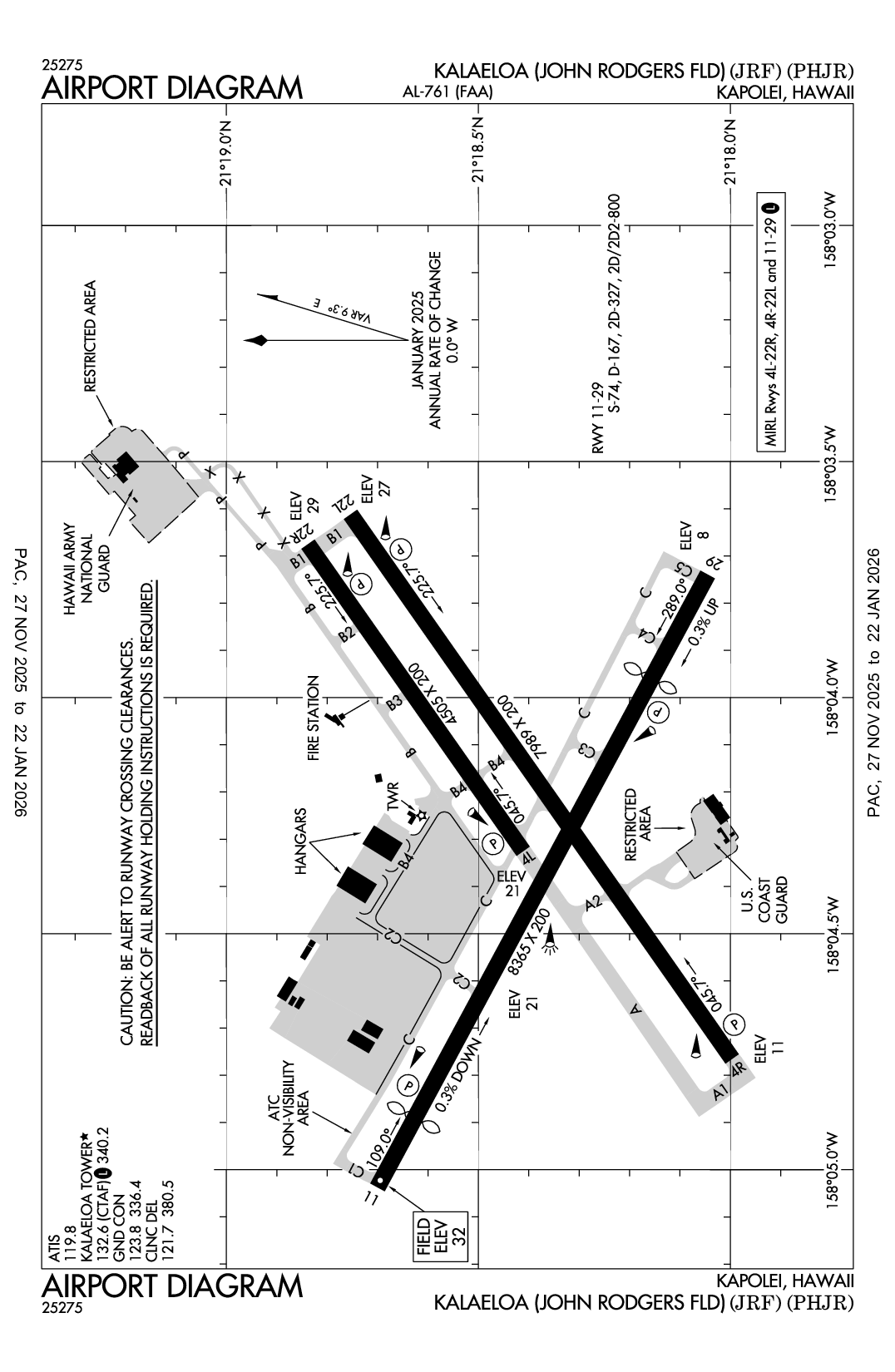

AIRPORT DIAGRAM

Airport Minimums

Departure Procedures

JELIE ONE (RNAV)

Instrument Approach

Terminal Area Forecast

PHJR

RAW

Reported

Sun, 8/23 5:23 AM HST

Valid

Sun, 8/23 5:00 AM HST - Mon, 8/24 2:00 AM HST

VFR

5:00 AM HST - 10:00 AM HST

Few 3,500'

Viz

6sm

Wind

060° 7kts

VFR

10:00 AM HST - 7:00 PM HST

Scattered 3,500'
Scattered 2,000'

Viz

6sm

Wind

050° 14kts

Gusts 22kts

VFR

7:00 PM HST - 2:00 AM HST

Few 3,500'

Viz

6sm

Wind

050° 9kts

TAF PHJR 231523Z 2315/2412 06007KT P6SM FEW035
FM232000 05014G22KT P6SM SCT020 SCT035
FM240500 05009KT P6SM FEW035

PHJR

Effective	Expires	Category	NOTAM
Domestic
8/28/26 1800Z	8/28/26 2359Z		!JRF 08/181 JRF TWY B3 BTN RWY 04L/22R AND TWY B CLSD 2608281800-2608282359
8/28/26 1800Z	8/28/26 2359Z		!JRF 08/180 JRF TWY B2 BTN RWY 04L/22R AND TWY B CLSD 2608281800-2608282359
8/28/26 1800Z	8/28/26 2359Z	Runway	!JRF 08/179 JRF RWY 04L/22R CLSD 2608281800-2608282359
8/27/26 1800Z	8/27/26 2359Z		!JRF 08/178 JRF TWY B3 BTN RWY 04L/22R AND TWY B CLSD 2608271800-2608272359
8/27/26 1800Z	8/27/26 2359Z		!JRF 08/177 JRF TWY B2 BTN RWY 04L/22R AND TWY B CLSD 2608271800-2608272359
8/27/26 1800Z	8/27/26 2359Z	Runway	!JRF 08/176 JRF RWY 04L/22R CLSD 2608271800-2608272359
8/26/26 1800Z	8/26/26 2359Z		!JRF 08/175 JRF TWY B3 BTN RWY 04L/22R AND TWY B CLSD 2608261800-2608262359
8/26/26 1800Z	8/26/26 2359Z		!JRF 08/174 JRF TWY B2 BTN RWY 04L/22R AND TWY B CLSD 2608261800-2608262359
8/26/26 1800Z	8/26/26 2359Z	Runway	!JRF 08/173 JRF RWY 04L/22R CLSD 2608261800-2608262359
8/25/26 1800Z	8/25/26 2359Z		!JRF 08/172 JRF TWY B3 BTN RWY 04L/22R AND TWY B CLSD 2608251800-2608252359
8/25/26 1800Z	8/25/26 2359Z		!JRF 08/171 JRF TWY B2 BTN RWY 04L/22R AND TWY B CLSD 2608251800-2608252359
8/25/26 1800Z	8/25/26 2359Z	Runway	!JRF 08/170 JRF RWY 04L/22R CLSD 2608251800-2608252359
8/24/26 1800Z	8/24/26 2359Z		!JRF 08/169 JRF TWY B3 BTN RWY 04L/22R AND TWY B CLSD 2608241800-2608242359
8/24/26 1800Z	8/24/26 2359Z		!JRF 08/168 JRF TWY B2 BTN RWY 04L/22R AND TWY B CLSD 2608241800-2608242359
8/24/26 1800Z	8/24/26 2359Z	Runway	!JRF 08/167 JRF RWY 04L/22R CLSD 2608241800-2608242359
8/23/26 0800Z	8/23/26 1600Z		!JRF 08/186 JRF TWY B4 BTN RWY 04R/22L AND TWY B CLSD 2608230800-2608231600
8/23/26 0800Z	8/23/26 1600Z		!JRF 08/185 JRF TWY B3 BTN RWY 04L/22R AND TWY B CLSD 2608230800-2608231600
8/23/26 0800Z	8/23/26 1600Z		!JRF 08/184 JRF TWY B2 BTN RWY 04L/22R AND TWY B CLSD 2608230800-2608231600
8/23/26 0800Z	8/23/26 1600Z		!JRF 08/183 JRF TWY B BTN TWY B1 AND TWY C CLSD 2608230800-2608231600
8/23/26 0800Z	8/23/26 1600Z	Runway	!JRF 08/182 JRF RWY 04L/22R CLSD 2608230800-2608231600
8/23/26 0600Z	8/23/26 0700Z		!JRF 08/162 JRF AIRSPACE PYROTECHNIC DEMONSTRATION WI AN AREA DEFINED AS .01NM RADIUS OF HNL281010.2 SFC-600FT AGL 2608230600-2608230700
8/22/26 1700Z	8/23/26 0030Z		!JRF 08/166 JRF TWY B3 BTN RWY 04L/22R AND TWY B CLSD 2608221700-2608230030
8/22/26 1700Z	8/23/26 0030Z		!JRF 08/165 JRF TWY B2 BTN RWY 04L/22R AND TWY B CLSD 2608221700-2608230030
8/22/26 1700Z	8/23/26 0030Z	Runway	!JRF 08/164 JRF RWY 04L/22R CLSD 2608221700-2608230030
8/16/26 1640Z	8/31/26 1540Z		!JRF 08/128 JRF OBST TOWER LGT (ASR 1269036) 212758.30N1580008.00W (9.7NM NNE JRF) 833.7FT (71.9FT AGL) U/S 2608161640-2608311540
8/2/26 1725Z	12/30/26 0400Z		!JRF 08/002 JRF TWY ALL WIP MAINT 2608021725-2612300400
8/1/26 1800Z	12/29/26 1800Z		!JRF 07/092 JRF OBST CRANE (ASN 2026-AWP-8382-OE) 211955N1580439W (1.7NM NNW JRF) 251FT (185FT AGL) FLAGGED AND LGTD 2608011800-2612291800
7/3/26 0222Z	1/1/27 0400Z	Runway	!JRF 07/004 JRF RWY 04L/22R REDL U/S 2607030222-2701010400
1/4/26 1745Z	12/31/26 1000Z		!JRF 01/008 JRF TWY ALL EDGE LGT NOT STD 2601041745-2612311000
1/4/26 1745Z	12/31/26 1000Z	Runway	!JRF 01/007 JRF RWY 11/29 REDL NOT STD 2601041745-2612311000
1/4/26 1708Z	12/31/26 1000Z	Runway	!JRF 01/004 JRF RWY 11/29 E 1090FT CLSD. DECLARED DIST: RWY 11 TORA 4910FT TODA 4910FT ASDA 4910FT LDA 3910FT. RWY 29 TORA 3910FT TODA 3910FT ASDA 3910FT LDA 0FT. 2601041708-2612311000
12/30/25 1125Z	12/31/26 1000Z	Runway	!JRF 12/043 JRF RWY 22R DIST REMAINING SIGN LGT U/S 2512301125-2612311000
12/30/25 1000Z	12/31/26 1000Z		!JRF 12/048 JRF TWY C3 BTN RWY 11/29 AND TWY C CLSD 2512301000-2612311000
12/30/25 1000Z	12/31/26 1000Z		!JRF 12/046 JRF TWY ALL TWY DIRECTION SIGN NOT STD 2512301000-2612311000
12/30/25 1000Z	12/31/26 1000Z		!JRF 12/045 JRF TWY ALL LOCATION SIGN NOT STD 2512301000-2612311000
12/29/25 0400Z	12/31/26 1710Z	Runway	!JRF 12/037 JRF RWY 11/29 CLSD DLY SS-SR 2512290400-2612311710
12/29/25 0006Z	12/31/26 1800Z		!JRF 12/059 JRF APRON TXL C2 DIRECTION MARKINGS NOT STD 2512290006-2612311800
12/29/25 0005Z	12/31/26 1800Z		!JRF 12/058 JRF TWY C2 DIRECTION MARKINGS BTN RWY 11/29 AND TWY C NOT STD 2512290005-2612311800
12/29/25 0004Z	12/31/26 1800Z		!JRF 12/057 JRF TWY B1 DIRECTION MARKINGS BTN APCH END RWY 22R AND TWY B NOT STD 2512290004-2612311800
12/29/25 0000Z	12/31/26 1800Z		!JRF 12/056 JRF TWY B1 DIRECTION MARKINGS BTN APCH END RWY 22L AND APCH END RWY 22R NOT STD 2512290000-2612311800
12/28/25 2309Z	1/1/27 0300Z		!JRF 12/055 JRF AD AP CLSD TO LDG AND TKOF EXC ACFT WINGSPAN LESS THAN 214FT 2512282309-2701010300
12/28/25 2308Z	1/1/27 0300Z		!JRF 12/054 JRF AD AP ALL SFC WIP MAINT 2512282308-2701010300
12/28/25 2221Z	1/1/27 0800Z		!JRF 12/053 JRF AD AP CLSD TO V-22 VTOL ACFT 2512282221-2701010800
12/28/25 2209Z	1/1/27 0300Z	Runway	!JRF 12/052 JRF RWY 04R CLSD TO ACFT WINGSPAN MORE THAN 118FT EXC 24HR PPR 808-836-6434 AND UNITED STATES COAST GUARD ACFT OR EMERG ACFT 2512282209-2701010300
12/28/25 1240Z	12/31/26 1000Z		!JRF 12/050 JRF TWY C5 BTN APCH END RWY 29 AND TWY C CLSD 2512281240-2612311000
12/28/25 1235Z	12/31/26 1000Z		!JRF 12/049 JRF TWY C4 BTN RWY 11/29 AND TWY C CLSD 2512281235-2612311000
12/28/25 1230Z	12/31/26 1000Z		!JRF 12/047 JRF TWY C BTN RWY 04R/22L AND TWY C5 CLSD 2512281230-2612311000
12/28/25 1125Z	12/31/26 1800Z	Runway	!JRF 12/044 JRF RWY 11 DIST REMAINING SIGN LGT U/S 2512281125-2612311800
12/28/25 1120Z	12/31/26 1800Z	Runway	!JRF 12/042 JRF RWY 04L DIST REMAINING SIGN LGT U/S 2512281120-2612311800
12/28/25 1115Z	12/31/26 1800Z	Runway	!JRF 12/041 JRF RWY 22L DIST REMAINING SIGN LGT U/S 2512281115-2612311800
12/28/25 1115Z	12/31/26 1800Z	Runway	!JRF 12/040 JRF RWY 04R DIST REMAINING SIGN LGT U/S 2512281115-2612311800

ATC Tower

Yes

Attendance

0630-1430

Owner

HAWAII STATE AIRPORTS DIVISION
400 RODGERS BLVD, SUITE 700
HONOLULU, HI 96819
Phone: 808-838-8600

Manager

MALCOM SMITH
300 RODGERS BLVD #12
HONOLULU, HI 96819
Phone: 808-836-6533

FSS

HONOLULU FSS (HNL)
Toll Free: 1-800-WX-BRIEF

NOTAM

JRF

Light Schedule

Lights

WHEN ATCT CLSD ACTVT MIRL RWY 04R/22L; MIRL RWY 04L/22R; MIRL RWY 11/29; TWY LIGHTS - CTAF. PAPI RWYS 04L, 04R, 11, 22L, 22R, & 29 OPER CONSLY.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Tie-Down

Int'l Operations

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Charter Service
Pilot Instruction
Aircraft Rental
Annual Surveying

Runway 04L/22R

Dimensions

4505 ft. x 200 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

120,000lbs

Double Wheel

250,000lbs

Double Tandem

513,000lbs

Dual Dbl Tand

1,029,000lbs

	Runway 04L	Runway 22R
True Heading	55°	235°
Traffic Pattern
Markings	BSC	BSC
Markings Condition	FAIR	FAIR
Latitude	21° 18' 25"N	21° 18' 50"N
Longitude	158° 04' 19"W	158° 03' 40"W
Elevation	21'	29'
Threshold Crossing Height	51 ft. AGL	57 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 04R/22L

Dimensions

7989 ft. x 200 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

120,000lbs

Double Wheel

250,000lbs

Double Tandem

513,000lbs

Dual Dbl Tand

1,029,000lbs

	Runway 04R	Runway 22L
True Heading	55°	235°
Traffic Pattern
Markings	PIR	BSC
Markings Condition	FAIR	FAIR
Latitude	21° 17' 60"N	21° 18' 45"N
Longitude	158° 04' 46"W	158° 03' 37"W
Elevation	11'	27'
Threshold Crossing Height	55 ft. AGL	53 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 11/29

Dimensions

8365 ft. x 200 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

120,000lbs

Double Wheel

250,000lbs

Double Tandem

513,000lbs

Dual Dbl Tand

1,029,000lbs

	Runway 11	Runway 29
True Heading	118°	298°
Traffic Pattern	Left
Markings	BSC	BSC
Markings Condition	FAIR	FAIR
Latitude	21° 18' 42"N	21° 18' 03"N
Longitude	158° 05' 02"W	158° 03' 44"W
Elevation	32'	8'
Threshold Crossing Height	48 ft. AGL	59 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-1	POTENTIAL HYDROPLANING ALL ACFT DUE STANDING WATER AT INTXN RY 04R AND RY 11.
A110-10	TSNT ACFT CTC FBO FOR FUEL 808-490-2400.
A110-11	CTN WAKE TURB FROM JET ACFT LDG AND DEPARTING RWY 04R.
A110-5	OCNL BIRD HAZ APCH END RY 04L AND RY 04R.
A110-6	MILITARY HELICOPTER OPNS ON & INVOF ARPT DUE TO USCG MILITARY HELIPAD NEAR RY 04R.
A110-8	AVOID OVERFLIGHT REFINERIES WEST OF ARPT, GASEOUS EXHAUST PLUMES AND FLAMES MAY RISE TO 267 FT AGL WITHOUT WARNING.
A110-9	NAVAIR 0800 R-14 NATOPS US NAVY AIRCRAFT FIREFIGHTERS AND RESCUE MANUAL, CATEGORY II AIRFIELD (ARFF INDEX B EQUIVALENT).
A23-11	LARGE ACFT REQUESTING RWY 11 CAN EXPECT RIGHT TRAFFIC.
A38-11/29	GROSS WT (IN THSDS) SINGLE-TANDEM: 189.
A39-04L/22R	PCR VALUE: 602/F/A/X/T
A39-04R/22L	PCR VALUE: 602/F/A/X/T
A39-11/29	PCR VALUE: 602/F/A/X/T
A43-04L	OTS INDEFLY.
A43-04R	OTS INDEFLY.
A43-11	OTS INDEFLY.
A43-22L	OTS INDEFLY.
A43-22R	OTS INDEFLY.
A43-29	OTS INDEFLY.
A81-APT	WHEN ATCT CLSD ACTVT MIRL RWY 04R/22L; MIRL RWY 04L/22R; MIRL RWY 11/29; TWY LIGHTS - CTAF. PAPI RWYS 04L, 04R, 11, 22L, 22R, & 29 OPER CONSLY.
E147	SMALL ACFT 800 FT, LARGE ACFT 1000 FT.

KALAELOA (JOHN RODGERS FLD) (ICAO: PHJR, IATA: JRF) is a public airport located in KAPOLEI, HI, US.
