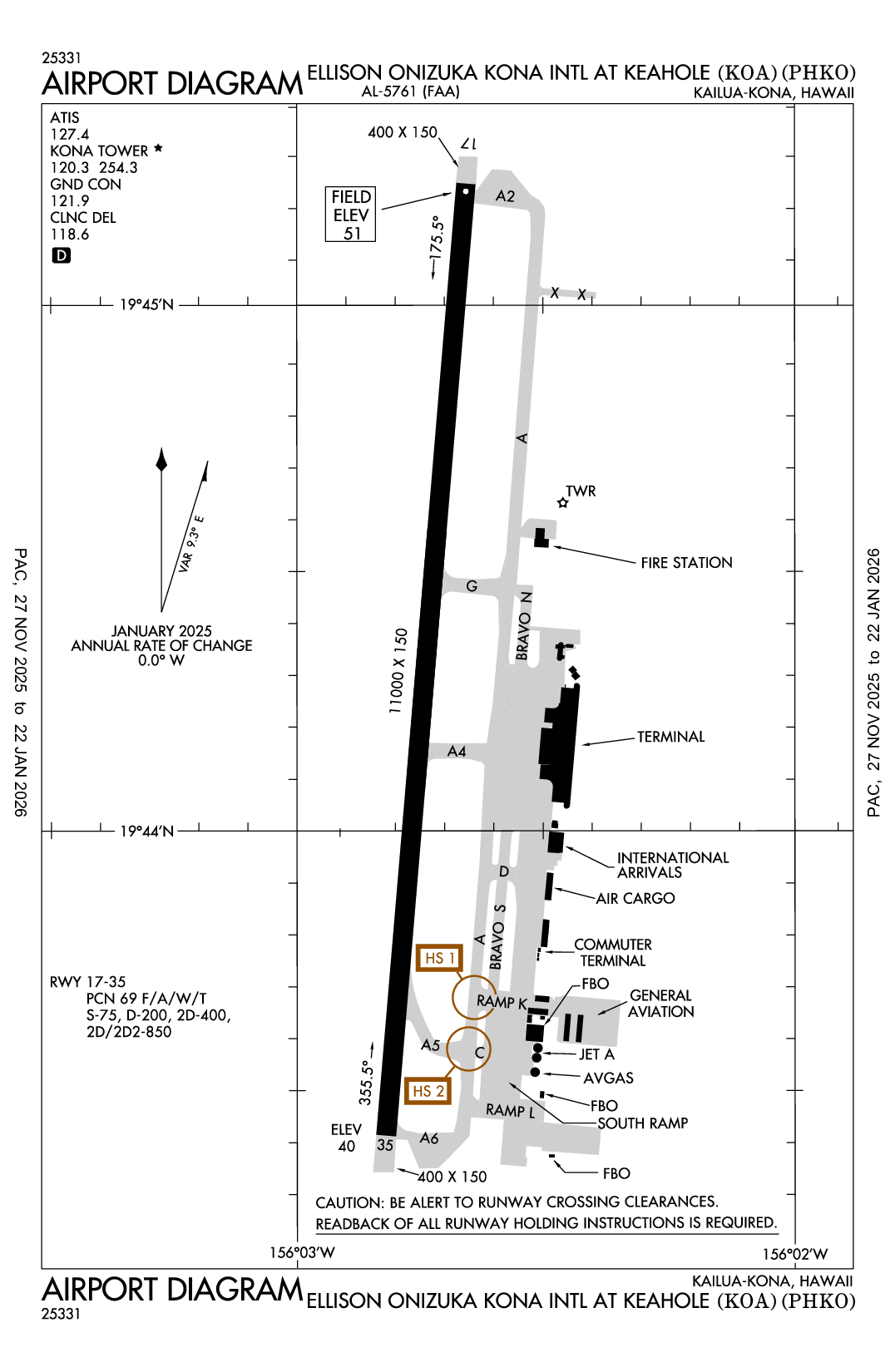

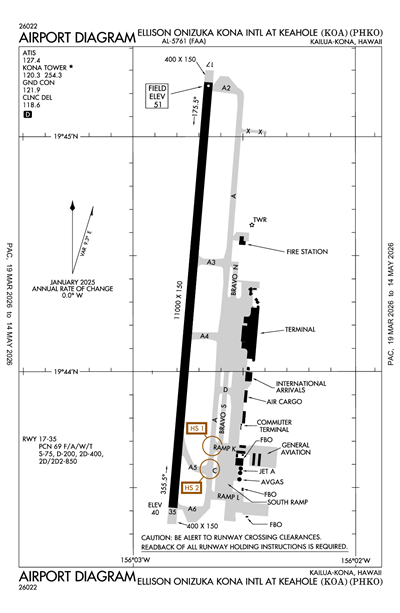

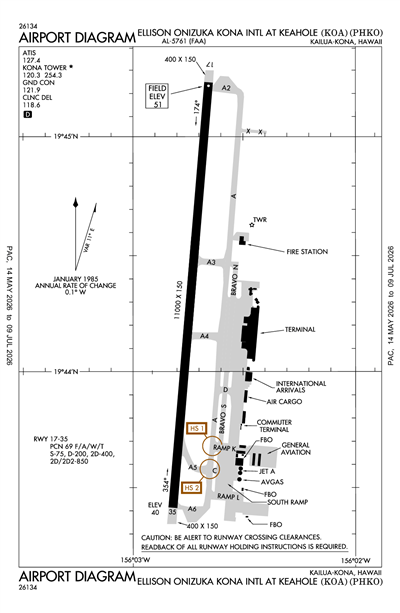

ELLISON ONIZUKA KONA INTL AT KEAHOLE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PHKO
ELLISON ONIZUKA KONA INTL AT KEAHOLE
PublicPUB

6 miles NW of KAILUA/KONA, HI
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
19° 44' 20"N 156° 02' 44"W
47' MSL
1047' MSL
11E
Jet A, 100
HONOLULU (HNL)
HAWAIIAN ISLANDS
HONOLULU CONTROL FACILITY (ZHN)
10/7/21-11/4/21
PHKO VFR
6:53 PM HST
Broken 5,500'
Scattered 3,500'
10sm
80°F
69°F
30.02"Hg
180° 6kts
AO2 SLP163 T02670206
PHKO 190453Z 18006KT 10SM SCT035 BKN055 27/21 A3002 RMK AO2 SLP163 T02670206

PHKO FBOs, Flight Schools and Ground Support

Air Service Hawaii
Freq: 128.95
Phone: (808) 334-0699
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 10/8
  100LL Jet A Jet A+ Mogas UL94
SS
FS 8.60 5.28
Signature Flight Support
Freq: 130.8
Phone: (808) 329-4682
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 10/14
  100LL Jet A Jet A+ Mogas UL94
SS
FS 5.56

PHKO Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

PHKO Hotels

No hotels are listed for this airport.

PHKO Restaurants

No restaurants are listed for this airport.

PHKO Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 120.3

ATIS

ATIS
127.4

ASOS

ASOS
808-329-0412
127.4

Clearance Delivery

CD/P
118.6

Emergency

EMERG
121.5

Ground

GND/P
121.9

Tower

LCL/P
120.3

Terminal Area Forecast

PHKO
Mon, 10/18 1:37 PM HST
Mon, 10/18 2:00 PM HST - Tue, 10/19 2:00 PM HST
VFR
2:00 PM HST - 7:00 PM HST
Broken 5,000'
Scattered 4,000'
> 6sm
220° 10kts
VFR
7:00 PM HST - 12:00 AM HST
Broken 5,000'
Scattered 3,500'
> 6sm
140° 6kts
VFR
12:00 AM HST - 10:00 AM HST
Few 5,000'
> 6sm
100° 6kts
VFR
10:00 AM HST - 2:00 PM HST
Scattered 5,000'
Few 3,500'
> 6sm
240° 8kts
PHKO 182337Z 1900/1924 22010KT P6SM SCT040 BKN050
   FM190500 14006KT P6SM SCT035 BKN050
   FM191000 10006KT P6SM FEW050
   FM192000 24008KT P6SM FEW035 SCT050
PHKO
Domestic
10/22/210900Z !KOA 10/081 KOA RWY 17/35 CLSD 2110220900-2110221330
10/21/211330Z !KOA 10/087 KOA TWY A BTN TWY G AND TWY A RUNUP PAD FOR RWY 17 CLSD 2110211330-2110211900
10/21/210900Z !KOA 10/080 KOA RWY 17/35 CLSD 2110210900-2110211330
10/20/211330Z !KOA 10/086 KOA TWY A BTN TWY G AND TWY A RUNUP PAD FOR RWY 17 CLSD 2110201330-2110201900
10/20/210900Z !KOA 10/095 KOA RWY 35 PAPI U/S 2110200900-2110201330
10/20/210900Z !KOA 10/094 KOA RWY 17 PAPI U/S 2110200900-2110201330
10/20/210900Z !KOA 10/093 KOA RWY 17 ALS U/S 2110200900-2110201330
10/20/210900Z !KOA 10/092 KOA NAV ILS RWY 17 U/S 2110200900-2110201330
10/20/210900Z !KOA 10/079 KOA RWY 17/35 CLSD 2110200900-2110201330
10/19/211600Z !KOA 10/083 KOA TWY ALL WIP 2110191600-2110192200
10/19/211330Z !KOA 10/085 KOA TWY A BTN TWY G AND TWY A RUNUP PAD FOR RWY 17 CLSD 2110191330-2110191900
10/19/210900Z !KOA 10/091 KOA RWY 35 PAPI U/S 2110190900-2110191330
10/19/210900Z !KOA 10/090 KOA RWY 17 PAPI U/S 2110190900-2110191330
10/19/210900Z !KOA 10/089 KOA RWY 17 ALS U/S 2110190900-2110191330
10/19/210900Z !KOA 10/088 KOA NAV ILS RWY 17 U/S 2110190900-2110191330
10/19/210900Z !KOA 10/078 KOA RWY 17/35 CLSD 2110190900-2110191330
8/7/212228Z !KOA 08/047 KOA OBST TOWER LGT (ASR 1217943) 194408.70N1560204.60W (0.7NM ESE KOA) 198.8FT (105.0FT AGL) U/S 2108072228-2110300400
11/25/202038Z !KOA 11/013 KOA TWY A, C, H, G CL AND SFC MARKING NOT STD 2011252038-PERM
FDC
7/11/211300Z !FDC 1/6461 KOA IAP ELLISON ONIZUKA KONA INTL AT KEAHOLE, KAILUA/KONA, HI.
VOR OR TACAN RWY 17, ORIG-D...
S-17 CAT A/B VISIBILITY 1. EXCEPT WHEN ATCT IS OPEN. TEMPORARY CONST EQUIP UP TO 74 MSL BEGINNING 1.16NM S OF RWY 17 (2020-AWP-4358/4359/4360/4361-NRA).
2107111300-2203051347EST
7/11/211300Z !FDC 1/6460 KOA IAP ELLISON ONIZUKA KONA INTL AT KEAHOLE, KAILUA/KONA, HI.
RNAV (GPS) Y RWY 17, AMDT 1D...
LNAV CAT A/B VISIBILITY 1. EXCEPT WHEN ATCT IS OPEN. TEMPORARY CONST EQUIP UP TO 74 MSL BEGINNING 1.16NM S OF RWY 17 (2020-AWP-4358/4359/4360/4361-NRA).
2107111300-2203051347EST
7/11/211300Z !FDC 1/6457 KOA IAP ELLISON ONIZUKA KONA INTL AT KEAHOLE, KAILUA/KONA, HI.
RNAV (RNP) Z RWY 17, ORIG-B...
RNP 0.17 VISIBILITY ALL CATS 1. EXCEPT WHEN ATCT IS OPEN. TEMPORARY CONST EQUIP UP TO 74 MSL BEGINNING 1.16NM S OF RWY 17 (2020-AWP-4358/4359/4360/4361-NRA).
2107111300-2203051347EST
7/11/211300Z !FDC 1/6456 KOA IAP ELLISON ONIZUKA KONA INTL AT KEAHOLE, KAILUA/KONA, HI.
ILS OR LOC RWY 17, AMDT 2C...
S-LOC 17 VISIBILITY ALL CATS 1. S-LOC 17 VISIBILITY ALL CATS 1. DISREGARD INOP MALSR NOTE. EXCEPT WHEN ATCT IS OPEN. TEMPORARY CONST EQUIP UP TO 74 MSL BEGINNING 1.16NM S OF RWY 17 (2020-AWP-4358/4359/4360/4361-NRA).
2107111300-2203051347EST
Yes
0600-2200
HAWAII ST ARPTS DIV
HONOLULU INTL ARPT
HONOLULU, HI 96819
Phone: 808-838-8600
CHAUNCEY WONG YUEN
73-200 KUPIPI ST, KONA INTL AIRPORT AT KEAHOLE
KAILUA-KONA, HI 96740-2645
Phone: 808-327-9520
HONOLULU FSS (HNL)
Toll Free: 1-800-WX-BRIEF
KOA
--
ACTVT HIRL RY 17/35 & TWY LGTS - CTAF.
Clear-Green
Yes - Lighted
Yes
No
Tie-Down
Landing Rights Airport
NOT an Airport of Entry
19
3
0
16
0
4
None
Minor
None
None
Air Freight
Cargo Handling
Pilot Instruction
Aircraft Rental

Runway 17/35

11000 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
69 /F/A/W/T
75,000lbs
200,000lbs
400,000lbs
850,000lbs
  Runway 17 Runway 35
True Heading 185°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 19° 45' 14"N 19° 43' 25"N
Longitude 156° 02' 39"W 156° 02' 49"W
Elevation 47' 37'
Threshold Crossing Height 77 ft. AGL 71 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No No
A110-14USE MINIMUM POWER TO TAXI LANE & OUT OF PARKING SPOTS.
A110-16MIGRATORY BIRD ACTIVITY WITHIN A 5 NM RADIUS OF ARPT.
A110-17ALL WIDE-BODY AIRCRAFT CONTACT ATCT PRIOR TO ENGINE START.
A110-19DIVISION 1.1, 1.2, 1.3 EXPLOSIVES PROHIBITED. PPR FM ARPT MGR FOR TRANSPORTATION OF DIVISION 1.4 EXPLOSIVES AND HAZARDOUS MATERIAL IN AND OUT OF AIRPORT.
A110-2RAMP IMMEDIATELY IN FRONT OF OLD ATCT LIMITED TO ACFT WEIGHING 30000 LBS OR LESS.
A110-20JET ACFT ON CARGO AND SOUTH RAMP CTC ATCT PRIOR TO ENGINE START.
A110-21U.S. CUSTOMS LOCATED ON NORTH RAMP.
A110-22PUSH BACK/PULL OUT REQUIRED FROM TERMINAL PARKING POSITIONS FOR ALL ACFT, NO POWER OUT.
A110-23ITINERANT AIRCRAFT PARKING AT THE BASE OF THE OLD ATCT SHALL ENTER AND EXIT VIA TWY DELTA.
A110-24HELICOPTER OPERATIONS ON AND INVOF TWY ALPHA.
A110-25FOR CD IF UNA TO CTC ON FSS FREQ, CTC HONOLULU CONTROL FACILITY AT 808-840-6262.
A110-3TPA SMALL ACFT 800' MSL; LARGE ACFT 1500' MSL.
A110-4REQ FOUR ENG ACFT TAXI WITH OUTBOARD ENGS AT IDLE DUE NARROW TWYS.
A110-5ALL HELICOPTERS CONFINE OPNS TO PAVED AREAS.
A110-6PPR FM AMGR FOR TRANSIENT PARKING CALL 808-327-9520.

View hangar and property listings at PHKO, provided by our partner Hangar Network.

No Hangar Network listings are currently available for this airport.

ELLISON ONIZUKA KONA INTL AT KEAHOLE (ICAO: PHKO, IATA: KOA) is a public airport located in KAILUA/KONA, HI.
