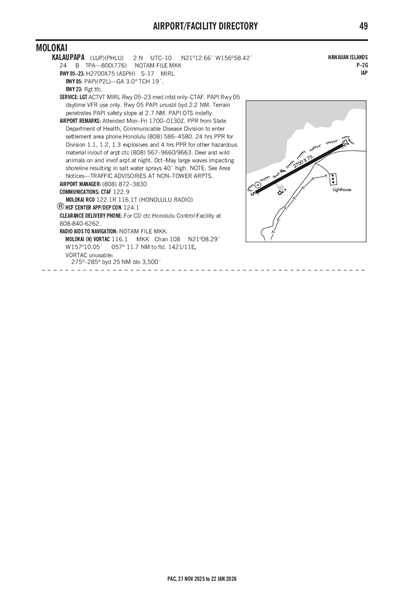

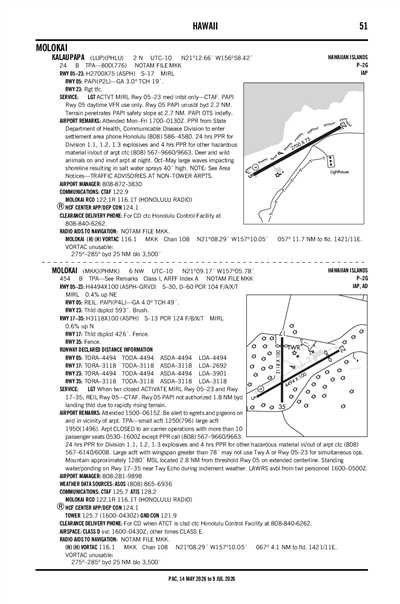

KALAUPAPA - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PHLU
ICAO PHLUIATA LUPLocal LUP
KALAUPAPA
PublicPUB

2 miles N of KALAUPAPA, HI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
21° 12' 40"N 156° 58' 25"W
Elevation
24' MSL
Pattern Alt
800' MSL
Mag Variation
10°E
Declination
11°E
Fuel
None Listed
FSS
HONOLULU (HNL)
Sectional
HAWAIIAN ISLANDS
ARTCC
HONOLULU CONTROL FACILITY (ZHN)
Data Effective
2/19/26-3/19/26
PHMK (8nm) VFR
8:54 AM HST
Broken 4,600'
Few 3,200'
10sm
71°F
66°F
29.81"Hg
170° 3kts
AO2 SLP098 T02170189 $
METAR PHMK 221854Z 17003KT 10SM FEW032 BKN046 22/19 A2981 RMK AO2 SLP098 T02170189 $
+ Add Your Business

PHLU FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT MIRL RWY 05/23 MED INTST ONLY - CTAF. PAPI RWY 05 DAYTIME VFR USE ONLY.

Center

HCF CENTER CENTER 124.1
LOW/HIGH, PRIMARY FOR AREA NE AND E OF HNL VORTAC OUT TO APPROXLY 90NM.; APCH/DEP SVC PRVDD BY HONOLULU CONTROL FACILITY (ZHN) ON FREQS 124.1/317.5 (MOUNT HALEAKALA RCAG).

FAA A/FD Pages

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

PHMK (8nm)
Sun, 2/22 7:20 AM HST
Sun, 2/22 8:00 AM HST - Mon, 2/23 8:00 AM HST
VFR
8:00 AM HST - 11:00 AM HST
Showers in vicinity
Broken 6,000'
Few 4,500'
6sm
VRB° 6kts
VFR
11:00 AM HST - 8:00 PM HST
Scattered 4,000'
Few 2,000'
6sm
350° 8kts
MVFR
8:00 PM HST - 7:00 AM HST
Showers in vicinity
Overcast 2,500'
Scattered 1,500'
6sm
VRB° 6kts
MVFR
7:00 AM HST - 8:00 AM HST
Light Showers and Rain and Mist
Overcast 2,500'
6sm
020° 10kts
TAF PHMK 221720Z 2218/2318 VRB06KT P6SM VCSH FEW045 BKN060
   FM222100 35008KT P6SM FEW020 SCT040
   FM230600 VRB06KT P6SM VCSH SCT015 OVC025
   FM231700 02010KT 6SM -SHRA BR OVC025
PHLU
EffectiveExpiresCategoryNOTAM
Domestic
1/16/26
1736Z
2/27/26
2300Z
Runway!MKK 01/010 LUP RWY 05 PAPI U/S 2601161736-2602272300
No
MON-FRI 0700-1530
HAWAII STATE AIRPORTS DIVISION
400 RODGERS BLVD SUITE 700
HONOLULU, HI 96819
Phone: 808-838-8701
MARVIN MONIZ
KAHULUI AIRPORT
KAHULUI, HI 96732
Phone: 808-872-3830
HONOLULU FSS (HNL)
Toll Free: 1-800-WX-BRIEF
MKK
--
ACTVT MIRL RWY 05/23 MED INTST ONLY - CTAF. PAPI RWY 05 DAYTIME VFR USE ONLY.
N/A
Yes - Lighted
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 05/23

2700 ft. x 75 ft.
ASPH
Good
NONE
MED

17,000lbs
--
--
--
  Runway 05 Runway 23
True Heading 61°241°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 21° 12' 33"N 21° 12' 46"N
Longitude 156° 58' 37"W 156° 58' 12"W
Elevation 24' 23'
Threshold Crossing Height 19 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P2L --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1SEE AREA NOTICES - TRAFFIC ADVISORIES AT NON-TOWER ARPTS.
A110-224 HRS PPR FOR DIVISION 1.1,1.2,1.3 EXPLOSIVES AND 4 HRS PPR FOR OTHER HAZARDOUS MATERIAL IN/OUT OF ARPT CTC 808-567-9660/9663.
A110-3PPR FM ST DEPT OF HEALTH COMMUNICABLE DISEASE DIV TO ENTER SETTLEMENT AREA PHONE HONOLULU 808-586-4580.
A110-4DEER & WILD ANIMALS ON & INVOF ARPT AT NIGHT.
A110-6OCT-MAY LARGE WAVES IMPACTING SHORELINE RESULTING IN SALT WATER SPRAYS 40 FT HIGH.
A110-8FOR CD CTC HONOLULU CONTROL FACILITY AT 808-840-6262.
A14ARPT OPNS/MAINT/ MAN/ADM/-MR. ANTONE KALILIKANE MOLOKAI (808) 567-9660.
A43-05PAPI UNUSBL BYD 2.2 NM. TERRAIN PENETRATES PAPI SAFETY SLOPE AT 2.7 NM. PAPI OTS INDEFLY.
A81-APTACTVT MIRL RWY 05/23 MED INTST ONLY - CTAF. PAPI RWY 05 DAYTIME VFR USE ONLY.
KALAUPAPA (ICAO: PHLU, IATA: LUP) is a public airport located in KALAUPAPA, HI, US.
