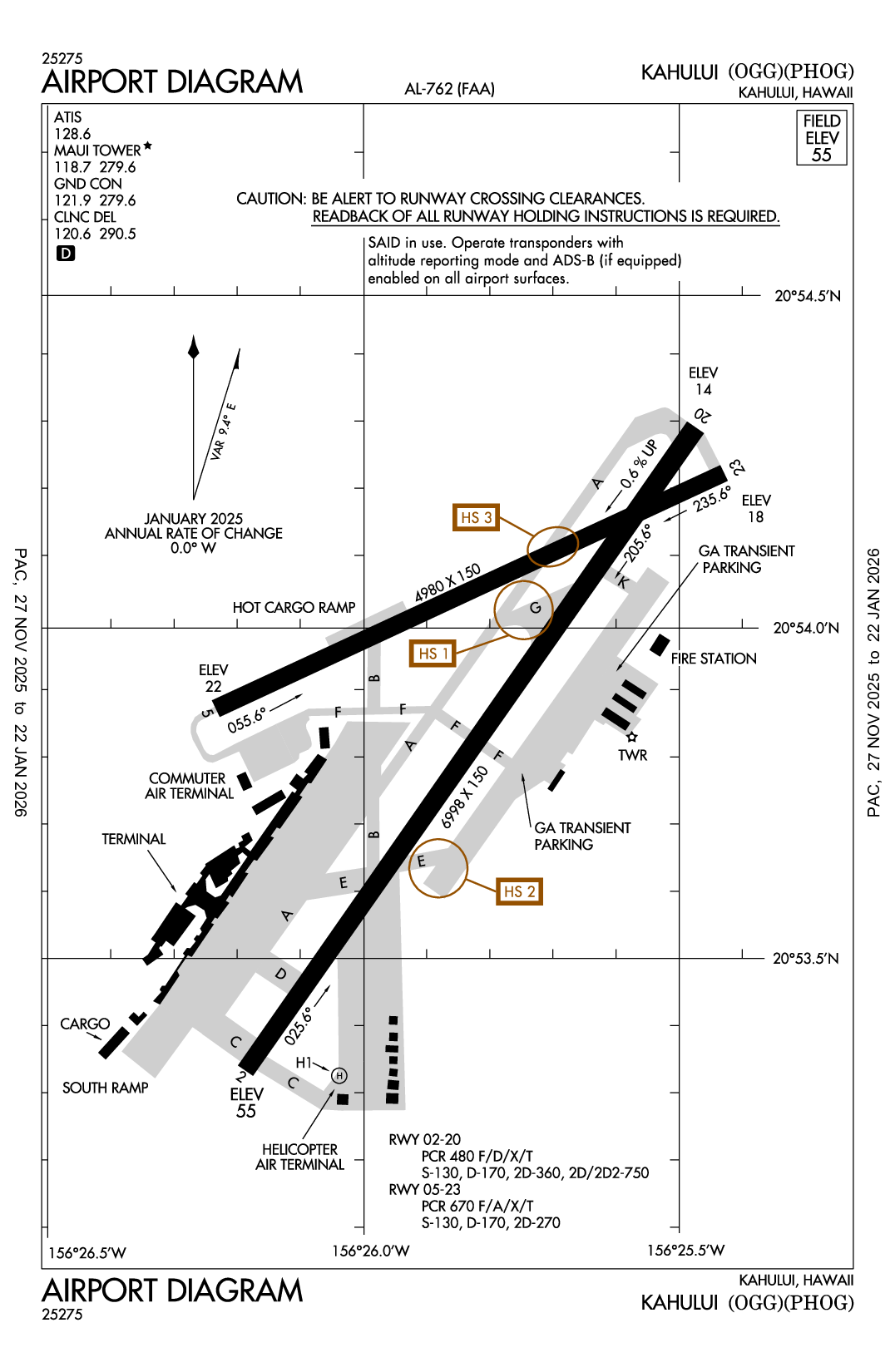

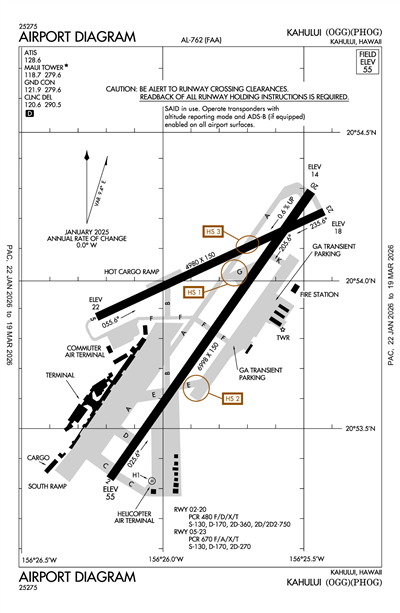

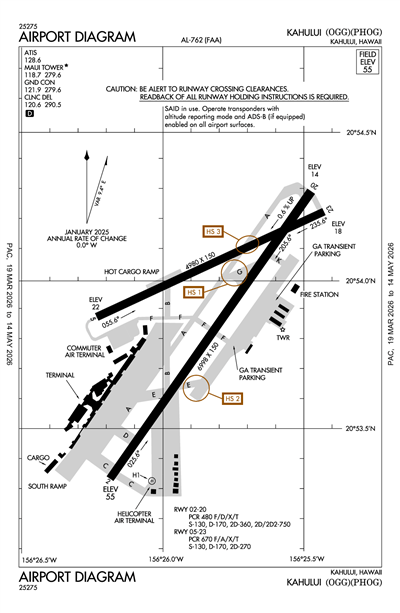

KAHULUI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PHOG
ICAO PHOGIATA OGGLocal OGG
KAHULUI
PublicPUB

3 miles E of KAHULUI, HI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
20° 53' 55"N 156° 25' 50"W
Elevation
55' MSL
Pattern Alt
1055' MSL
Mag Variation
10°E
Declination
11°E
Fuel
JET A, 100
FSS
HONOLULU (HNL)
Sectional
HAWAIIAN ISLANDS
ARTCC
HONOLULU CONTROL FACILITY (ZHN)
Data Effective
6/11/26-7/9/26
PHOG VFR
11:54 AM HST
Scattered 5,000'
Few 3,000'
10sm
85°F
67°F
29.94"Hg
050° 21kts
Gusts 31kts
AO2 PK WND 04031/2153 SLP143 T02940194 $
METAR PHOG 252154Z 05021G31KT 10SM FEW030 SCT050 29/19 A2994 RMK AO2 PK WND 04031/2153 SLP143 T02940194 $
+ Add Your Business

PHOG FBOs

Promote Listing
Clay Lacy Aviation Private Hangar
UNICOM: 122.95
Phone: (818) 989-2900
No Rating Available
0 Reviews (Read | Sign In To Write)
Promote Listing
Atlantic Aviation
UNICOM: 128.95
Phone: (808) 871-5572
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 6/9
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 11.21
Full Serve 12.81
Fuel Notes
Prices include tax
Promote Listing
Signature Aviation
UNICOM: 130.8
Phone: (808) 873-6060
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 6/19
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 11.01 11.11
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 128.6
ASOS (808) 736-4240

Common

CTAF 118.7
WHEN ATCT CLSD ACTVT MALSR RWY 02; PAPI RWY 20; PAPI RWY 05; HIRL RWY 02/20; MIRL RWY 05/23 - CTAF.
UNICOM 122.95

Clearance

Clearance Delivery 120.6

Ground

MAUI GROUND 121.9
0600-2300 (MAR-NOV) 0600-2400 (NOV-MAR)

Tower

MAUI TOWER 118.7
0600-2300 (MAR-NOV) 0600-2400 (NOV-MAR)

Approach

HCF APPROACH APPROACH 119.5
Initial Contact - SOUTH
HCF APPROACH APPROACH 120.2
Initial Contact - NORTH

Departure

HCF APPROACH DEPARTURE 119.5
Initial Contact - SOUTH
HCF APPROACH DEPARTURE 120.2
Initial Contact - NORTH

Center

HCF APPROACH CENTER 119.3
LOW/HIGH, PRIMARY FOR LANAI AREA. PRIMARY FOR AREA NE AND E OF HNL VORTAC OUT TO APPROXLY 90NM.; APCH/DEP SVC PRVDD BY HONOLULU CONTROL FACILITY (ZHN) ON FREQ 119.3 & 307.1 (MOUNT HALEAKALA RCAG) WHEN OGG TWR CLSD.

Flight Service

Flight Service 122.5
(HNL), 122.5R (PHYSICALLY LOCATED AT HALEAKALA 4HK) SERVES OGG VORTAC (115.1T) & LNY VORTAC (117.7T).

Emergency

Emergency 121.5

Other

CLASS C 119.5
SOUTH
CLASS C 120.2
NORTH

Terminal Area Forecast

PHOG
Thu, 6/25 10:59 AM HST
Thu, 6/25 11:00 AM HST - Fri, 6/26 2:00 PM HST
VFR
11:00 AM HST - 7:00 PM HST
Scattered 6,000'
Scattered 3,000'
6sm
050° 20kts
Gusts 30kts
VFR
7:00 PM HST - 12:00 AM HST
Scattered 4,000'
Few 3,000'
6sm
050° 10kts
Gusts 20kts
VFR
12:00 AM HST - 10:00 AM HST
Scattered 4,000'
Scattered 3,000'
6sm
060° 10kts
VFR
10:00 AM HST - 2:00 PM HST
Scattered 6,000'
Scattered 3,000'
6sm
050° 20kts
Gusts 30kts
TAF PHOG 252059Z 2521/2624 05020G30KT P6SM SCT030 SCT060
   FM260500 05010G20KT P6SM FEW030 SCT040
   FM261000 06010KT P6SM SCT030 SCT040
   FM262000 05020G30KT P6SM SCT030 SCT060
PHOG
EffectiveExpiresCategoryNOTAM
Domestic
6/26/26
1630Z
6/26/26
2200Z
Runway!OGG 06/043 OGG RWY 05 PAPI U/S 2606261630-2606262200
6/26/26
1630Z
6/26/26
2200Z
Runway!OGG 06/042 OGG RWY 20 PAPI U/S 2606261630-2606262200
6/25/26
1830Z
6/26/26
0130Z
!OGG 06/038 OGG SVC TAR/SSR U/S 2606251830-2606260130
6/25/26
1700Z
6/25/26
2100Z
Runway!OGG 06/041 OGG RWY 02/20 WIP GRASS CUTTING E OF RWY 02 2606251700-2606252100
6/25/26
1400Z
6/25/26
2200Z
!OGG 06/032 OGG OBST RIG (ASN UNKNOWN) 205330N1562621W (2.69NM NW APCH END RWY 02)
UNKNOWN (127FT AGL) FLAGGED 2606251400-2606252200
6/24/26
2310Z
7/22/26
2359Z
!OGG 06/040 OGG OBST WIND TURBINE LGT (ASN 2012-WTW-3608-OE) 204810N1563222W (7.6NM SW OGG) 2157FT (328FT AGL) U/S 2606242310-2607222359
6/24/26
2310Z
7/8/26
2359Z
!OGG 06/039 OGG OBST WIND TURBINE LGT (ASN 2004-AWP-5327-OE) 204851N1563302W (7.6NM SW OGG) 2858FT (298FT AGL) U/S 2606242310-2607082359
6/23/26
1233Z
!OGG 06/030 OGG COM VOR VOICE 122.5 U/S 2606231233-2701222111EST
6/22/26
1700Z
6/25/26
0400Z
!OGG 06/021 OGG AIRSPACE UAS WI AN AREA DEFINED AS 1.27NM RADIUS OF 205347N1562949W (3.1NM WSW OGG) SFC-300FT AGL DLY 1700-0400 2606221700-2606250400
6/10/26
2308Z
7/8/26
2300Z
!OGG 06/007 OGG OBST WIND TURBINE LGT (ASN 2004-AWP-5337-OE) 204814N1563240W (7.7NM SW OGG) 2278FT (298FT AGL) U/S 2606102308-2607082300
3/5/26
1700Z
9/4/26
0130Z
!OGG 03/018 OGG OBST CRANE (ASN UNKNOWN) 205314N1562758W (1.68NM W APCH END RWY 02)
UNKNOWN (110FT AGL) FLAGGED DLY 1700-0130 2603051700-2609040130
2/4/26
2011Z
!OGG 02/036 OGG TWY B BTN RWY 05/23 AND TWY F CLSD TO ACFT WINGSPAN MORE THAN 118FT 2602042011-PERM
1/30/26
2308Z
!OGG 01/339 OGG TWY F BTN APCH END RWY 05 AND TWY A CLSD TO ACFT WINGSPAN MORE THAN 118FT 2601302308-PERM
FDC
6/25/26
1700Z
!FDC 6/0105 OGG SID KAHULUI, KAHULUI, HI.
BEACH FOUR DEPARTURE...
ONOHI TWO DEPARTURE...
SWEEP TWO DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
OGG VORTAC OUT OF SERVICE. 2606251700-2607021649EST
6/25/26
1700Z
!FDC 6/0104 OGG SID KAHULUI, KAHULUI, HI.
MAUI FIVE DEPARTURE...
LOST COMMUNICATIONS: NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
OGG VORTAC OUT OF SERVICE. 2606251700-2607021649EST
6/25/26
1700Z
!FDC 6/0103 OGG IAP KAHULUI, KAHULUI, HI.
ILS Y OR LOC Y RWY 2, AMDT 1...
ILS Z OR LOC Z RWY 2, AMDT 27...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
OGG VORTAC OUT OF SERVICE. 2606251700-2607021649EST
2/4/26
1316Z
!FDC 6/0166 OGG IAP KAHULUI, KAHULUI, HI.
RNAV (GPS) RWY 20, AMDT 2A...
RNAV (GPS) RWY 23, AMDT 1A...
VOR Z OR TACAN RWY 20, AMDT 1A...
CIRCLING CAT C MDA 800/HAA 745, VIS CAT C 2 1/4. PWR LINE 444 MSL 3.2NM SE OF OGG AIRPORT (2023-AWP-1843-OE).
2602041316-2609161316EST
3/17/25
1335Z
!FDC 5/3711 OGG SID KAHULUI, KAHULUI, HI.
STACEY TWO DEPARTURE...
DEPARTURE ROUTE DESCRIPTION - TAKEOFF RUNWAY 20: CLIMB HEADING 203 DEGREES (OR ATC ASSIGNED HEADING 173 DEGREES CW 203 DEGREES): THENCE.....
ALL OTHER DATA REMAINS AS PUBLISHED. 2503171335-2703171335EST
Yes
ALL
HAWAII STATE AIRPORTS DIV
HONOLULU INTL ARPT
HONOLULU, HI 96819
Phone: 808-838-8600
MARVIN MONIZ
1 KAHULUI AIRPORT ROAD, UNIT 5
KAHULUI, HI 96732
Phone: 808-872-3808
HONOLULU FSS (HNL)
Toll Free: 1-800-WX-BRIEF
OGG
--
WHEN ATCT CLSD ACTVT MALSR RWY 02; PAPI RWY 20; PAPI RWY 05; HIRL RWY 02/20; MIRL RWY 05/23 - CTAF.
N/A
Yes
Yes
No
Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
Air Freight
Crop Dusting
Cargo Handling
Pilot Instruction
Aircraft Rental

Runway 02/20

6998 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

130,000lbs
170,000lbs
360,000lbs
750,000lbs
  Runway 02 Runway 20
True Heading 35°215°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 20° 53' 21"N 20° 54' 18"N
Longitude 156° 26' 11"W 156° 25' 28"W
Elevation 55' 14'
Threshold Crossing Height 77 ft. AGL 76 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights

Runway 05/23

4980 ft. x 150 ft.
ASPH
Good
GRVD
MED

130,000lbs
170,000lbs
270,000lbs
--
  Runway 05 Runway 23
True Heading 65°245°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 20° 53' 53"N 20° 54' 14"N
Longitude 156° 26' 14"W 156° 25' 26"W
Elevation 22' 18'
Threshold Crossing Height 40 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H1

125 ft. x 125 ft.
ASPH
Good
NONE


--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 20° 53' 20"N N/A
Longitude 156° 26' 02"W N/A
Elevation 49' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1570' LGTD TWR APRX 3 MI. W.
A110-10PPR FOR FIXED WING ACFT OPNS ON HELIPAD DURG NON-OPERATIONAL HRS CALL (808) 872-3880 5:15A-10:00P.
A110-11ACCESS TO HELIPAD FM TWY C ONLY.
A110-13DUE TO NONVISIBILITY ATCT UNABLE TO DETERMINE IF FLWG AREA IS CLEAR OF OBSTNS AND/OR TFC: PORTION OF TWY F BTN THE COMMUTER AIR TERMINAL & APCH END RY 05.
A110-14DUE TO NONVISIBILITY ATCT UNABLE TO PROVIDE ATC SVC BTN ACFT & GROUND VEHICLES ON THE COMMUTER AIR TERMINAL S OF TWY F AND THE HELICOPTER AIR TERMINAL E OF APCH END RY 02.
A110-16TSNT PARKING LCTD ON NE SECTION OF E RAMP.
A110-18RY 02/20 SINGLE-BELLY TWIN TANDEM (SBTT) GWT 460,000 LBS.
A110-224 HRS PPR FOR DIVISION 1.1,1.2,1.3 EXPLOSIVES AND 4 HRS PPR FOR OTHER HAZARDOUS CARGO IN/OUT OF ARPT; CTC (808) 872-3830 0745-1630 OTHER TIMES (808) 872-3888.
A110-20ACFT OVR 30,000 LB LDG ON RY 02/20 UNA TO TURN OFF ONTO RY 05/23 DUE TO PAVEMENT COND.
A110-21COMMUTER AIR TRML RSTRD TO PART 121 AND PART 135 OPRS ONLY. ACFT AT THE TRML SHALL CALL THE TWR ON 121.9 PRIOR TO PUSHBACK.
A110-22FOR CD WHEN ATCT IS CLSD CTC HONOLULU CONTROL FACILITY AT 808-840-6262.
A110-3RAMP AREA E SIDE RY 02 UNDER STATE AUTHORITY. FAA NOT RESPONSIBLE FOR DIRECTION & CTL GND TFC IN AREA.
A110-4MIGRATORY BIRD ACTIVITY BLO 1500 FT WI 5 NM RADIUS OF ARPT DURG AUG-MAY.
A110-5MIL HEL OPS WITH PPR RSTRD TO THE SW CORNER OF HOT CARGO APRON (HAZMAT) N OF RWY 05/23.
A110-8COMMUTER TERMINAL RAMP RESTRICTED TO ACFT 140000 LBS OR LESS.
A110-9AREA E OF APCH END RY 02 DESIGNATED AS HELICOPTER OPER AREA. NO FIXED WING ACFT MAY OPER ON HELIPAD DURG OPNL HRS SR-SS.
A14MARVIN.A.MONIZ@HAWAII.GOV
A26INDEX D ARPT; HWVR, CAN ACCOMMODATE INDEX E AS RQRD. CALL AMGR PRIOR TO ARR.
A39-02/20PCR VALUE: 480/F/D/X/T
A39-05/23PCR VALUE: 670/F/A/X/T
A43-05PAPI UNUSBL BYD 4 NM FM THR DUE TO RAPIDLY RISING TERRAIN.
A58-05+6 FT EXTNDD GND 200 FT FM THLD & 220 FT EACH SIDE CNTRLN; +32 FT LGTD WINDSOCK 0 FT FM THLD & 230 FT SE OF CNTRLN.
A58-20HIGH TREES 600 FT NW CNTRLN EXTDD RY 20.
A70-100JET A FUEL AVBL 0700-1800, OTHER TIMES BY PRIOR ARRANGEMENT WITH FBO 24 HRS, (808) 871-5572, OR (808) 873-6060. 100 OCTANE FUEL AVBL 24 HOURS SELF-SERVICE.
A81-APTWHEN ATCT CLSD ACTVT MALSR RWY 02; PAPI RWY 20; PAPI RWY 05; HIRL RWY 02/20; MIRL RWY 05/23 - CTAF.
KAHULUI (ICAO: PHOG, IATA: OGG) is a public airport located in KAHULUI, HI, US.
