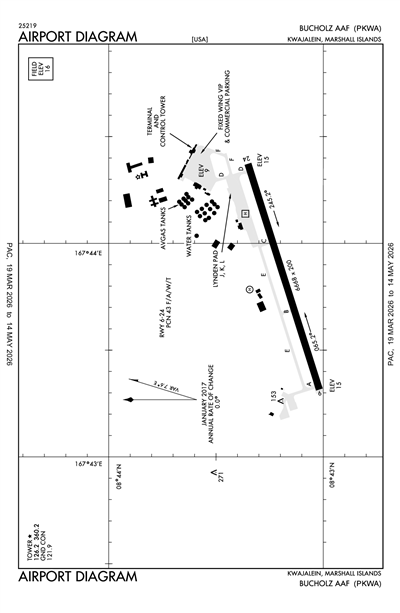

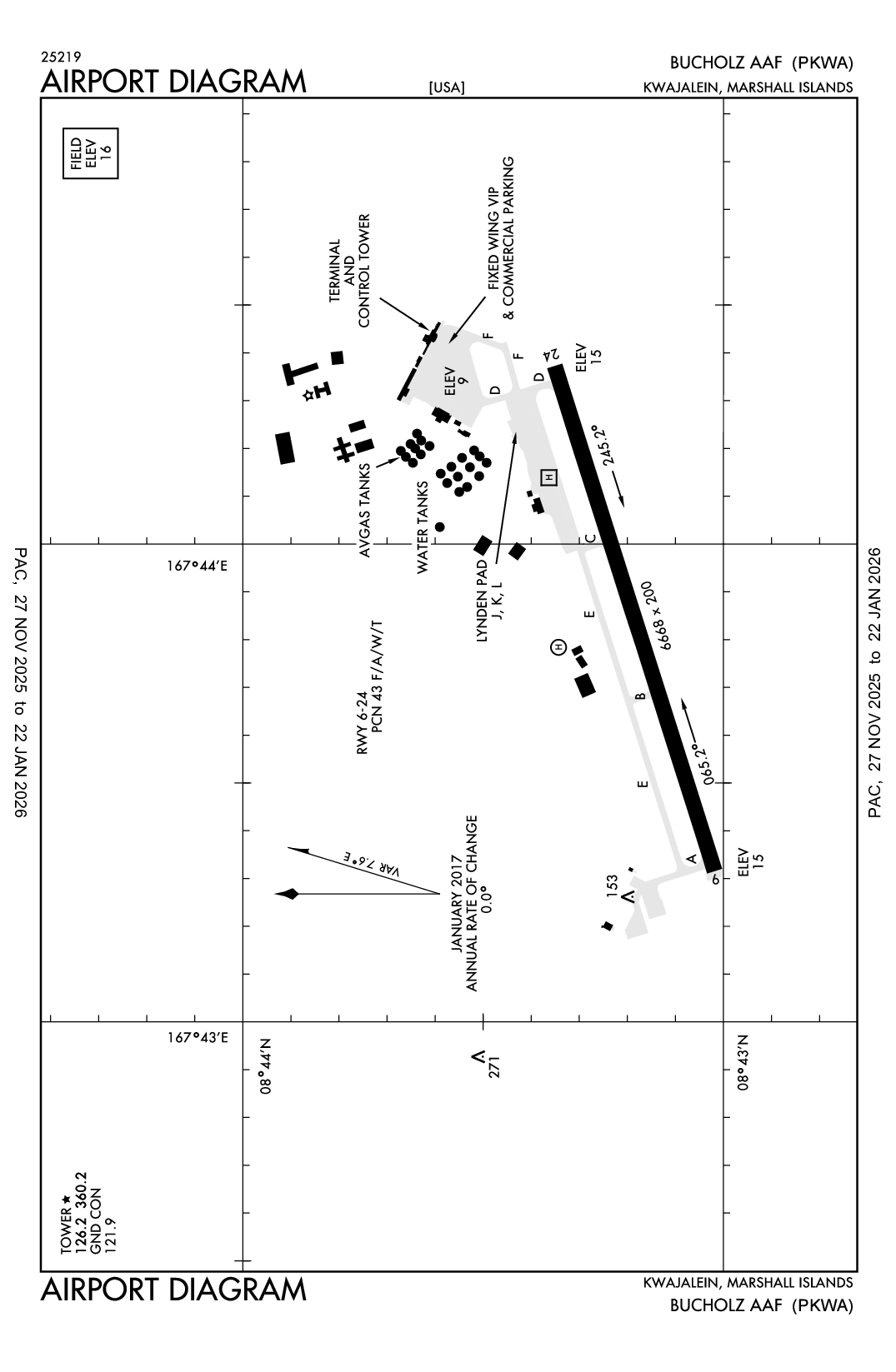

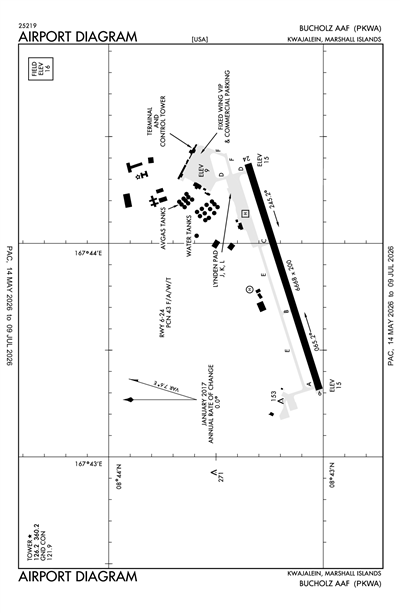

BUCHOLZ AAF(KWAJALEIN KMR)(ATOLL) - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PKWA
BUCHOLZ AAF(KWAJALEIN KMR)(ATOLL)
PrivatePVT

View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
8° 43' 12"N 167° 43' 54"E
16' MSL
1016' MSL
09E
None Listed
HONOLULU (HNL)
GNC 7
OAKLAND OCEANIC ARTCC (ZAK)
12/25/25-1/22/26
PKWA VFR
7:00 AM +11
Broken 4,200'
Scattered 2,200'
Scattered 1,600'
10sm
77°F
74°F
29.78"Hg
Calm
AO2 T02500234
METAR PKWA 082000Z AUTO 10SM SCT016 SCT022 BKN042 25/23 A2978 RMK AO2 T02500234
+ Add Your Business

PKWA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 126.2

Other

BASE OPS ADVISORY SVC
 118.8

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PKWA
Fri, 1/9 4:31 AM +11
Fri, 1/9 5:00 AM +11 - Sat, 1/10 5:00 AM +11
IFR
Temporary 5:00 AM +11 - 9:00 AM +11
Heavy Showers and Rain
Broken 2,000'
Scattered 1,000'
1sm
Calm
VFR
5:00 AM +11 - 5:00 AM +11
Showers in vicinity
Broken 10,000'
Scattered 5,000'
Scattered 2,000'
6sm
080° 14kts
TAF PKWA 081731Z 0818/0918 08014KT P6SM VCSH SCT020 SCT050 BKN100
   TEMPO 0818/0822 1SM +SHRA SCT010 BKN020
PKWA
EffectiveExpiresCategoryNOTAM
Military
1/9/26
2000Z
1/10/26
0001Z
SMALL ARMS RANGE OPERATIONS CONDUCTED NW OF RW06 APPROACH END. 10 JAN 0800L - 10 JAN 1201
12/31/25
1601Z
6/30/26
0001Z
Aerodrome!PKWA V0506/25 KWA AERODROME INSTRUMENT APPROACH PROCEDURE AMENDMENT RNAV (GPS) RWY 24 SEGMENT FROM NDJ - BUCHOLZ NDB TO TONBE NA 2512311601-2606300001
12/31/25
0441Z
3/2/26
2359Z
OBST OBST CAUTION - NUMEROUS OBSTN AND TREES IN PRI SFC AND RWY TRSN SFC
12/31/25
0421Z
3/2/26
2359Z
AerodromeAERODROME BEACON WHITE UNSERVICEABLE
12/31/25
0421Z
3/2/26
2359Z
ALL ARRIVALS AND DEPARTURES MAKE SOUTH TRAFFIC ONLY TO AVOID ELECTROMAGNETIC RADIATION HAZARDS. OVERFLIGHT OF THE ISLAND NORTH OF RWY IS PROHIBITED.
12/31/25
0419Z
2/2/26
2359Z
CRANE OPERATIONS NORTH OF RWY06/24 AT PARSONS LSA & COSA. SFC TO 100FT. 0700L-1730L.
12/31/25
0417Z
3/2/26
2359Z
HAZARDOUS/HOT CARGO AREA REQUIRES PPR FOR 1.1, 1.2, AND 1.3 HAZMAT EXEMPTION
12/31/25
0414Z
3/2/26
2359Z
BUCHOLZ TOWER AVAILABLE, CLASS D SURFACE AREA IN EFFECT DAILY 2000-0400Z, MON-SAT. ALL AIRCRAFT ANNOUNCE INTENTIONS ON 126.200
12/31/25
0413Z
3/2/26
2359Z
AerodromeAERODROME BASH BIRD WATCH CONDITION MODERATE.
12/31/25
0412Z
3/2/26
2359Z
AIRCRAFT SERVICES ONLY JP-5 FUEL AVAILABLE. NO HOT REFUELING. NO LAVATORY, OXYGEN, OR NITROGEN SERVICES.
12/31/25
0411Z
3/2/26
2359Z
RunwayRWY 24 PRIOR APPROVAL REQUIRED FOR TAKEOFF DEPARTURES DUE TO ELECTOMAGNETIC RADIATION HAZARD.
12/31/25
0410Z
3/2/26
2359Z
RunwayRWY 06/24 180 DEGREE TURNS RESTRICTED TO THRESHOLD AREAS
12/31/25
0408Z
3/2/26
2359Z
TaxiwayTWY ALL EDGE LGT UNSERVICEABLE TWY B, C, E, F
12/31/25
0407Z
3/2/26
2359Z
TaxiwayTWY B, TWY C, AND TWY E CLSD TO ALL FIXED WING ACFT.
12/31/25
0406Z
3/2/26
2359Z
BUCHOLZ RAMPS ARE WEIGHT RESTRICTED: C17 MAIN RAMP 480000 LBS PCN 38/R/B. TWY FOXTROT 507000 LBS PCN 43/R/B. TRANSIENT AIRCRAFT MUST PROVIDE PLANNED ARRIVING AND DEPARTING OPERATING WEIGHTS TO PKWA BASE OPERATIONS TO ENSURE COMPLIANCE.
12/31/25
0404Z
3/2/26
2359Z
AerodromeAERODROME CLSD TO ALL TFC SAT/0800Z-SUN/1900Z, UNLESS PRIOR PERMISSION APPROVED
12/31/25
0404Z
3/2/26
2359Z
CONTACT TOWER/BASE OPS MINIMUM 80NM OF BUCHOLZ AAF AND PRIOR TO DEPARTURE FOR ELECTROMAGNETIC RADIATION HAZARD DECONFLICTION
12/31/25
0402Z
3/2/26
2359Z
ALL ACFT USE CAUTION FOR VEHICLE TFC ON PERIMETER ROAD AT APPROACH ENDS OF RWY 06/24
12/31/25
0359Z
3/2/26
2359Z
TRANSIENT ACFT HRS OF SERVICE DAILY 1900Z-0800Z EXCEPT SUN, UNLESS PRIOR PERMISSION APPROVED
12/31/25
0355Z
3/2/26
2359Z
ALL MOG FOR SERVICE IS 1 AIRCRAFT. MOG FOR PARKING IS 3 AIRCRAFT
12/31/25
0352Z
3/2/26
2359Z
OPS APRON EDGE LGT UNSERVICEABLE
12/31/25
0351Z
3/2/26
2359Z
TaxiwayTWY F RESTRICTED TO DAY USE ONLY
12/31/25
0350Z
3/2/26
2359Z
NAVAID KWA NDB DECOMMISSIONED NDJ NO LONGER ACTIVE.
12/31/25
0346Z
3/2/26
2359Z
TaxiwayTWY D SOLAR LGT IN USE
12/31/25
0343Z
3/2/26
2359Z
PPR NOW REQUIRE 72 HRS NOTICE FOR ALL ACFT.
Yes
0730-2130
US ARMY AERONAUTICAL SVCS AGENCY

FT BELVOIR, VA 22060
N/A
HONOLULU FSS (HNL)
Toll Free: 1-800-WX-BRIEF
PKWA
--
--
N/A
N/A
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
High & Low Pressure
None

Runway 06/24

6668 ft. x 200 ft.

ASPH
NONE
HIGH

158,000lbs
205,000lbs
308,000lbs
--
  Runway 06 Runway 24
True Heading 73°253°
Traffic Pattern
Markings
Markings Condition
Latitude 8° 43' 03"N 8° 43' 22"N
Longitude 167° 43' 22"E 167° 44' 26"E
Elevation 10' 10'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes No
A110-124 HR PPR THRU CMDR US ARMY KWAJALEIN ATOLL; P.O. BOX 26 APO AP 96555; ATTN: CTC BASE OPS, PACIFIC DSN 480-2131, C808-580-2131.
A110-10AVOID RAIN CATCHMENTS ON N SIDE OF RWY AND TWY.
A110-13(A70) FUEL CODE JP-5
A110-14TACAN TOWER 75 FT HIGH LCTD 164 FT NORTH OF TWY E CNTRLN.
A110-15PORTIONS OF TWY E NOT VIS FM ATCT.
A110-16NUMEROUS TREES AND OTHER OBSTN WITHIN 300 FT S OF RWY.
A110-17USE OF PARALLEL TWY A LMTD TO C-141 AND SMALLER ACFT.
A110-18ELECTRO-MAGNETIC RADIATION MAY EXIST 24 HRS DAILY WITHIN 5 NM, FM SFC TO 30,000 FT.
A110-19RSTD: TWYS A AND E ARE WEIGHT RESTRICTED FOR THE FOLLOWING ACFT: B737, B757, B767, C-5, C-17, C-130 BACK TAXI AND 180 DEG TURN ON RY WILL BE REQUIRED, FOR EITHER ARR OR DEP. EXCEPTIONS MAY BE GRANTED FOR TWY A, IN ORDER TO ACCESS EXPLOSIVE CARGO PARKING LOCATIONS.
A110-2250 FT TWR 8.5NM PKWA BRG 300DEG.
A110-20REPORT ON INITIAL CALL UP WITH AWOS WX INFO AVBL ON FREQ.119.675 OR CALL (808) 580-2131.
A110-21ATNDD (BASE OPS) 1730-0900Z MON-SAT. AFLD OPEN 1900Z-0800Z MON-SAT, ALFD CLSD SUN. TRAN ACFT HRS OF SVC 1900Z-0800Z. OPS OT RQR USAG-KWAJALEIN ATOLL AIRFIELD MANAGER APVL AND SUPPORT PERS SKED AND FUNDED. UNATTENDED AFLD OPS NA EXC EMERG.
A110-22RSTD: PPR WITH 24 HR NTC AND BILLETING CONFIRMATION NR REQ FOR ALL ACFT, EXC REG SKED COMM AND AMC CHANNEL MSN. EMERG DIVERT ACFT TO BUCHOLZ AAF OUTSIDE OF REG AFLD OPR HR, CTC FAA CONTROLLER AT OAKLAND CNTR TO AMG BASE OPS/TWR PERS RECALL. ALL ACFT TRNSPG XPLOS CARGO RQR A PPR. CTC BASE OPS, PACIFIC DSN 480-2131, C808-580-2131. ACFT AVOID OVER FLT E END OF ISLAND BLW 1500 FT AGL. TWY E IS WT RSTD FOR FOLLOWING ACFT B737, B757, B767, C-5, C-17, C-130. BT AND 180 DEG TURN ON RWY WILL BE RQR FOR EITHER ARR OR DEPT. EXCEPTIONS MAY BE GRANTED FOR TWY A, IN ORDER TO ACCESS XPLOS CARGO PRKG LOC.
A110-23MISC: MINIMIZE ENG RUN-UP DUR.
A110-24TFC PAT: ALL ARR AND DEP MAKE S TFC ONLY TO AVOID EXTRM RADIATION HAZ. OVFT OF THE ISLAND N OF RWY CNTRLN IS PROH.
A110-3CTN-PILOTS HAVE EXPERIENCED VERTIGO DUR NGT OPERNS ESPECIALLY DUR PERIODS OF REDUCED VIS DUE TO LACK OF VISUAL CUES.
A110-4AFCT WITH EXPLOSIVE CARGO SHOULD PLAN TO ARRIVE BETWEEN 0830-1730 LCL.
A110-7CAUTION: MEN, EQUIP, AND VEHICLES MAY BE OPR IN CLOSE PROXIMITY TO THE RWY. 250 FT TWR 8.5 NM WNW. VERTIGO POTENTIAL EXISTS DUR NGT OPR ESPECIALLY DUR PERIODS OF REDUCED VIS DUE LACK OF VIS CUES. AVOID RAIN CATCHMENTS ON N SIDE OF RWY AND TWY. PORTIONS OF TWY E NOT VIS FR TWR. NO OVRN AVBL. NUMEROUS TREES AND OTHER OBST WITHIN 300 FT S OF RWY. SEAWALL AT EA END OF RWY. ELECTRO-MAGNETIC RADIATION MAY EXIST 24 HR DLY WITHIN 5 NM SFC TO 30,000 FT. CTC BASE OPS OR TWR PRIOR TO ARR AND DEP FOR ELECTRO-MAGNETIC RADIATION HAZ DE-CONFLICTION.
A110-8TRANSIT ALERT CONTRACTOR ASSISTANCE AVAILABLE 0730-1930 LCL.
A110-9ARR/DEP SHOULD NOT BE PLANNED BETWEEN 1300-0730 LCL.
BUCHOLZ AAF(KWAJALEIN KMR)(ATOLL) (ICAO: PKWA, IATA: KWA) is a private airport located in KWAJALEIN.
