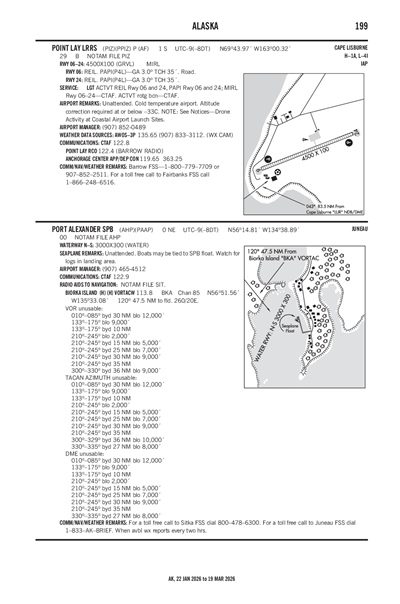

POINT LAY LRRS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PPIZ
POINT LAY LRRS
PublicPUB

1 miles S of POINT LAY, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
69° 43' 58"N 163° 00' 19"W
28' MSL
1028' MSL
15E
None Listed
BARROW (BRW)
CAPE LISBURNE
ANCHORAGE (ZAN)
4/18/24-5/16/24
PPIZ MVFR
5:20 PM AKDT
Light Snow
Scattered 1,600'
5sm
10°F
7°F
30.50"Hg
050° 23kts
AO2 PK WND 06027/0115 P0000 FZRANO
PPIZ 010120Z AUTO 05023KT 5SM -SN SCT016 M12/M14 A3050 RMK AO2 PK WND 06027/0115 P0000 FZRANO
List Your Business

PPIZ FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

PPIZ Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

PPIZ Hotels

No hotels are listed for this airport.

PPIZ Restaurants

No restaurants are listed for this airport.

PPIZ Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.8

AWOS-3P

AWOS-3P
907-833-3112
 135.65

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
PPIZ
Domestic
4/3/240458Z !PIZ 04/001 PIZ RWY 23 PAPI U/S 2404030458-2406011500EST
2/21/241019Z !PIZ 02/006 PIZ COM REMOTE COM OUTLET 122.4 U/S 2402211019-2406221500EST
No
ALL
US GOV 11TCW/LGO ELEMDORF
6900 9TH ST SUITE 301
EAFB, AK 99506
Phone: 907-557-4146
GEORGE AHMAOGAK, JR
PO BOX 69
BARROW, AK 99723
Phone: (907) 852-0489
BARROW FSS (BRW)
Toll Free: LC852-2511
PIZ
--
ACTVT REIL RWY 05 & 23; PAPI RWY 05 & 23; MIRL RWY 05/23 - CTAF.
ACTVT ROTG BCN - CTAF.
N/A
Yes - Lighted
Yes
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Cargo Handling

Runway 05/23

4500 ft. x 100 ft.
GRAVEL
Good
NONE
MED

--
--
--
--
  Runway 05 Runway 23
True Heading 69°249°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 69° 43' 50"N 69° 44' 06"N
Longitude 163° 01' 19"W 162° 59' 20"W
Elevation 28' 18'
Threshold Crossing Height 35 ft. AGL 35 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-5WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-6BARROW FSS - 1-800-779-7709 OR 907-852-2511.
A110-7COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -33C.
POINT LAY LRRS (ICAO: PPIZ, IATA: PIZ) is a public airport located in POINT LAY, AK.
