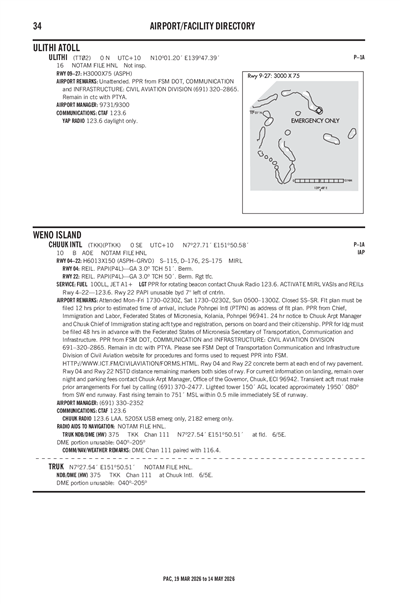

CHUUK INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PTKK
ICAO PTKKIATA TKKLocal TKK
CHUUK INTL
PublicPUB

0 miles SE of WENO ISLAND, Micronesia
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
7° 27' 43"N 151° 50' 35"E
Elevation
10' MSL
Pattern Alt
1010' MSL
Mag Variation
4°E
Declination
5°E
Fuel
JET A-1+, 100LL
FSS
HONOLULU (HNL)
Sectional
GNC 7
ARTCC
OAKLAND OCEANIC ARTCC (ZAK)
Data Effective
3/19/26-4/16/26
PTKK VFR
4:51 AM +10
Thunderstorm
Overcast 28,000'
Broken 12,000'
Scattered 1,400'
15sm
79°F
75°F
29.71"Hg
VRB° 5kts
CONS LTGCCC NE TSB51 NE MOV NE
SPECI PTKK 041851Z VRB05KT 15SM TS SCT014CB BKN120 OVC280 26/24 A2971 RMK CONS LTGCCC NE TSB51 NE MOV NE
+ Add Your Business

PTKK FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 123.6

Terminal Area Forecast

PTKK
Sun, 4/5 3:41 AM +10
Sun, 4/5 4:00 AM +10 - Mon, 4/6 4:00 AM +10
VFR
4:00 AM +10 - 9:00 AM +10
Showers in vicinity
Broken 12,000'
Scattered 4,000'
Scattered 1,400'
6sm
050° 13kts
Gusts 18kts
MVFR
Temporary 5:00 AM +10 - 9:00 AM +10
Thunderstorm and Rain
Broken 1,400'
4sm
Calm
MVFR
9:00 AM +10 - 1:00 PM +10
Thunderstorm and Rain
Broken 1,400'
4sm
050° 18kts
Gusts 24kts
VFR
9:00 AM +10 - 4:00 AM +10
Thunderstorm in vicinity
Broken 11,000'
Broken 3,500'
Scattered 1,400'
6sm
050° 15kts
Gusts 19kts
TAF PTKK 041741Z 0418/0518 05013G18KT P6SM VCSH SCT014 SCT040 BKN120
   TEMPO 0419/0423 4SM TSRA BKN014CB
   FM042300 05015G19KT P6SM VCTS SCT014CB BKN035 BKN110
   PROB30 0423/0503 05018G24KT 4SM TSRA BKN014CB
PTKK
EffectiveExpiresCategoryNOTAM
Domestic
12/21/25
1337Z
!HNL 12/343 TKK NAV DME NOT MNT 2512211337-2607012359EST
FDC
8/27/24
1457Z
!FDC 4/6527 TKK IAP CHUUK INTL, WENO ISLAND, .
NDB RWY 22, ORIG-A...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
TKK DME RESTRICTED.
2408271457-2608261457EST
No
MON-FRI 0730-1630
SAT 0730-1630
SUN 1900-0300
CHUUK STATE
P.O. BOX 189
WENO, CHUUK, FM 96942
Phone: 691-330-2352
JERRY IRONS
PO BOX 53
WENO, CHUUK, FM 96942
HONOLULU FSS (HNL)
Toll Free: 1-800-WX-BRIEF
HNL
--
ACTVT MIRL; VASIS & REILS RWY 04/22 - 123.6.
N/A
Yes - Lighted
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Cargo Handling

Runway 04/22

6013 ft. x 150 ft.
ASPH
Good
GRVD
MED

115,000lbs
176,000lbs
--
--
  Runway 04 Runway 22
True Heading 46°226°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 7° 27' 22"N 7° 28' 04"N
Longitude 151° 50' 13"E 151° 50' 56"E
Elevation 10' 10'
Threshold Crossing Height 51 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1<LGTD TWR 150' AGL LCTD APRX 1950' 080 DEG FM SW END RWY.
A110-2<FAST RISING TRRN TO 751' MSL WI .5 MI IMMEDIATELY SE OF RWY.
A110-3PPR FROM CHIEF IMMIGRATION & LABOR; FEDERATED STATES OF MICRONESIA; KOLONIA POHNPEI 96941.
A110-4FOR CURRENT INFORMATION ON LANDING/RON/PARKING FEES CONTACT CHUUK AIRPORT MANAGER; OFFICE OF THE GOVENOR; CHUUK ECI 96942.
A110-5PPR FOR ROTG BCN CTC TRUK RDO 123.6.
A110-6FLT PLAN MUST BE FILED 12 HRS PRIOR TO ETA; INCL POHNEPI INTL (PTPN) AS ADDRESS OF FLT PLAN.
A110-7A018 PPR FOR LANDING MUST BE FILED 48 HR IN ADVANCE WITH THE FSM SECRETARY OF TRANSPORTATION, COMMUNICATION & INFRASTRUCTURE
A110-8PLEASE SEE FSM DOTC&I: DIV. OF CIVIL AVIATION'S WEBSITE FOR PROCEDURES AND FORMS USED TO REQUEST PPR INTO FSM; HTTP://WWW.ICT.FM/CIVILAVIATION/FORMS.HTML.
A1424 HRS NOTICE TO CHUUK ARPT MGR & CHUUK CHIEF OF IMMIGRATION STATING ACFT TYPE; REGISTRATION & SOULS ON BOARD PLUS CITIZENSHIP.
A42-04_MARK& RWY 22 NSTD DISTANCE REMAINING MKRS BOTH SIDES OF RY.
A43-22UNUSBL BYD 7 DEGS LEFT OF CNTRLN.
A52-04& RY 22 CONCRETE BERM AT EACH END OF RY PAVEMENT.
A57-04& RY 22 APCH RATIO 50:1 TO DSPLCD THR.
A70-100LLTRANSIENT AIRCRAFT MUST MAKE PRIOR ARRANGEMENTS FOR FUEL BY CALLING (691) 370-2477.
A81-APTACTVT MIRL; VASIS & REILS RWY 04/22 - 123.6.
E111ARPTS IN TRUST TERRITORY NOT SUBJECT TO FAA REGS. AIRSPACE ANALYSIS NOT REQUIRED.
CHUUK INTL (ICAO: PTKK, IATA: TKK) is a public airport located in WENO ISLAND, Micronesia.
