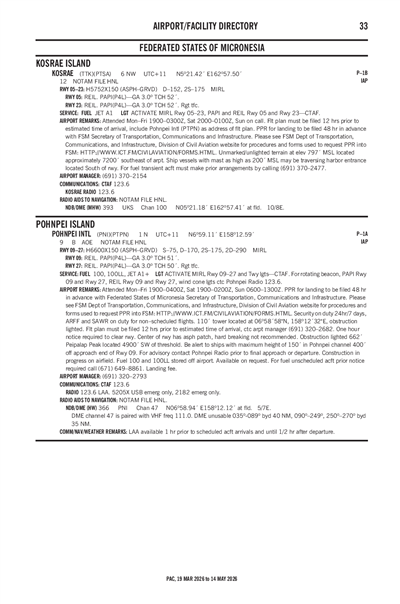

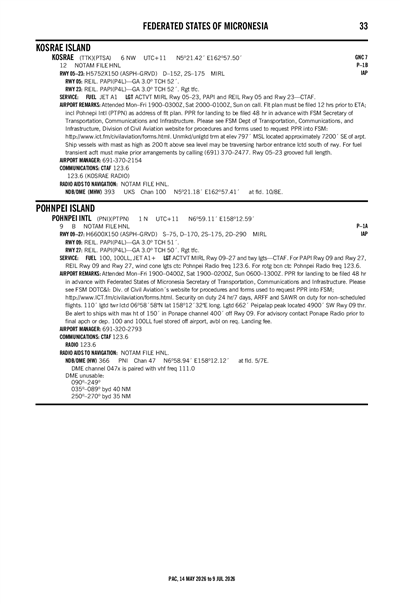

KOSRAE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PTSA
ICAO PTSAIATA KSALocal TTK
KOSRAE
PublicPUB

6 miles NW of KOSRAE, Micronesia
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
5° 21' 25"N 162° 57' 30"E
Elevation
12' MSL
Pattern Alt
1012' MSL
Mag Variation
7°E
Declination
8°E
Fuel
JET A-1
FSS
HONOLULU (HNL)
Sectional
GNC 7
ARTCC
OAKLAND OCEANIC ARTCC (ZAK)
Data Effective
5/14/26-6/11/26
PTSA MVFR
12:50 PM +11
Broken 30,000'
Broken 13,000'
Broken 2,000'
10sm
90°F
79°F
29.74"Hg
120° 6kts
TCU NW
METAR PTSA 150150Z 12006KT 10SM BKN020TCU BKN130 BKN300 32/26 A2974 RMK TCU NW
+ Add Your Business

PTSA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 123.6
ACTVT MIRL RY 05/23, PAPI AND REIL RYS 05 & 23 - CTAF.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

PTSA
Fri, 5/15 10:33 AM +11
Fri, 5/15 11:00 AM +11 - Sat, 5/16 11:00 AM +11
MVFR
Temporary 11:00 AM +11 - 2:00 PM +11
Broken 1,800'
N/A
Calm
VFR
11:00 AM +11 - 5:00 PM +11
Showers in vicinity
Broken 12,000'
Scattered 1,800'
6sm
120° 10kts
MVFR
5:00 PM +11 - 9:00 PM +11
Showers and Rain
Overcast 10,000'
Broken 4,000'
Broken 1,700'
4sm
Calm
VFR
5:00 PM +11 - 11:00 AM +11
Showers in vicinity
Broken 11,000'
Scattered 5,000'
Scattered 1,800'
6sm
090° 11kts
TAF PTSA 142333Z 1500/1524 12010KT P6SM VCSH SCT018 BKN120
   TEMPO 1500/1503 BKN018
   FM150600 09011KT P6SM VCSH SCT018 SCT050 BKN110
   PROB30 1506/1510 4SM SHRA BKN017 BKN040 OVC100
PTSA
EffectiveExpiresCategoryNOTAM
Domestic
5/15/26
0029Z
6/12/26
2359Z
Runway!HNL 05/172 TTK RWY 05 RWY END ID LGT U/S 2605150029-2606122359
5/15/26
0027Z
Runway!HNL 05/171 TTK RWY 05 PAPI U/S 2605150027-2606122359EST
5/8/26
0152Z
5/15/26
2359Z
Runway!HNL 05/086 TTK RWY 23 RWY END ID LGT U/S 2605080152-2605152359
5/8/26
0151Z
Runway!HNL 05/085 TTK RWY 23 PAPI U/S 2605080151-2605152359EST
FDC
5/12/26
0259Z
6/11/26
0259Z
!FDC 6/9666 TTK IAP KOSRAE, KOSRAE, .
NDB-A, ORIG-D...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
UKS NDB OUT OF SERVICE. 2605120259-2606110259EST
No
MON-FRI 0800-1600
SAT 0900-1400
SUN ON CALL
KOSRAE STATE
P.O. BOX 960
TOFOL, KOSRAE, FM 96944
Phone: 691-370-2154
JESSE TULENSRU
P.O. BOX 960
TOFOL KOSRAE, FM 96944
Phone: 691-370-2154
HONOLULU FSS (HNL)
Toll Free: 1-800-WX-BRIEF
HNL
--
ACTVT MIRL RY 05/23, PAPI AND REIL RYS 05 & 23 - CTAF.
N/A
Yes
Yes
No
None
No
None
None
None
None
None

Runway 05/23

5752 ft. x 150 ft.
ASPH
Good
GRVD
MED

--
152,000lbs
--
--
  Runway 05 Runway 23
True Heading 56°236°
Traffic Pattern Right
Markings
Markings Condition GOOD GOOD
Latitude 5° 21' 09"N 5° 21' 41"N
Longitude 162° 57' 07"E 162° 57' 54"E
Elevation 11' 12'
Threshold Crossing Height 52 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1FLT PLAN MUST BE FILED 12 HRS PRIOR TO ETA; INCL POHNEPI INTL (PTPN) AS ADDRESS OF FLT PLAN.
A110-2SHIP VESSELS WITH MASTS AS HIGH AS 200 FT ABOVE SEA LEVEL MAY BE TRAVERSING HARBOR ENTRANCE LCTD SOUTH OF RY.
A110-3UNMKD/UNLGTD TRRN AT ELEV 797' MSL LCTD APRXLY 7200' SE OF ARPT.
A110-4PPR FOR LANDING TO BE FILED 48 HR IN ADVANCE WITH FSM SECRETARY OF TRANSPORTATION, COMMUNICATIONS & INFRASTRUCTURE
A110-5PLEASE SEE FSM DOTC&I: DIV. OF CIVIL AVIATION'S WEBSITE FOR PROCEDURES AND FORMS USED TO REQUEST PPR INTO FSM; HTTP://WWW.ICT.FM/CIVILAVIATION/FORMS.HTML.
A34-05/23GROOVED FULL LENGTH.
A70-A1FOR FUEL TRANSIENT AIRCRAFT MUST MAKE PRIOR ARRANGEMENTS BY CALLING (691) 370-2477.
A81-APTACTVT MIRL RY 05/23, PAPI AND REIL RYS 05 & 23 - CTAF.
KOSRAE (ICAO: PTSA, IATA: TTK) is a public airport located in KOSRAE, Micronesia.
