PWAK
WAKE ISLAND AIRFIELD
PrivatePVT

0 miles N of WAKE ISLAND, QW
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
19° 16' 57"N 166° 38' 12"E
23' MSL
1023' MSL
06E
None Listed
HONOLULU (HNL)
GNC 7
OAKLAND OCEANIC ARTCC (ZAK)
4/18/24-5/16/24
PWAK MVFR
5:55 AM +11
Broken 2,900'
Scattered 2,000'
10sm
77°F
73°F
29.96"Hg
050° 10kts
AO2 RAB1759E24 BKN V SCT SLP151 P0001 T02490226 $
PWAK 271855Z AUTO 05010KT 10SM SCT020 BKN029 25/23 A2996 RMK AO2 RAB1759E24 BKN V SCT SLP151 P0001 T02490226 $
List Your Business

PWAK FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

PWAK Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

PWAK Hotels

No hotels are listed for this airport.

PWAK Restaurants

No restaurants are listed for this airport.

PWAK Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

No communication frequencies available for this airport.

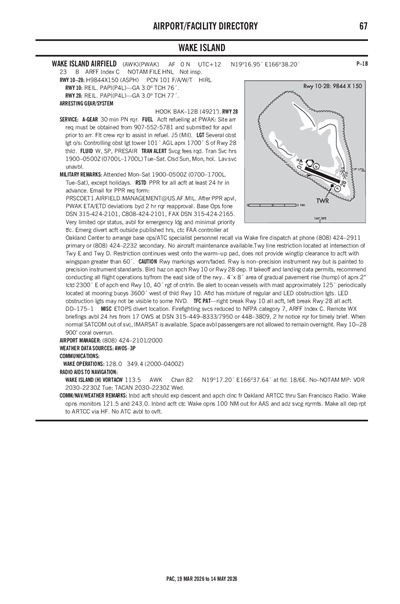

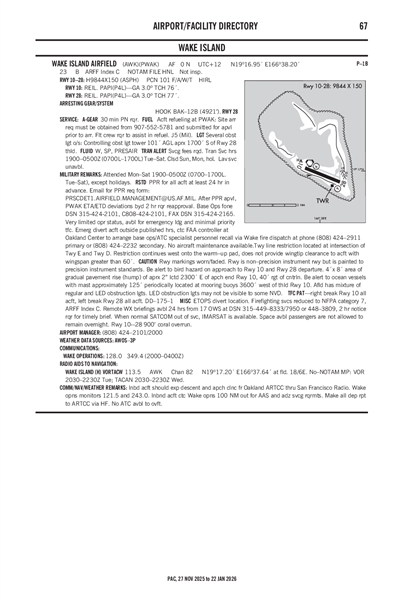

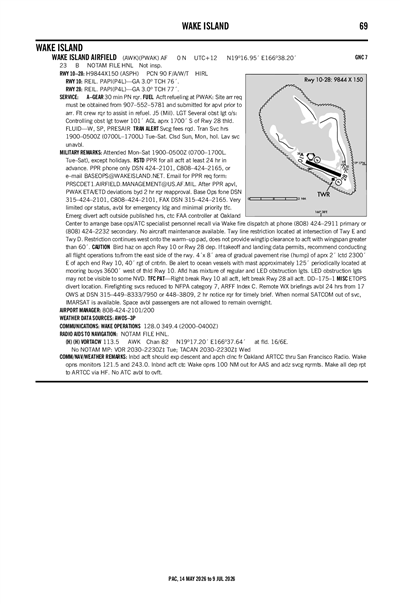

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PWAK
Sun, 4/28 1:00 AM +11
Sun, 4/28 1:00 AM +11 - Mon, 4/29 7:00 AM +11
VFR
1:00 AM +11 - 7:00 AM +11
Scattered 2,000'
6sm
29.94"Hg
040° 10kts
TAF PWAK 271400Z 2714/2820 04010KT 9999 SCT020 QNH2993INS TX30/2805Z TN24/2716Z FOR MIL USE ONLY
PWAK
Military
4/18/240000Z FAA PACIFIC CHART SUPPLEMENT OUTDATED, REFER TO DOD FLIP DATED 18 APR 24 FOR UPDATES TO THE FOLLOWING PROCEDURES: RNAV (GPS) RWY 10, RNAV (GPS) RWY 28, TACAN OR VOR/DME RWY 10, TACAN OR VOR/DME RWY 28.
3/27/241926Z AERODROME OPERATING HOURS TUES-SAT 1900Z-0500Z (0700L-1700L)
3/27/240335Z !PWAK M0033/24 AWK RWY 28 PAPI U/S 2403270335-2406242000
3/27/240335Z !PWAK M0032/24 AWK RWY 28 6000FT DIST REMAINING SIGN S SIDE LGT U/S 2403270335-2406242000
3/21/242142Z !PWAK M0031/24 AWK AD ABN U/S 2403212142-2406072000
3/7/242226Z AERODROME AVAILABLE DAYTIME/VFR OPS ONLY.
2/23/240304Z TWY E TWY E BTWN B AND D UNSUITABLE FOR C5, B747, A380, A340, AN124 DUE TO POTENTIAL FOD HAZARD EXISTING BEYOND THE PAVED SURFACE OF THE TWY.
2/14/242157Z AERODROME ALL RWY AND TWY LGHT SYSTEMS WITH THE EXCEPTION OF RWY10 PAPI ARE OTS UNTIL FURTHER NOTICE.
No
EXC HOL
MON-SAT 2000Z-0400Z
(0800-1600L TUE-SAT)
AIR FORCE
DETACHMENT 3, 13 AF,PACAF
WILLIAM K LUIKART
P O BOX 187
WAKE ISLAND 96898
Phone: 808-424-2101/200
HONOLULU FSS (HNL)
Toll Free: 1-800-WX-BRIEF
HNL
--
--
N/A
Yes
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 10/28

9844 ft. x 150 ft.

ASPH
NONE
HIGH
90 /F/A/W/T
--
--
--
--
  Runway 10 Runway 28
True Heading 102°282°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 19° 17' 07"N 19° 16' 47"N
Longitude 166° 37' 22"E 166° 39' 02"E
Elevation 23' 20'
Threshold Crossing Height 76 ft. AGL 77 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-10RSTD: NO AIRCRAFT MAINTENANCE AVBL. TAXIWAY LINE RESTRICTION LOCATED AT INTERSECTION OF TAXIWAY ECHO AND DELTA. CONTINUES (WEST) ONTO THE WARM-UP PAD DOES NOT PROVIDE WINGTIP CLEARANCE TO AIRCRAFT WITH WINGSPAN GREATER THAN 60 FEET.
A110-13BE ALERT TO OCEAN VESSELS WITH MAST APRX 125 FT PERIODICALLY LCTD AT MOORING BUOYS 3600 FT W OF THLD RY 10.
A110-21ARRESTING GEAR - (RWY 28) HOOK BAK 12B (4921').
A110-23MISC: REMOTE WX BRIEFINGS AVBL H24 FR 17 OWS AT DSN 315-449-8333/7950 OR 448-3809, 2HR NTC RQR FOR TIMELY BRIEF. WHEN NML SATCOM O/S, IMARSAT IS AVBL. SPACE AVBL PAX ARE NA TO RON.
A110-24RSTD: PPR FOR ALL ACFT AT LEAST 24 HR IN ADVANCE. PPR PHONE ONLY DSN 424-2101, C808-424-2101, FAX DSN 315-424-2165, C808-424-2165, OR E-MAIL: BASEOPS@WAKEISLAND.NET .
A110-26RSTD: VERY LIMITED OPERATIONS STATUS, AVBL FOR EMERG LDG AND MIN PRIORITY TFC.
A110-27TFC PAT: RGT BREAK RY 10 ALL ACFT, LEFT BREAK RY 28 ALL ACFT.
A110-29TRAN ALERT: SVCG FEES RQD. TRAN SVC HRS 2000-0400Z (0800L-1600L) TUE-SAT. CLSD SUN, MON, HOL.
A110-3FUEL: FLIGHT CREW REQUIRED TO ASSIST IN REFUELING. J5(MIL). FLUID - W, SP, PRESAIR.
A110-30MISC: ETOPS DIVERT LCTN. FIREFIGHTING SVCS REDUCED TO NFPA CAT 7, ARFF INDEX C.
A110-32CAUTION: AFLD HAS MIXTURE OF REGULAR AND LED OBST LGT. LED OBST LGTS MAY NOT BE VISIBLE TO SOME NVD.
A110-34EMAIL FOR PPR REQ FORM: PRSCDET1.AIRFIELD.MANAGEMENT@US.AF.MIL. AFTER PPR APVL, PWAK ETA/ETD DEVIATIONS BYD 2 HR RQR REAPPROVAL. BASE OPS FONE DSN 315-424-2101, C808-424-2101, FAX DSN 315-424-2165.
A110-35RSTD: EMERG DIVERT ACFT OUTSIDE PUBL AFLD HRS, CTC FAA CONTROLLER AT OAKLAND ARTCC TO ARRANGE BASE OPS/ATC SPECIALIST PERSONNEL RECALL VIA WAKE FIRE DISPATCH AT FONE 808-424-2911 PRI OR 808-424-2232 SEC.
A110-36SERVICE-TRAN ALERT: LAV SVC UNAVBL.
A110-37CTC WAKE ISLAND ARPT OPERATIONS ON 128.0/349.4.
A110-39SERVICE - FUEL: ACFT REFUELING AT PWAK: SITE ARR REQ MUST BE OBTAINED FROM 907-552-5781 AND SUBMITTED FOR APVL PRIOR TO ARR.
A110-40SERVICE-LGT: SEVERAL OBST LGT O/S: CONTROLLING OBST LGT TOWER 101 FT AGL APRX 1700 FT S OF RWY 28 THLD.
A110-41RWY - CAUTION: 4 FT X 8 FT AREA OF GRADUAL PAVEMENT RISE (HUMP) OF APRX 2 INCHES LCTD 2300 FT E OF APCH END RWY 10, 40 FT RGT OF CNTLN.
A110-6BE ALERT TO BIRD HAZARD ON APCH TO RY 10 AND RY 28 DEP.
WAKE ISLAND AIRFIELD (ICAO: PWAK, IATA: AWK) is a private airport located in WAKE ISLAND, QW.
