LAKE CHELAN - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

S10
Local S10
LAKE CHELAN
PublicPUB

3 miles NE of CHELAN, WA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
47° 51' 58"N 119° 56' 34"W
Elevation
1263' MSL
Pattern Alt
2263' MSL
Mag Variation
15°E
Declination
20°E
Fuel
JET A, 100LL
FSS
SEATTLE (SEA)
Sectional
SEATTLE
ARTCC
SEATTLE (ZSE)
Data Effective
6/11/26-7/9/26
KEAT (30nm) VFR
1:55 PM PDT
Clear
10sm
79°F
37°F
29.73"Hg
180° 3kts
AO2 SLP058 T02610028 56019
METAR KEAT 252055Z AUTO 18003KT 10SM CLR 26/03 A2973 RMK AO2 SLP058 T02610028 56019
+ Add Your Business

S10 FBOs

Promote Listing
Chelan Municipal Airport
UNICOM: 122.95
Phone: (509) 682-5976
No Rating Available
0 Reviews (Read | Sign In To Write)
EPIC
As of 6/7
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.34 6.06
Full Serve
Fuel Notes
Prices include tax
Prist (FSII) is not available for JET A.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT MIRL RY 02/20 - CTAF.
UNICOM 122.95
AUTOMATED UNICOM.

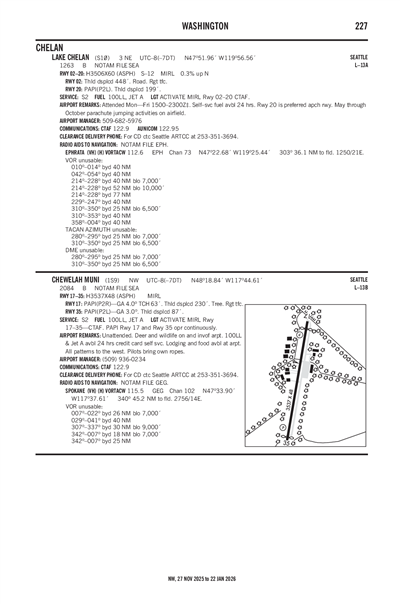

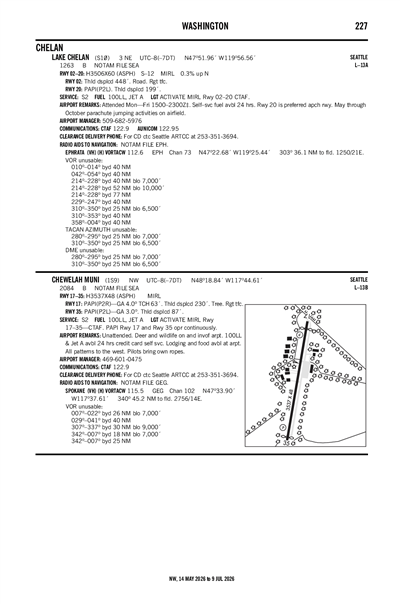

FAA A/FD Pages

Terminal Area Forecast

KEAT (30nm)
Thu, 6/25 10:36 AM PDT
Thu, 6/25 11:00 AM PDT - Fri, 6/26 11:00 AM PDT
VFR
11:00 AM PDT - 1:00 PM PDT
Scattered 24,000'
6sm
280° 6kts
VFR
1:00 PM PDT - 4:00 PM PDT
Overcast 16,000'
6sm
270° 9kts
VFR
4:00 PM PDT - 8:00 PM PDT
Overcast 14,000'
6sm
280° 14kts
Gusts 23kts
VFR
8:00 PM PDT - 10:00 PM PDT
Overcast 10,000'
6sm
290° 12kts
VFR
10:00 PM PDT - 3:00 AM PDT
Broken 9,000'
6sm
300° 10kts
VFR
3:00 AM PDT - 11:00 AM PDT
Overcast 6,000'
6sm
300° 7kts
TAF KEAT 251736Z 2518/2618 28006KT P6SM SCT240
   FM252000 27009KT P6SM OVC160
   FM252300 28014G23KT P6SM OVC140
   FM260300 29012KT P6SM OVC100
   FM260500 30010KT P6SM BKN090
   FM261000 30007KT P6SM OVC060
S10
EffectiveExpiresCategoryNOTAM
Domestic
4/7/26
1500Z
10/1/26
0300Z
!SEA 04/046 S10 AIRSPACE SEE ZSE 04/045 PJE DLY 1500-0300 2604071500-2610010300
4/7/26
1400Z
9/30/26
1400Z
!SEA 04/049 S10 AD AP ALL SFC WIP MOWING 2604071400-2609301400
No
MON-FRI 0700-1500
CITY OF CHELAN/PORT OF CHELAN
PO BOX 1669
CHELAN, WA 98816
Phone: 509-682-4037
LAURA MCALOON
PO BOX 1669
CHELAN, WA 98816
Phone: 509-682-8014
SEATTLE FSS (SEA)
Toll Free: 1-800-WX-BRIEF
SEA
--
ACTVT MIRL RY 02/20 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
Parachute Jump Activity

Runway 02/20

3506 ft. x 60 ft.
ASPH
Excellent
NONE
MED

12,000lbs
--
--
--
  Runway 02 Runway 20
True Heading 44°224°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 47° 51' 45"N 47° 52' 10"N
Longitude 119° 56' 52"W 119° 56' 16"W
Elevation 1,254' 1,263'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RY 20 IS PREFD APRCH RY.
A110-2MAY THROUGH OCTOBER PARACHUTE JUMPING ACTIVITIES ON AIRFIELD.
A110-3FOR CD CTC SEATTLE ARTCC AT 253-351-3694.
A57-02APCH SLOPE 46:1 FROM DSPLCD THR.
A57-20RY 20 APPROACH SLOPE 14:1 TO +19 FT ROAD AT 322 FT FROM DISPLCD THLD.
A58-02RWY 02, ROAD 0-200 FT FM THR ON BOTH SIDES, ROAD SIGN +7 FT, 170 FT FM THR, 77 FT L, 2 FT UTILITY BOX 110 FT FM THR, 78 FT L.
A58-20RWY 20 ROAD IN PRIM SFC 125 FT FM THR; ROAD AT 124 FT FM THR AND 4 FT SIGNS 119 FT FM THR; 3 FT SIGN 18 FT FM THR, 67 FT R; 2 FT SIGN 18 FT FM THR, 72 FT R; 2 FT PIPE 81 FT FM THR, 15 FT L; 2 FT SIGN 23 FT FM THR, 79 L; 5 FT SIGN 188 FT FM THR, 65 FT R.
A70-100LLSELF-SERVICE FUEL AVAILABLE 24/7
A75-TPIL0TS BRING OWN ROPES.
A81-APTACTVT MIRL RY 02/20 - CTAF.
A82AUTOMATED UNICOM.
E111ESTABD PRIOR TO 15 MAY 1959.
LAKE CHELAN (IATA: S10) is a public airport located in CHELAN, WA, US.
