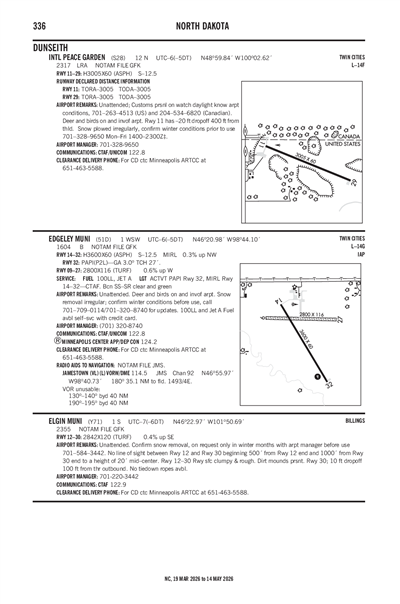

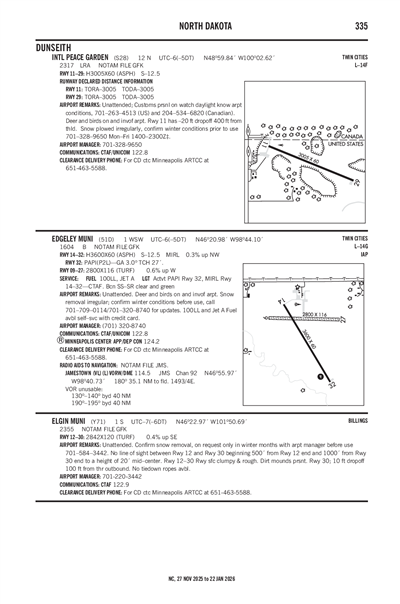

INTL PEACE GARDEN - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

S28
INTL PEACE GARDEN
PublicPUB

12 miles N of DUNSEITH, ND
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
48° 59' 50"N 100° 02' 37"W
2317' MSL
3317' MSL
09E
None Listed
GRAND FORKS (GFK)
TWIN CITIES
MINNEAPOLIS (ZMP)
11/27/25-12/25/25
KD09 (18nm) VFR
5:55 PM CST
Unknown Precipitation
Overcast 4,800'
10sm
36°F
34°F
29.00"Hg
090° 12kts
AO2
METAR KD09 172355Z AUTO 09012KT 10SM UP OVC048 02/01 A2900 RMK AO2
+ Add Your Business

S28 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

CYBR (55nm)
Wed, 12/17 5:41 PM CST
Wed, 12/17 6:00 PM CST - Thu, 12/18 6:00 AM CST
IFR
6:00 PM CST - 8:00 PM CST
Light Snow and Ice Pellets
Overcast 1,000'
2sm
050° 25kts
Gusts 35kts
LIFR
Temporary 6:00 PM CST - 8:00 PM CST
Light Snow and Blowing Snow
Overcast 800'
0.75sm
Calm
LIFR
8:00 PM CST - 3:00 AM CST
Snow and Blowing Snow
Obscured
0.5sm
050° 25kts
Gusts 35kts
IFR
Temporary 8:00 PM CST - 3:00 AM CST
Light Snow
Overcast 1,000'
2sm
Calm
IFR
3:00 AM CST - 6:00 AM CST
Light Snow and Blowing Snow
Overcast 1,200'
1sm
010° 20kts
Gusts 30kts
MVFR
Temporary 3:00 AM CST - 6:00 AM CST
Light Snow and Blowing Snow
Overcast 2,000'
3sm
Calm
TAF CYBR 172341Z 1800/1812 05025G35KT 2SM -SNPL OVC010
   TEMPO 1800/1802 3/4SM -SN BLSN OVC008
   FM180200 05025G35KT 1/2SM SN BLSN VV006
   TEMPO 1802/1809 2SM -SN OVC010
   FM180900 01020G30KT 1SM -SN BLSN OVC012
   TEMPO 1809/1812 3SM -SN BLSN OVC020 RMK NXT FCST BY 180600Z
S28
EffectiveExpiresCategoryNOTAM
Domestic
11/6/25
1409Z
12/31/25
1400Z
!GFK 11/036 S28 AD AP CAUTION PILOTS DEPARTING OR ARRIVING
INTL PEACE GARDEN ARPT (S28) AND OPERATING BELOW 500FT AGL IN
CANADIAN AIRSPACE ARE ADVISED OF ACTIVE ROYAL CANADIAN MOUNTED POLICE
(RCMP) REMOTELY PILOTED ACFT SYSTEM (RPAS) CORRIDOR EXTENDING 1NM
NORTH OF THE CANADA/US BORDER. PILOTS SHOULD NOTIFY RCMP IN ADVANCE
OF OPS WITHIN THIS AREA TO ENHANCE SITUATIONAL AWARENESS AND AVOID
MID-AIR CONFLICT. ADVANCE NOTICE: NWRRPAS-NWRSAT@RCMP-GRC.GC.CA
SAME-DAY COORDINATION (24/7): MANITOBA RCMP 1-888-626-4238. 2511061409-2512311400
10/27/25
1242Z
12/31/25
2359Z
!GFK 10/257 S28 OBST TOWER LGT (ASR 1265195) 485705.00N1001002.60W (5.6NM WSW S28) 2550.9FT (339.9FT AGL) U/S 2510271242-2512312359
No
UNATNDD
CUSTOMS PSNL ONW/DALGT/KNOW ARPT CONDS. 701-263-4513 (US) AND 204-534-6820 (CANADIAN).
NORTH DAKOTA STATE AERO COMMISSION
PO BOX 5020
BISMARCK, ND 58502
Phone: 701-328-9650
KYLE WANNER
PO BOX 5020
BISMARCK, ND 58502
Phone: 701-328-9650
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
GFK
--
--
N/A
Yes
Yes
No
Tie-Down
Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 11/29

3005 ft. x 60 ft.
ASPH
Fair
NONE


12,000lbs
--
--
--
  Runway 11 Runway 29
True Heading 112°292°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 48° 59' 56"N 48° 59' 45"N
Longitude 100° 02' 58"W 100° 02' 16"W
Elevation 2,315' 2,316'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1UNICOM IN CUSTOMS OFFICE.
A110-3SNOW PLOWED IRREG - CONFIRM WINTER COND PRIOR TO USE 701-328-9650 MON-FRI 0800-1700.
A110-4DEER & BIRDS ON & INVOF ARPT.
A110-5RY 11 HAS -20 FT DROPOFF 400 FT FM THLD.
A110-8(A76) US & CANADIAN CUSTOMS SVC AVBL.
A110-9FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
INTL PEACE GARDEN (IATA: S28) is a public airport located in DUNSEITH, ND.
