SPRINGER MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

S42
Local S42
SPRINGER MUNI
PublicPUB

1 miles S of SPRINGER, NM, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 19' 53"N 104° 37' 04"W
Elevation
5894' MSL
Pattern Alt
6894' MSL
Mag Variation
7°E
Declination
11°E
Fuel
None Listed
FSS
ALBUQUERQUE (ABQ)
Sectional
DENVER
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
6/11/26-7/9/26
KRTN (25nm) VFR
5:53 PM MDT
Broken 11,000'
10sm
81°F
43°F
29.98"Hg
170° 11kts
AO2 PK WND 21035/2309 SLP062 T02720061 10339 20272 57005
METAR KRTN 252353Z AUTO 17011KT 10SM BKN110 27/06 A2998 RMK AO2 PK WND 21035/2309 SLP062 T02720061 10339 20272 57005
+ Add Your Business

S42 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT MIRL RWY 01/19 - CTAF. MIRL RWY 01/19 PRESET LOW INTST; INCR INTST - CTAF.

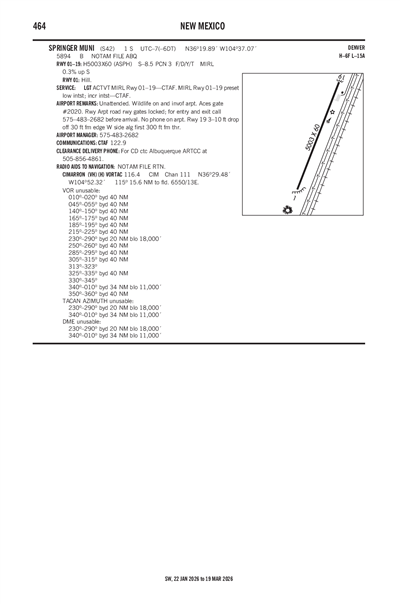

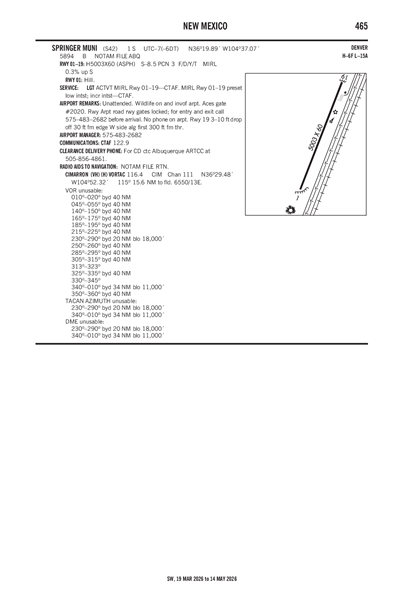

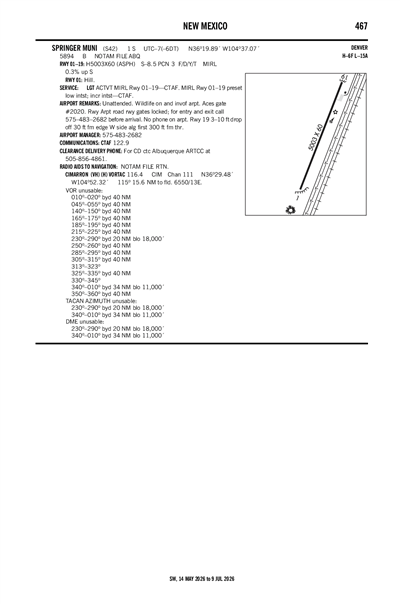

FAA A/FD Pages

Terminal Area Forecast

KSAF (84nm)
Thu, 6/25 5:25 PM MDT
Thu, 6/25 6:00 PM MDT - Fri, 6/26 6:00 PM MDT
VFR
Temporary 6:00 PM MDT - 9:00 PM MDT
Light Thunderstorm and Rain
Overcast 7,000'
6sm
VRB° 20kts
Gusts 35kts
VFR
6:00 PM MDT - 1:00 AM MDT
Showers in vicinity
Broken 12,000'
Scattered 8,000'
6sm
250° 11kts
VFR
1:00 AM MDT - 12:00 PM MDT
Broken 12,000'
6sm
050° 6kts
VFR
12:00 PM MDT - 3:00 PM MDT
Few 9,000'
6sm
250° 10kts
Gusts 16kts
VFR
3:00 PM MDT - 6:00 PM MDT
Scattered 10,000'
6sm
250° 10kts
Gusts 18kts
VFR
3:00 PM MDT - 6:00 PM MDT
Light Thunderstorm and Rain
Broken 9,000'
6sm
VRB° 20kts
Gusts 40kts
TAF KSAF 252325Z 2600/2624 25011KT P6SM VCSH SCT080 BKN120
   TEMPO 2600/2603 VRB20G35KT 6SM -TSRA OVC070CB
   FM260700 05006KT P6SM BKN120
   FM261800 25010G16KT P6SM FEW090
   FM262100 25010G18KT P6SM SCT100
   PROB30 2621/2624 VRB20G40KT 6SM -TSRA BKN090CB
S42
No NOTAM Available
No
UNATNDD
TOWN OF SPRINGER
PO BOX 488
SPRINGER, NM 87747
Phone: 575-483-2682
CRAIG EPPLER
P.O. BOX 488
SPRINGER, NM 87747
Phone: 575-483-2682
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
ABQ
--
ACTVT MIRL RWY 01/19 - CTAF. MIRL RWY 01/19 PRESET LOW INTST; INCR INTST - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 01/19

5003 ft. x 60 ft.
ASPH
Good
NONE
MED
3/F/D/Y/T
8,000lbs
--
--
--
  Runway 01 Runway 19
True Heading 20°200°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 36° 19' 30"N 36° 20' 17"N
Longitude 104° 37' 15"W 104° 36' 54"W
Elevation 5,877' 5,894'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RY ARPT ROAD GATES LOCKED; FOR ENTRY & EXIT CALL 575-483-2682 BEFORE ARRIVAL. NO PHONE ON ARPT.
A110-3WILDLIFE ON & INVOF ARPT.
A110-4FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A110-5ACES GATE #2020.
A16EMERG - 575-707-0265.
A30A-193-10 FT DROP OFF 30 FT FM EDGE W SIDE ALG FIRST 300 FT FM THR.
A81-APTACTVT MIRL RWY 01/19 - CTAF. MIRL RWY 01/19 PRESET LOW INTST; INCR INTST - CTAF.
SPRINGER MUNI (IATA: S42) is a public airport located in SPRINGER, NM, US.
