iFlightPlanner



...

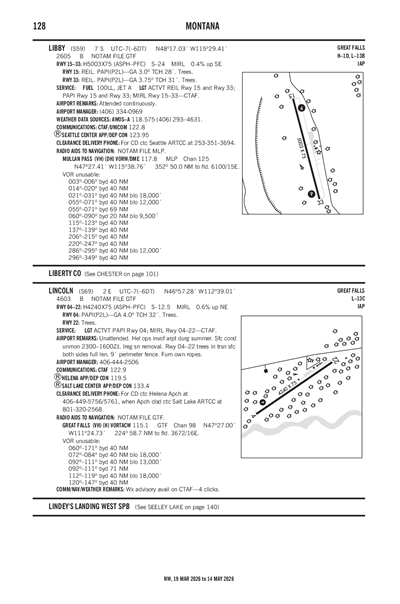

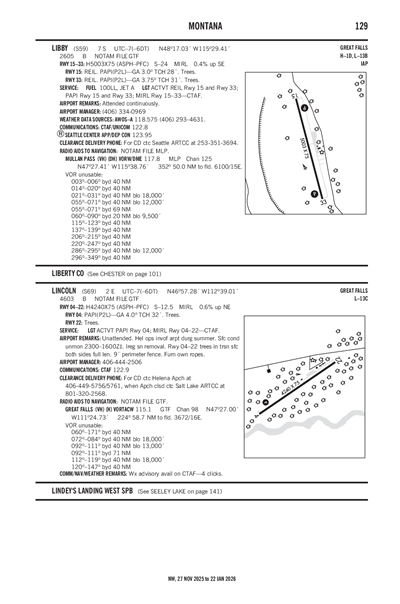

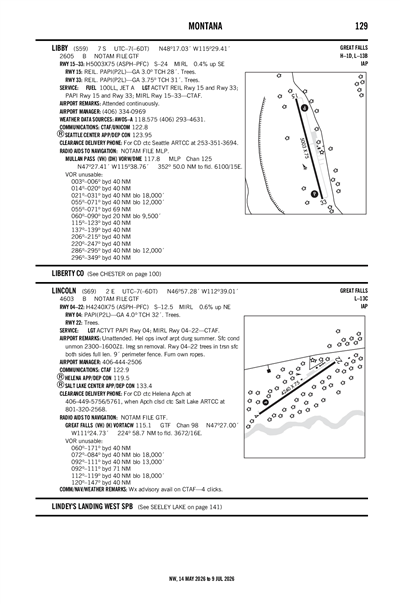

LINCOLN - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

S69
Local S69
LINCOLN
PublicPUB

2 miles E of LINCOLN, MT, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
46° 57' 17"N 112° 39' 01"W
Elevation
4603' MSL
Pattern Alt
5603' MSL
Mag Variation
12°E
Declination
12°E
Fuel
None Listed
FSS
GREAT FALLS (GTF)
Sectional
GREAT FALLS
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
4/16/26-5/14/26
K1GM (32nm) MVFR
3:25 PM MDT
Light Snow
Broken 5,500'
Broken 2,900'
Few 2,400'
Few 1,900'
3sm
32°F
27°F
N/A
270° 7kts
AO2 SNE2055RAB11E13PLB13E15SNB15 SLPNO $
SPECI K1GM 242125Z AUTO 27007KT 3SM -SN FEW019 FEW024 BKN029 BKN055 OVC065 00/M03 M RMK AO2 SNE2055RAB11E13PLB13E15SNB15 SLPNO $
+ Add Your Business

S69 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT PAPI RWY 04; MIRL RWY 04/22 - CTAF.; WX ADVISORY AVAIL ON CTAF - 4 CLICKS.

Approach

HELENA APPROACH 119.5

Departure

HELENA DEPARTURE 119.5

Center

HELENA CENTER 133.4
LOW, APCH/DEP SVC PRVDD BY SALT LAKE ARTCC (ZLC) ON FREQS 133.4/285.4 (BUTTE RCAG) WHEN HELENA APCH CLSD.

FAA A/FD Pages

Airport Minimums

Departure Procedures

Terminal Area Forecast

KHLN (34nm)
Fri, 4/24 11:50 AM MDT
Fri, 4/24 12:00 PM MDT - Sat, 4/25 12:00 PM MDT
VFR
12:00 PM MDT - 9:00 PM MDT
Broken 5,000'
Scattered 2,500'
6sm
340° 9kts
Gusts 15kts
MVFR
4:00 PM MDT - 6:00 PM MDT
Light Showers and Snow
Broken 2,500'
Scattered 1,500'
3sm
Calm
VFR
9:00 PM MDT - 10:00 AM MDT
Broken 3,500'
Scattered 2,500'
6sm
VRB° 6kts
VFR
10:00 AM MDT - 12:00 PM MDT
Broken 9,000'
Scattered 5,000'
6sm
340° 9kts
TAF KHLN 241750Z 2418/2518 34009G15KT P6SM SCT025 BKN050
   PROB30 2422/2424 3SM -SHSN SCT015 BKN025
   FM250300 VRB06KT P6SM SCT025 BKN035
   FM251600 34009KT P6SM SCT050 BKN090
S69
EffectiveExpiresCategoryNOTAM
Domestic
1/3/25
2139Z
!GTF 01/105 S69 AD AP SFC COND NOT REP 2501032139-PERM
No
UNATNDD
MONTANA AERONAUTICS DIVISION
PO BOX 200507
HELENA, MT 59620
Phone: 406-444-2506
TIM CONWAY
PO BOX 200507
HELENA, MT 59620
Phone: 406-444-2506
GREAT FALLS FSS (GTF)
Toll Free: 1-800-WX-BRIEF
GTF
--
ACTVT PAPI RWY 04; MIRL RWY 04/22 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 04/22

4240 ft. x 75 ft.
ASPH
Excellent
PFC
MED

12,000lbs
--
--
--
  Runway 04 Runway 22
True Heading 56°236°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 46° 57' 05"N 46° 57' 29"N
Longitude 112° 39' 26"W 112° 38' 36"W
Elevation 4,576' 4,603'
Threshold Crossing Height 32 ft. AGL --
Visual Glide Path Angle 4° --
Visual Slope Indicator P2L --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1SFC COND UNMON 1600-0900. IREG SN REMOVAL. SEE HTTPS://WEATHERCAMS.FAA.GOV/
A110-3HEL OPS INVOF ARPT DURG SUMMER.
A110-59 FT PERIMETER FENCE.
A110-6FOR CD CTC HELENA APCH AT 406-449-5756/5761, WHEN APCH CLSD CTC SALT LAKE ARTCC AT 801-320-2568.
A110-7WX ADVISORY AVAIL ON CTAF - 4 CLICKS.
A30-04/22TREES IN TRSN SFC BOTH SIDES FULL LEN.
A75-TFURN OWN ROPES.
A81-APTACTVT PAPI RWY 04; MIRL RWY 04/22 - CTAF.
LINCOLN (IATA: S69) is a public airport located in LINCOLN, MT, US.
