iFlightPlanner



...

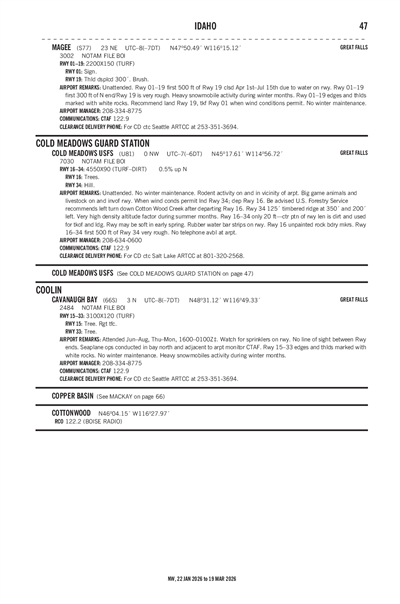

MAGEE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

S77
Local S77
MAGEE
PublicPUB

23 miles NE of COEUR D'ALENE, ID, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
47° 50' 30"N 116° 15' 07"W
Elevation
3002' MSL
Pattern Alt
4002' MSL
Mag Variation
14°E
Declination
19°E
Fuel
None Listed
FSS
BOISE (BOI)
Sectional
GREAT FALLS
ARTCC
SEATTLE (ZSE)
Data Effective
5/14/26-6/11/26
KCOE (24nm) VFR
12:56 AM PDT
Overcast 7,500'
10sm
57°F
54°F
30.01"Hg
160° 6kts
AO2 RAE41 SLP167 T01390122 402390100 PNO $
METAR KCOE 040756Z AUTO 16006KT 10SM OVC075 14/12 A3001 RMK AO2 RAE41 SLP167 T01390122 402390100 PNO $
+ Add Your Business

S77 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KCOE (24nm)
Wed, 6/3 10:35 PM PDT
Wed, 6/3 11:00 PM PDT - Thu, 6/4 11:00 PM PDT
VFR
11:00 PM PDT - 12:00 AM PDT
Light Showers and Rain
Broken 6,000'
N/A
Calm
VFR
11:00 PM PDT - 3:00 AM PDT
Broken 9,000'
6sm
VRB° 3kts
VFR
3:00 AM PDT - 8:00 AM PDT
Scattered 9,000'
6sm
190° 5kts
VFR
8:00 AM PDT - 10:00 AM PDT
Scattered 3,000'
6sm
200° 10kts
VFR
10:00 AM PDT - 5:00 PM PDT
Scattered 5,000'
6sm
230° 11kts
Gusts 19kts
VFR
5:00 PM PDT - 11:00 PM PDT
Broken 25,000'
6sm
230° 10kts
TAF KCOE 040535Z 0406/0506 VRB03KT P6SM BKN090
   PROB30 0406/0407 -SHRA BKN060
   FM041000 19005KT P6SM SCT090
   FM041500 20010KT P6SM SCT030
   FM041700 23011G19KT P6SM SCT050
   FM050000 23010KT P6SM BKN250
S77
No NOTAM Available
No
UNATNDD
STATE OF IDAHO/ITD-DIV OF AERONAUTI
BOX 7129
BOISE, ID 83707
Phone: 208-334-8775
DIV OF AERONAUTICS
BOX 7129
BOISE, ID 83707
Phone: 208-334-8775
BOISE FSS (BOI)
Toll Free: 1-800-WX-BRIEF
BOI
--
--
N/A
Yes
Yes
No
Tie-Down
No
None
None
None
None
None

Runway 01/19

2200 ft. x 150 ft.
TURF
Good
NONE


--
--
--
--
  Runway 01 Runway 19
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1NO WINTER MAINT.
A110-2RCMD LAND RWY 19; TKOF RWY 01 WHEN WIND CONDS PERMIT.
A110-4HEAVY SNOWMOBLILE ACTIVITY DURING WINTER MONTHS.
A110-6FOR CD CTC SEATTLE ARTCC AT 253-351-3694.
A30-01/19RWY 01/19 FIRST 500 FT OF RWY 19 CLSD APR 1ST - JUL 15TH DUE TO WATER ON RWY.
A33-01/19_CONDFIRST 300 FT OF N END/RWY 19 IS VERY ROUGH.
A42-19_MARK01/19 EDGES & THRS MARKED WITH WHITE ROCKS.
A52-01+14 FT ROAD AT 65 FT ON CNTRLN.
E111ESTABD PRIOR TO 5/15/59.
MAGEE (IATA: S77) is a public airport located in COEUR D'ALENE, ID, US.
