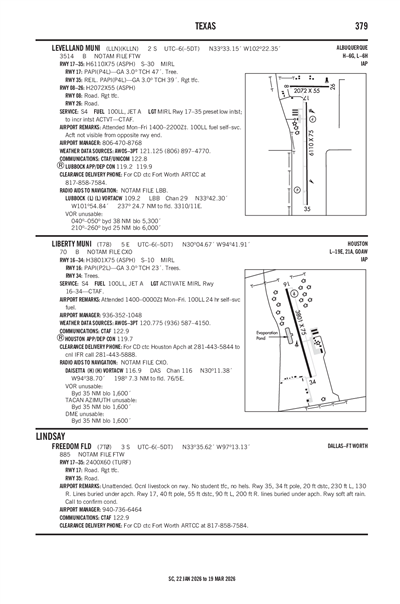

LIBERTY MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

T78
Local T78
LIBERTY MUNI
PublicPUB

5 miles E of LIBERTY, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
30° 04' 40"N 94° 41' 55"W
Elevation
70' MSL
Pattern Alt
1070' MSL
Mag Variation
2°E
Declination
5°E
Fuel
JET A, 100LL
FSS
MONTGOMERY COUNTY (CXO)
Sectional
HOUSTON
ARTCC
HOUSTON (ZHU)
Data Effective
5/14/26-6/11/26
KT78 IFR
8:35 AM CDT
Broken 2,000'
Broken 600'
9sm
77°F
75°F
30.01"Hg
050° 8kts
AO2
METAR KT78 041335Z AUTO 05008KT 9SM BKN006 BKN020 25/24 A3001 RMK AO2
+ Add Your Business

T78 FBOs

Promote Listing
Liberty Municipal Airport
UNICOM: 122.9
Phone: (281) 660-2337
Other: (936) 336-3684
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 6/2
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.30 5.80
Full Serve
Fuel Notes
Prices include tax
JET A is premixed with Prist (FSII).
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 120.775
(936) 587-4150

Common

CTAF 122.9
ACTVT MIRL RWY 16/34 - CTAF.

Arrival

HUDZY STAR 120.05
PIEGY RNAV STAR 119.7
RIICE STAR 124.35

Approach

HOUSTON APPROACH 119.7

Departure

BLTWY RNAV DP 119.7
BORRN RNAV DP 119.7
DREMR DP 119.7
HOODO RNAV DP 119.7
HOUSTON DEPARTURE 119.7
INDIE RNAV DP 119.7
KARRR RNAV DP 119.7
LURIC RNAV DP 119.7
MMALT RNAV DP 119.7
STRYA DP 119.7
STYCK DP 119.7
WATFO DP 119.7
WYLSN RNAV DP 119.7

Terminal Area Forecast

KIAH (35nm)
Thu, 6/4 6:27 AM CDT
Thu, 6/4 7:00 AM CDT - Fri, 6/5 1:00 PM CDT
IFR
7:00 AM CDT - 10:00 AM CDT
Showers in vicinity
Broken 1,500'
Broken 600'
6sm
VRB° 5kts
MVFR
10:00 AM CDT - 1:00 PM CDT
Showers in vicinity
Broken 2,000'
Scattered 1,500'
6sm
100° 8kts
MVFR
Temporary 1:00 PM CDT - 5:00 PM CDT
Thunderstorm and Rain and Mist
Broken 3,500'
4sm
Calm
VFR
1:00 PM CDT - 8:00 PM CDT
Thunderstorm in vicinity
Broken 3,500'
Scattered 2,500'
6sm
100° 10kts
VFR
8:00 PM CDT - 10:00 PM CDT
Showers in vicinity
Broken 3,500'
Scattered 2,500'
6sm
100° 9kts
MVFR
10:00 PM CDT - 11:00 AM CDT
Showers in vicinity
Broken 2,500'
Scattered 2,000'
6sm
090° 7kts
MVFR
1:00 AM CDT - 5:00 AM CDT
Thunderstorm and Rain
Broken 1,500'
4sm
Calm
VFR
11:00 AM CDT - 1:00 PM CDT
Showers in vicinity
Broken 3,500'
Scattered 2,500'
6sm
090° 7kts
TAF KIAH 041127Z 0412/0518 VRB05KT P6SM VCSH BKN006 BKN015
   FM041500 10008KT P6SM VCSH SCT015 BKN020
   FM041800 10010KT P6SM VCTS SCT025 BKN035CB
   TEMPO 0418/0422 4SM TSRA BR BKN035CB
   FM050100 10009KT P6SM VCSH SCT025 BKN035
   FM050300 09007KT P6SM VCSH SCT020 BKN025
   PROB30 0506/0510 4SM TSRA BKN015CB
   FM051600 09007KT P6SM VCSH SCT025 BKN035
T78
EffectiveExpiresCategoryNOTAM
Domestic
6/3/26
1220Z
9/1/26
1220Z
!CXO 06/077 T78 OBST TOWER LGT (ASR 1001001) 300118.50N0944734.40W (6.0NM SW T78) 325.8FT (299.9FT AGL) U/S 2606031220-2609011220
6/2/26
0739Z
8/31/26
0400Z
!CXO 06/034 T78 OBST TOWER LGT (ASR 1064933) 300623.20N0944247.30W (1.9NM NNW T78) 240.8FT (169.9FT AGL) U/S 2606020739-2608310400
5/29/26
0045Z
8/26/26
0400Z
!CXO 05/774 T78 OBST TOWER LGT (ASR 1202688) 300329.00N0944505.00W (3.0NM WSW T78) 284.8FT (212.9FT AGL) U/S 2605290045-2608260400
5/24/26
0855Z
7/8/26
0854Z
!CXO 05/628 T78 OBST TOWER LGT (ASR 1247890) 300102.20N0943247.90W (8.7NM ESE T78) 2048.9FT (1993.8FT AGL) U/S 2605240855-2607080854
5/20/26
1033Z
9/17/26
1033Z
!CXO 05/490 T78 OBST TOWER LGT (ASR 1022588) 300032.10N0944015.80W (4.3NM SSE T78) 366.1FT (309.1FT AGL) U/S 2605201033-2609171033
5/12/26
1102Z
8/10/26
0400Z
!CXO 05/278 T78 OBST TOWER LGT (ASR 1047077) 295817.80N0943549.70W (8.2NM SE T78) 343.8FT (292.0FT AGL) U/S 2605121102-2608100400
4/22/26
1337Z
6/6/26
1337Z
!CXO 04/466 T78 OBST TOWER LGT (ASR 1319840) 301124.16N0943023.16W (12.1NM NE T78) 267FT (210FT AGL) U/S 2604221337-2606061337
4/18/26
1500Z
7/17/26
0400Z
!CXO 04/370 T78 OBST TOWER LGT (ASR 1046984) 300239.70N0944739.00W (5.4NM WSW T78) 399.0FT (379.9FT AGL) U/S 2604181500-2607170400
4/13/26
1350Z
7/12/26
0400Z
!CXO 04/251 T78 OBST TOWER LGT (ASR 1244822) 300310.60N0945905.00W (15.1NM W T78) 333.0FT (254.9FT AGL) U/S 2604131350-2607120400
FDC
3/12/25
1402Z
!FDC 5/2019 T78 SID LIBERTY MUNI, LIBERTY, TX.
KARRR SEVEN DEPARTURE (RNAV)...
CORPUS CHRISTI TRANSITION YOMOM TO CRP VORTAC MOCA 1600.
TRUAX TRANSITION,WWREN TRANSITION KAVCY TO RIIGG MOCA 2100.
ALL OTHER DATA REMAINS AS PUBLISHED. 2503121402-2703121402EST
No
MON-FRI 0800-1600
CITY OF LIBERTY
1829 SAM HOUSTON
LIBERTY, TX 77575
Phone: 936-336-3684
MARK BUSH
1829 SAM HOUSTON
LIBERTY, TX 77575
Phone: 936-352-1048
MONTGOMERY COUNTY FSS (CXO)
Toll Free: 1-800-WX-BRIEF
CXO
--
ACTVT MIRL RWY 16/34 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Ambulance

Runway 16/34

3801 ft. x 75 ft.
ASPH
Good
NONE
MED

10,000lbs
--
--
--
  Runway 16 Runway 34
True Heading 166°346°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 30° 04' 58"N 30° 04' 22"N
Longitude 94° 42' 00"W 94° 41' 49"W
Elevation 69' 69'
Threshold Crossing Height 23 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P2L --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-3FOR CD CTC HOUSTON APCH AT 281-443-5844 TO CNL IFR CALL 281-443-5888.
A57-16OBSTN EXCEEDS 45 DEG ANGLE.
A58-1610 FT FENCE, 0-199 FT DSTC, 245 FT R.
A70-100LL24 HR SELF-SVC FUEL.
A81-APTACTVT MIRL RWY 16/34 - CTAF.
LIBERTY MUNI (IATA: T78) is a public airport located in LIBERTY, TX, US.
