iFlightPlanner



...

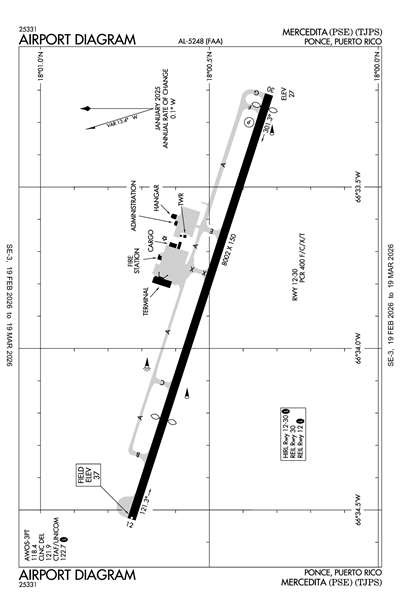

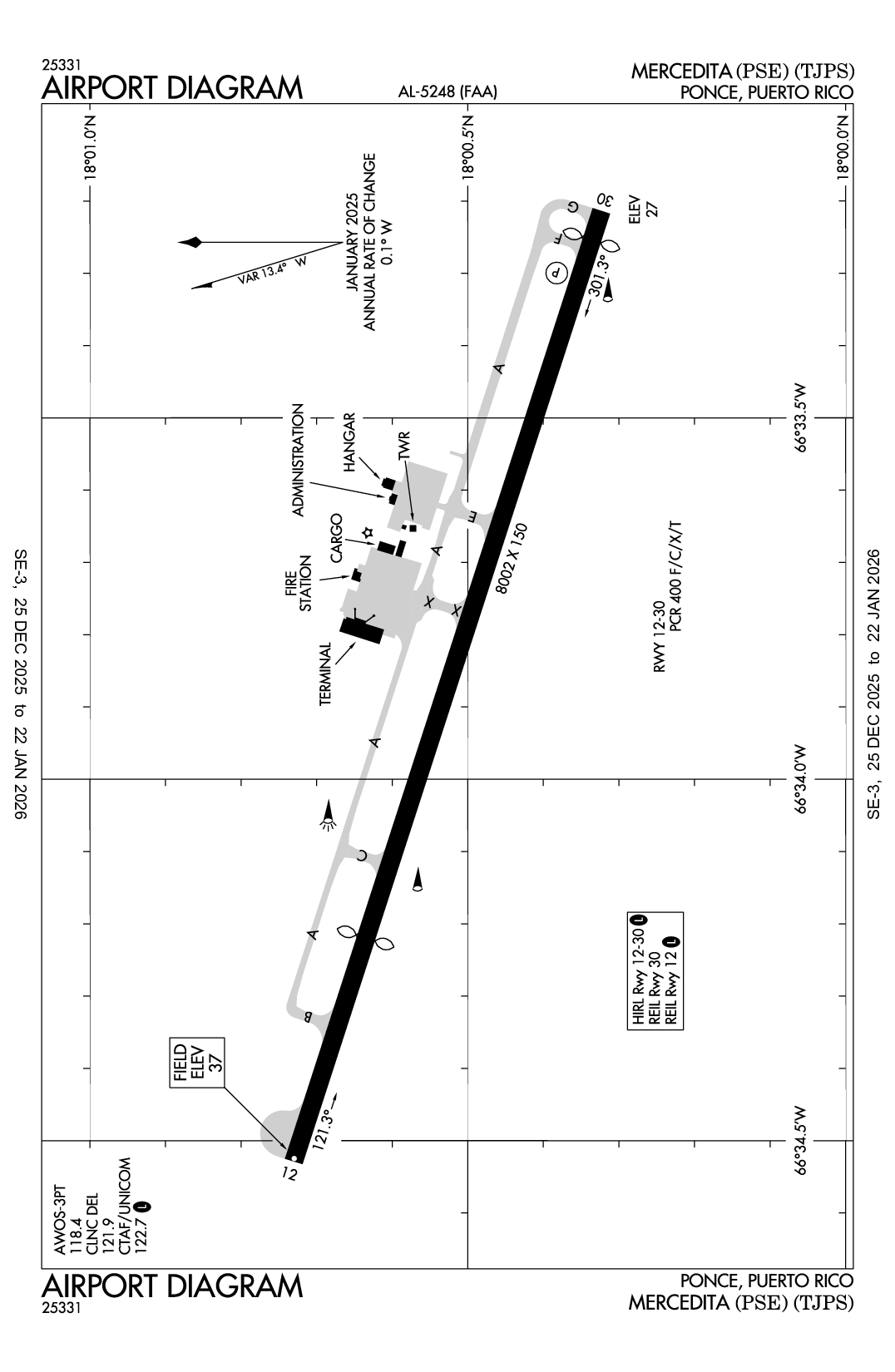

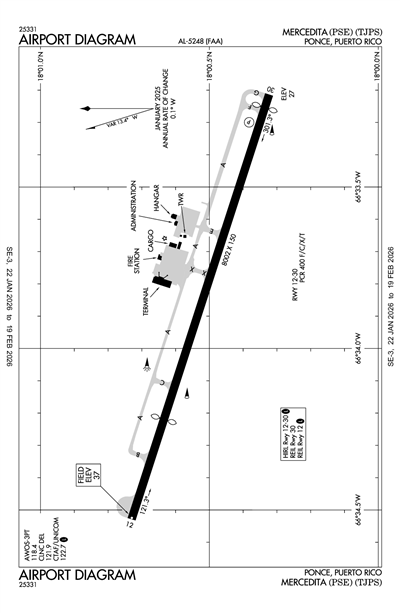

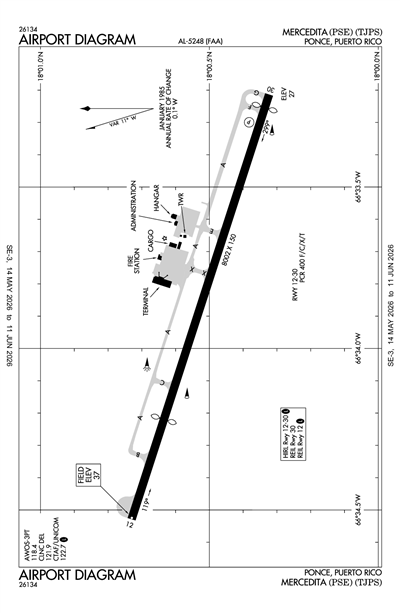

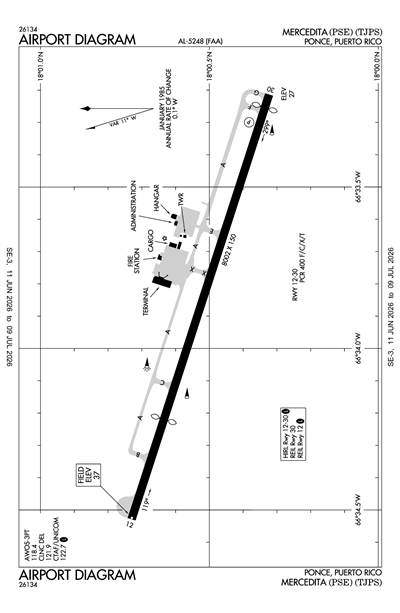

MERCEDITA - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

TJPS
ICAO TJPSIATA PSELocal PSE
MERCEDITA
PublicPUB

3 miles E of PONCE, PR, Puerto Rico
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
18° 00' 32"N 66° 33' 52"W
Elevation
37' MSL
Pattern Alt
1037' MSL
Mag Variation
13°W
Declination
11°W
Fuel
JET A, 100LL
FSS
SAN JUAN (SJU)
Sectional
PUERTO RICO-VIRGIN ISLANDS
ARTCC
SAN JUAN (ZSU)
Data Effective
6/11/26-7/9/26
TJPS VFR
6:35 PM AST
Clear
8sm
86°F
75°F
30.02"Hg
120° 10kts
Gusts 16kts
AO2
METAR TJPS 252235Z AUTO 12010G16KT 8SM CLR 30/24 A3002 RMK AO2
+ Add Your Business

TJPS FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 118.4
(787) 843-0444

Common

CTAF 122.7
UNICOM 122.7
HIRL RWY 12/30 PRESET MED INTST DUSK-2200; TO INCR INTST & ACTVT HIRL RWY 12/30 AND REIL RWY 12 AFTER 2200 - UNICOM 122.70. PAPI RWY 30 OPER CONT.

Center

SAN JUAN CERAP CENTER 118.75
LOW/HIGH, APCH/DEP SVC PRVDD BY SAN JUAN CERAP ON FREQS 118.75/269.0 (EL YUNQUE RCAG).

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

TJPS
Thu, 6/25 1:50 PM AST
Thu, 6/25 2:00 PM AST - Fri, 6/26 2:00 PM AST
VFR
2:00 PM AST - 7:00 PM AST
Haze
Sky Clear
6sm
140° 18kts
Gusts 25kts
VFR
7:00 PM AST - 11:00 PM AST
Haze
Scattered 5,000'
Scattered 4,000'
6sm
110° 12kts
VFR
11:00 PM AST - 10:00 AM AST
Haze
Scattered 5,000'
Few 2,500'
6sm
090° 7kts
VFR
10:00 AM AST - 1:00 PM AST
Haze
Few 2,500'
6sm
070° 10kts
Gusts 20kts
VFR
1:00 PM AST - 2:00 PM AST
Haze
Scattered 4,000'
Few 3,000'
6sm
120° 17kts
Gusts 27kts
TAF TJPS 251750Z 2518/2618 14018G25KT 6SM HZ SKC
   FM252300 11012KT 6SM HZ SCT040 SCT050
   FM260300 09007KT 6SM HZ FEW025 SCT050
   FM261400 07010G20KT 6SM HZ FEW025
   FM261700 12017G27KT 6SM HZ FEW030 SCT040
TJPS
EffectiveExpiresCategoryNOTAM
Domestic
6/25/26
1455Z
9/25/26
2000Z
!TJPS 06/017 PSE TWY A3 HLDG PSN SIGN FOR RWY 12/30 NOT STD DUE TO CHANGING OF SIGN 2606251455-2609252000
6/25/26
1454Z
9/25/26
2000Z
!TJPS 06/016 PSE TWY A1 SFC PAINTED HLDG PSN SIGNS NOT STD DUE TO CHANGING HLDG PSN SIGN 2606251454-2609252000
6/24/26
1600Z
9/22/26
1600Z
!TJPS 06/015 PSE OBST TOWER LGT (ASR 1208197) 181310.60N0662443.40W (16.1NM NE PSE) 3183.1FT (274.9FT AGL) U/S 2606241600-2609221600
6/24/26
1600Z
9/22/26
1600Z
!TJPS 06/014 PSE OBST TOWER LGT (ASR 1225721) 180440.70N0662157.10W (12.7NM ENE PSE) 872.0FT (211.0FT AGL) U/S 2606241600-2609221600
6/24/26
0317Z
7/9/26
0317Z
!TJPS 06/013 PSE OBST TOWER LGT (ASR 1292981) 180058.50N0663147.00W (2.1NM ENE PSE) 232.0FT (169.9FT AGL) U/S 2606240317-2607090317
6/23/26
1712Z
7/8/26
1612Z
!TJPS 06/012 PSE OBST TOWER LGT (ASR 1226413) 180413.40N0662349.70W (10.8NM ENE PSE) 1179.8FT (256.9FT AGL) U/S 2606231712-2607081612
6/22/26
1100Z
7/31/26
2000Z
!TJPS 06/011 PSE TWY A BTN A1 AND A3 WIP CONST 2606221100-2607312000
6/22/26
1100Z
7/31/26
2000Z
!TJPS 06/010 PSE RWY 12/30 WIP CONST NORTH SIDE 2606221100-2607312000
6/21/26
0415Z
9/19/26
0415Z
!TJPS 06/009 PSE OBST TOWER LGT (ASR 1291779) 180120.60N0663217.10W (1.8NM ENE PSE) 237.5FT (155.8FT AGL) U/S 2606210415-2609190415
6/20/26
1051Z
9/19/26
0400Z
!TJPS 06/008 PSE OBST TOWER LGT (ASR 1221676) 180051.30N0664402.60W (9.8NM W PSE) 607.0FT (254.9FT AGL) U/S 2606201051-2609190400
6/12/26
0448Z
6/27/26
0348Z
!TJPS 06/006 PSE OBST TOWER LGT (ASR 1013620) 181003.10N0663435.80W (9.4NM N PSE) 4583.7FT (302.8FT AGL) U/S 2606120448-2606270348
6/11/26
0456Z
9/9/26
0456Z
!TJPS 06/005 PSE OBST TOWER LGT (ASR 1017057) 181020.70N0663530.10W (9.7NM N PSE) 4572.2FT (225.1FT AGL) U/S 2606110456-2609090456
6/2/26
1304Z
8/31/26
1304Z
!TJPS 06/002 PSE OBST TOWER LGT (ASR 1227457) 180902.50N0664112.40W (10.4NM NW PSE) 3016.1FT (266.1FT AGL) U/S 2606021304-2608311304
6/1/26
1417Z
8/30/26
1417Z
!TJPS 06/001 PSE OBST TOWER LGT (ASR 1256602) 180211.80N0664833.40W (14.1NM W PSE) 461.9FT (210.0FT AGL) U/S 2606011417-2608301417
5/26/26
2000Z
5/26/27
2000Z
!TJPS 05/036 PSE TWY A BTN TWY E AND TWY G CLSD 2605262000-2705262000
5/26/26
1213Z
7/16/26
1450Z
!TJPS 05/032 PSE TWY E NOW TWY A3 2605261213-2607161450
5/16/26
0834Z
6/30/26
0833Z
!TJPS 05/022 PSE OBST TOWER LGT (ASR 1204272) 180219.80N0663901.00W (5.1NM WNW PSE) 596.8FT (257.9FT AGL) U/S 2605160834-2606300833
5/11/26
1525Z
8/9/26
0400Z
!TJPS 05/015 PSE OBST TOWER LGT (ASR 1230698) 180229.10N0663131.10W (3.2NM NE PSE) 731.0FT (254.9FT AGL) U/S 2605111525-2608090400
5/8/26
1115Z
8/6/26
0400Z
!TJPS 05/011 PSE OBST TOWER LGT (ASR 1205951) 180728.40N0661538.40W (19.6NM ENE PSE) 2583.0FT (205.1FT AGL) U/S 2605081115-2608060400
5/4/26
1847Z
7/4/26
2359Z
!TJPS 05/002 PSE OBST TOWER LGT (ASR 1231838) 180441.00N0664454.00W (11.0NM WNW PSE) 2261.2FT (243.1FT AGL) U/S 2605041847-2607042359
4/16/26
1451Z
7/16/26
1450Z
!TJPS 04/012 PSE TWY C NOW A2 2604161451-2607161450
4/16/26
1450Z
7/16/26
1449Z
!TJPS 04/011 PSE TWY B NOW TWY A1 2604161450-2607161449
2/12/26
2331Z
2/12/27
2359Z
!TJPS 02/020 PSE OBST JET BLAST FENCE (ASN 2024-ASO-10715-NRA) 180045N0663432W (0.7NM WNW PSE) 86FT (49FT AGL) NOT LGTD 2602122331-2702122359
2/12/26
2330Z
2/12/27
2359Z
!TJPS 02/019 PSE OBST JET BLAST FENCE (ASN 2024-ASO-10714-NRA) 180043N0663433W (0.7NM WNW PSE) 81FT (46FT AGL) NOT LGTD 2602122330-2702122359
2/12/26
2330Z
2/12/27
2359Z
!TJPS 02/018 PSE OBST JET BLAST FENCE (ASN 2024-ASO-10713-NRA) 180046N0663432W (0.7NM WNW PSE) 90FT (50FT AGL) NOT LGTD 2602122330-2702122359
FDC
4/24/25
1249Z
!FDC 5/0553 PSE IAP MERCEDITA, PONCE, PR.
RNAV (GPS) RWY 30 ORIG-D ...
TERMINAL ROUTE: MAZ VOR/DME TO JIREG MINIMUM ALT 5400 2504241249-2704231249EST
8/19/24
1845Z
!FDC 4/1850 PSE SID MERCEDITA, PONCE, PR.
WLFRD TWO DEPARTURE (RNAV)...
TAKE-OFF MINIMUMS: RWY 30: NA - ENVIRONMENTAL.
ALL OTHER DATA REMAINS AS PUBLISHED. 2408191845-2608191845EST
No
ALL
PUERTO RICO PORT AUTH
PO BOX 2829
SAN JUAN, PR 00936
Phone: 787-729-8715
WILLIAM FEBLES
P.O. BOX 670
MERCEDITA, PR 00715
Phone: 787-729-8715
SAN JUAN FSS (SJU)
Toll Free: 1-800-WX-BRIEF
TJPS
--
HIRL RWY 12/30 PRESET MED INTST DUSK-2200; TO INCR INTST & ACTVT HIRL RWY 12/30 AND REIL RWY 12 AFTER 2200 - UNICOM 122.70. PAPI RWY 30 OPER CONT.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
Crop Dusting
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Glider Towing

Runway 12/30

8002 ft. x 150 ft.
ASPH
Fair
GRVD
HIGH

--
--
--
--
  Runway 12 Runway 30
True Heading 108°288°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 18° 00' 44"N 18° 00' 19"N
Longitude 66° 34' 32"W 66° 33' 13"W
Elevation 36' 27'
Threshold Crossing Height -- 53 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-3CUSTOMS AVAILABLE 1200Z TO 2100Z MON-FRI.
A110-4FOR CD IF FREQ ARE OTS CTC SAN JUAN CERAP AT 787-253-8664/8665.
A16EXT 5100 OR 5101
A24FEE FOR OTHER THAN HOME BASED ACFT.
A26PPR 24 HRS FOR INDEX C & ABOVE UNSKED ACR OPNS WITH MORE THAN 30 PSGR SEATS CALL AMGR 787-842-6292.
A34-12/30RWY 30, LAST 1100 FT NOT GROOVED.
A39-12/30PCR VALUE: 400/F/C/X/T
A57-12APCH RATIO 16:1 TO DSPLCD THR.
A81-APTHIRL RWY 12/30 PRESET MED INTST DUSK-2200; TO INCR INTST & ACTVT HIRL RWY 12/30 AND REIL RWY 12 AFTER 2200 - UNICOM 122.70. PAPI RWY 30 OPER CONT.
MERCEDITA (ICAO: TJPS, IATA: PSE) is a public airport located in PONCE, PR, Puerto Rico.
