iFlightPlanner



...

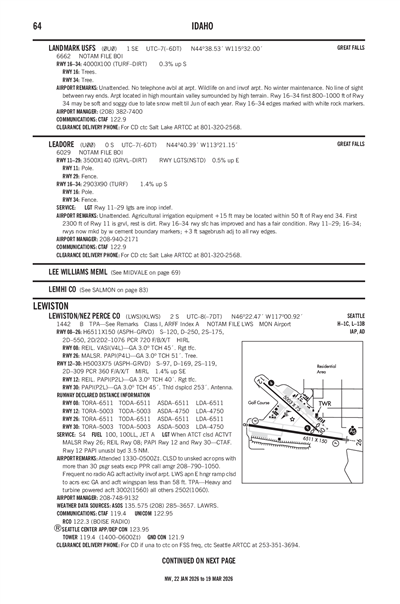

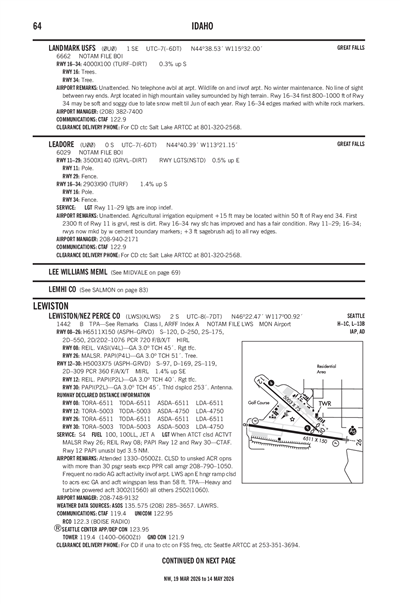

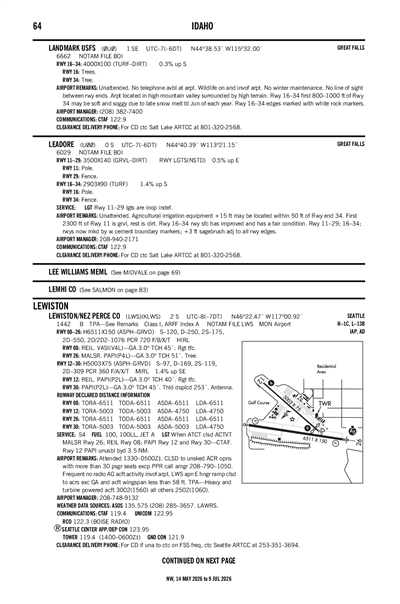

LEADORE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

U00
Local U00
LEADORE
PublicPUB

0 miles S of LEADORE, ID, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
44° 40' 23"N 113° 21' 09"W
Elevation
6029' MSL
Pattern Alt
7029' MSL
Mag Variation
12°E
Declination
17°E
Fuel
None Listed
FSS
BOISE (BOI)
Sectional
GREAT FALLS
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
2/19/26-3/19/26
KSMN (36nm) VFR
10:56 AM MST
Clear
10sm
42°F
17°F
30.34"Hg
VRB° 5kts
AO2 SLP295 T00561083 10056 21033 58006
METAR KSMN 221756Z AUTO VRB05KT 10SM CLR 06/M08 A3034 RMK AO2 SLP295 T00561083 10056 21033 58006
+ Add Your Business

U00 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KSMN (36nm)
Sun, 2/22 10:25 AM MST
Sun, 2/22 11:00 AM MST - Mon, 2/23 11:00 AM MST
VFR
11:00 AM MST - 8:00 PM MST
Few 10,000'
6sm
160° 6kts
Gusts 15kts
VFR
8:00 PM MST - 8:00 AM MST
Scattered 10,000'
6sm
150° 5kts
VFR
8:00 AM MST - 11:00 AM MST
Broken 10,000'
6sm
160° 8kts
Gusts 20kts
TAF KSMN 221725Z 2218/2318 16006G15KT P6SM FEW100
   FM230300 15005KT P6SM SCT100
   FM231500 16008G20KT P6SM BKN100
U00
No NOTAM Available
No
UNATNDD
LEMHI COUNTY
206 COURTHOUSE DR.
SALMON, ID 83467
Phone: 208-742-1667
CHARLES LAMOURE
206 COURT HOUSE DR
SALMON, ID 83467
Phone: 208-940-2171
BOISE FSS (BOI)
Toll Free: 1-800-WX-BRIEF
BOI
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 11/29

3500 ft. x 140 ft.
GRVL DIRT
Fair
NONE
NSTD

--
--
--
--
  Runway 11 Runway 29
True Heading 129°309°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 44° 40' 33"N 44° 40' 12"N
Longitude 113° 21' 24"W 113° 20' 46"W
Elevation 5,997' 6,014'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 16/34

2903 ft. x 90 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 16 Runway 34
True Heading 174°354°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 44° 40' 38"N 44° 40' 10"N
Longitude 113° 21' 15"W 113° 21' 11"W
Elevation 5,988' 6,029'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2RWY 11/29; 16/34; RWYS NOW MKD BY W CEMENT BOUNDARY MARKERS; +3' SAGEBRUSH ADJ TO ALL RWY EDGES.
A110-3AGRICULTURAL IRRIGATION EQUIPMENT +15 FT MAY BE LOCATED WITHIN 50 FT OF RY END 34.
A110-4FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
A33-11/29_SURFFIRST 2300 FT OF RWY 11 IS GRVL, REST IS DIRT.
A33-16/34_CONDRWY SFC HAS IMPROVED AND HAS A FAIR CONDITION.
A40-11/29RWY 11/29 LGTS ARE INOP INDEF.
A52-11NUMEROUS BLDGS IN APCH TO RY 11.
A52-16+17' FT ROAD AT 200 FT ON CNTRLN +30 FT POLE 250 FT 60 FT L; NMRS OTR OBSTNS TO +10 FT AT 100-400 FT IN APCH ZONE.
A52-29+17 FT ROAD AT 400 FT ON CNTRLN, +6 FT FENCE AT 350 FT ON CNTRLN.
E111ESTABD PRIOR TO 15 MAY 1959.
LEADORE (IATA: U00) is a public airport located in LEADORE, ID, US.
