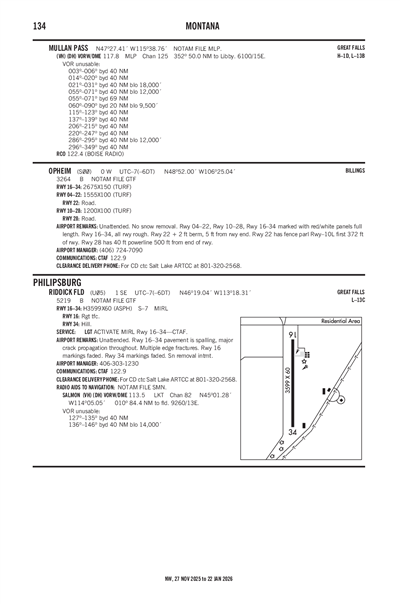

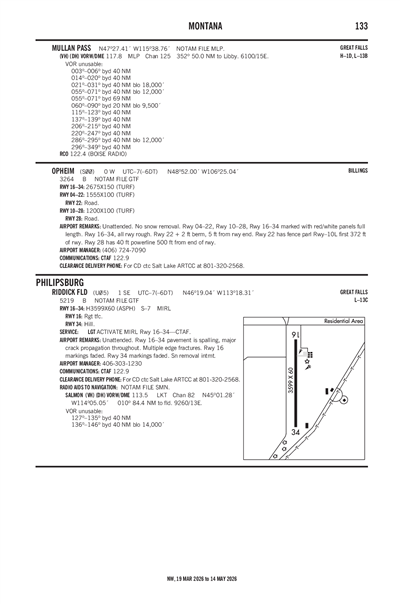

RIDDICK FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

U05
Local U05
RIDDICK FLD
PublicPUB

1 miles SE of PHILIPSBURG, MT, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
46° 19' 02"N 113° 18' 19"W
Elevation
5219' MSL
Pattern Alt
6219' MSL
Mag Variation
13°E
Declination
17°E
Fuel
None Listed
FSS
GREAT FALLS (GTF)
Sectional
GREAT FALLS
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
6/11/26-7/9/26
K3U3 (21nm) VFR
5:55 PM MDT
Broken 13,000'
Scattered 11,000'
10sm
75°F
41°F
29.86"Hg
040° 8kts
AO2 T02370050
METAR K3U3 252355Z AUTO 04008KT 10SM SCT110 BKN130 24/05 A2986 RMK AO2 T02370050
+ Add Your Business

U05 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT MIRL RY 16/34 - CTAF.

FAA A/FD Pages

Terminal Area Forecast

KHRF (34nm)
Thu, 6/25 5:20 PM MDT
Thu, 6/25 6:00 PM MDT - Fri, 6/26 6:00 PM MDT
VFR
6:00 PM MDT - 10:00 PM MDT
Showers in vicinity
Broken 11,000'
6sm
360° 9kts
VFR
10:00 PM MDT - 11:00 AM MDT
Showers in vicinity
Overcast 10,000'
6sm
360° 5kts
VFR
12:00 AM MDT - 5:00 AM MDT
Light Showers and Rain
Broken 7,000'
N/A
310° 6kts
VFR
11:00 AM MDT - 6:00 PM MDT
Light Showers and Rain
Broken 7,000'
6sm
160° 6kts
TAF KHRF 252320Z 2600/2624 36009KT P6SM VCSH BKN110
   FM260400 36005KT P6SM VCSH OVC100
   PROB30 2606/2611 31006KT -SHRA BKN070
   FM261700 16006KT P6SM -SHRA BKN070
U05
EffectiveExpiresCategoryNOTAM
Domestic
4/3/26
0203Z
9/30/26
1330Z
Runway!GTF 04/010 U05 RWY 16/34 CLSD DLY SS-SR 2604030203-2609301330
4/2/26
1647Z
9/30/26
2359Z
!GTF 04/011 U05 AD AP ABN U/S 2604021647-2609302359
No
UNATNDD
GRANITE COUNTY
220 N SANSOME ST PO BOX 925
PHILIPSBURG, MT 59858
Phone: 406-859-3771
DONOVAN JONES
220 N SANSOME ST PO BOX 925
PHILIPSBURG, MT 59858
Phone: 406-303-1230
GREAT FALLS FSS (GTF)
Toll Free: 1-800-WX-BRIEF
GTF
--
ACTVT MIRL RY 16/34 - CTAF.
N/A
BEACON U/S
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 16/34

3599 ft. x 60 ft.
ASPH
Poor
NONE
MED

7,000lbs
--
--
--
  Runway 16 Runway 34
True Heading 180°360°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition POOR POOR
Latitude 46° 19' 20"N 46° 18' 45"N
Longitude 113° 18' 19"W 113° 18' 19"W
Elevation 5,198' 5,219'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
A110-2SN REMOVAL INTMT.
A33-16/34_CONDPAVEMENT IS SPALLING, MAJOR CRACK PROPIGATION THROUGHOUT. MULTIPLE EDGE FRACTURES.
A42-16_CONDMARKINGS FADED
A42-34_CONDMARKINGS FADED
A75-BPROVIDE OWN ROPES.
A80BEACON U/S
A81-APTACTVT MIRL RY 16/34 - CTAF.
RIDDICK FLD (IATA: U05) is a public airport located in PHILIPSBURG, MT, US.
