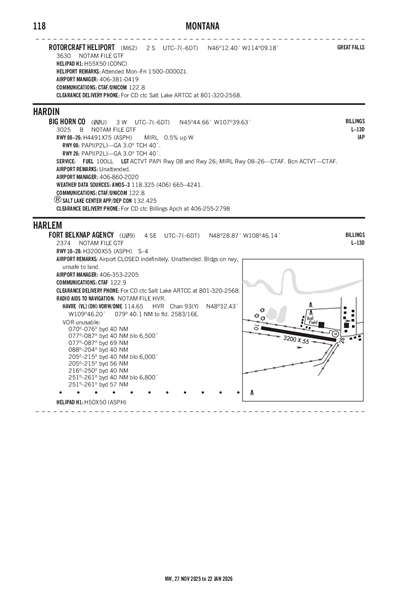

FORT BELKNAP AGENCY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

U09
Local U09
FORT BELKNAP AGENCY
PublicPUB

4 miles SE of HARLEM, MT, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Closed Indefinitely
Coordinates
48° 28' 52"N 108° 46' 09"W
Elevation
2374' MSL
Pattern Alt
3374' MSL
Mag Variation
11°E
Declination
16°E
Fuel
None Listed
FSS
GREAT FALLS (GTF)
Sectional
BILLINGS
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
5/14/26-6/11/26
KM75 (35nm) VFR
11:15 AM MDT
Scattered 11,000'
10sm
64°F
57°F
29.88"Hg
130° 7kts
A01
METAR KM75 041715Z AUTO 13007KT 10SM SCT110 18/14 A2988 RMK A01
+ Add Your Business

U09 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KHVR (40nm)
Thu, 6/4 5:23 AM MDT
Thu, 6/4 6:00 AM MDT - Fri, 6/5 6:00 AM MDT
VFR
6:00 AM MDT - 1:00 PM MDT
Broken 12,000'
Scattered 9,000'
6sm
350° 5kts
VFR
9:00 AM MDT - 1:00 PM MDT
Light Showers and Rain
Broken 6,000'
N/A
Calm
VFR
1:00 PM MDT - 5:00 PM MDT
Broken 12,000'
Scattered 8,000'
6sm
240° 11kts
Gusts 17kts
VFR
5:00 PM MDT - 6:00 AM MDT
Scattered 12,000'
6sm
230° 6kts
TAF KHVR 041123Z 0412/0512 35005KT P6SM SCT090 BKN120
   PROB30 0415/0419 -SHRA BKN060
   FM041900 24011G17KT P6SM SCT080 BKN120
   FM042300 23006KT P6SM SCT120
U09
EffectiveExpiresCategoryNOTAM
Domestic
5/17/26
0300Z
6/25/26
1700Z
!GTF 05/102 U09 OBST TOWER LGT (ASR 1058615) 482712.60N1085451.20W (6.0NM WSW U09) 3350.7FT (760.8FT AGL) U/S 2605170300-2606251700
No
UNATNDD
FORT BELKNAP AGENCY
656 AGENCY MAIN ST
HARLEM, MT 59526
Phone: (406) 353-2205
MARK AZURE
FORT BELKNAP AGENCY 656 AGENCY MAIN ST
HARLEM, MT 59526
Phone: 406-353-2205
GREAT FALLS FSS (GTF)
Toll Free: 1-800-WX-BRIEF
GTF
--
--
N/A
Yes
No
No
None
No
None
None
None
None
None

Runway 10/28

3200 ft. x 55 ft.
ASPH
Failed
NONE


4,000lbs
--
--
--
  Runway 10 Runway 28
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H1

50 ft. x 50 ft.
ASPH
Good
NONE


--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
A16EXT 224.
A33-10/28_CONDBLDGS ON RWY, UNSAFE TO LAND.
A58-10ROAD 30 FEET FROM RUNWAY END
A58-28ROAD ENTERS ONTO END OF RUNWAY
E111FILED FOR RECORD PURPOSES ONLY.
FORT BELKNAP AGENCY (IATA: U09) is a public airport located in HARLEM, MT, US.
