GRAHAM USFS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

U45
Local U45
GRAHAM USFS
PublicPUB

11 miles NW of ATLANTA, ID, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 57' 19"N 115° 16' 21"W
Elevation
5726' MSL
Pattern Alt
6726' MSL
Mag Variation
13°E
Declination
17°E
Fuel
None Listed
FSS
BOISE (BOI)
Sectional
SALT LAKE CITY
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
6/11/26-7/9/26
KSNT (20nm) VFR
6:51 PM MDT
No Clouds
N/A
73°F
33°F
29.96"Hg
VRB° 5kts
AO1 SLP050 T02280006
METAR KSNT 260051Z AUTO VRB05KT 23/01 A2996 RMK AO1 SLP050 T02280006
+ Add Your Business

U45 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

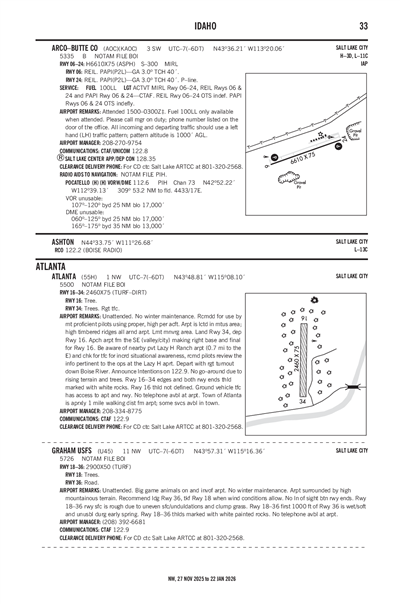

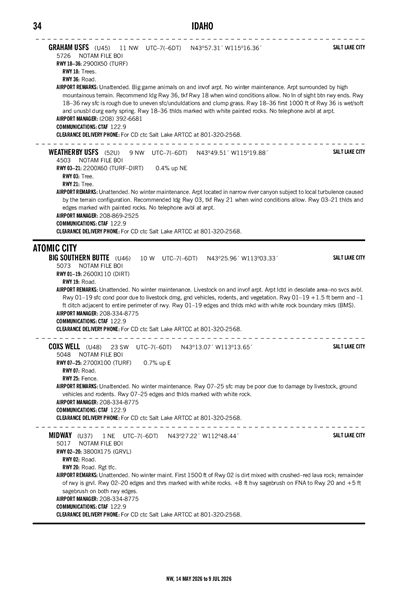

FAA A/FD Pages

Terminal Area Forecast

KBOI (48nm)
Thu, 6/25 5:21 PM MDT
Thu, 6/25 6:00 PM MDT - Fri, 6/26 6:00 PM MDT
VFR
6:00 PM MDT - 9:00 PM MDT
Scattered 15,000'
6sm
330° 10kts
VFR
9:00 PM MDT - 3:00 AM MDT
Broken 12,000'
6sm
VRB° 6kts
VFR
3:00 AM MDT - 7:00 AM MDT
Showers in vicinity
Overcast 10,000'
6sm
300° 16kts
Gusts 26kts
VFR
7:00 AM MDT - 10:00 AM MDT
Light Showers and Rain
Overcast 6,000'
Scattered 3,500'
6sm
320° 15kts
Gusts 25kts
VFR
10:00 AM MDT - 4:00 PM MDT
Light Showers and Rain
Overcast 6,000'
Scattered 3,500'
6sm
330° 9kts
VFR
4:00 PM MDT - 6:00 PM MDT
Showers in vicinity
Broken 6,000'
6sm
VRB° 6kts
TAF KBOI 252321Z 2600/2624 33010KT P6SM SCT150
   FM260300 VRB06KT P6SM BKN120
   FM260900 30016G26KT P6SM VCSH OVC100
   FM261300 32015G25KT P6SM -SHRA SCT035 OVC060
   FM261600 33009KT P6SM -SHRA SCT035 OVC060
   FM262200 VRB06KT P6SM VCSH BKN060
U45
No NOTAM Available
No
UNATNDD
U S FOREST SERVICE
324 25TH ST
OGDEN, UT 84401
Phone: 801-625-5511
COLIN GOOD-FIRE MGMT. OFFICER-USFS
3833 HIGHWAY 21 PO BOX 129
IDAHO CITY, ID 83631
Phone: (208) 392-6681
BOISE FSS (BOI)
Toll Free: 1-800-WX-BRIEF
BOI
--
--
N/A
Yes
No
No
Tie-Down
No
None
None
None
None
None

Runway 18/36

2900 ft. x 50 ft.
TURF
Poor
NONE


--
--
--
--
  Runway 18 Runway 36
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1NO WINTER MAINTENANCE.
A110-2RECOMMEND LNDG RWY 36; TAKEOFF RWY 18 WHEN WIND CONDITIONS ALLOW.
A110-3ARPT SURROUNDED BY HIGH MOUNTAINOUS TERRAIN.
A110-5BIG GAME ANIMALS ON & INVOF ARPT.
A110-6NO TELEPHONE AVBL AT ARPT.
A110-7RWY 18/36 FIRST 1000 FT OF RWY 36 IS WET/SOFT AND UNUSBL DRG EARLY SPRING.
A110-8FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
A110-9NO LN OF SIGHT BTN RWY ENDS.
A33-18/36_CONDRWY SFC IS ROUGH DUE TO UNEVEN SFC/UNDULATIONS & CLUMP GRASS.
A42-18_MARK18/36 THRS MKD WITH WHITE PAINTED ROCKS.
A52-18RWY 18 35 FT TREES AT 0 FT 75 FT R; 30 FT TREES AT 60 FT ON CNTRLN; 100 FT TREES & TRRN AT 300 FT ON CNTRLN.
A52-36RWY 36 ADDNL OBSTNS 12 FT ROAD 25 FT FM THLD ON CNTRLN; 135 FT RIDGE 1500 FT FM THLD, 300 FT L; 900-1500 FT RIDGE ON EXT CNTRLN 1 MILE FM THLD.
A57-18NMRS TREES AND TRRN OBSTNS IN VCNTY OF RWY 36.
E111EXISTED PRIOR TO 31 DEC 1958.
GRAHAM USFS (IATA: U45) is a public airport located in ATLANTA, ID, US.
