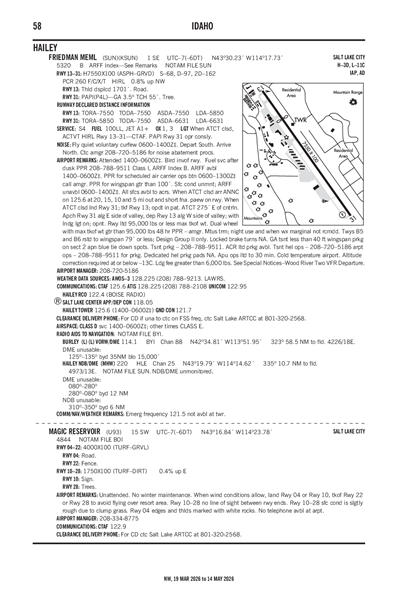

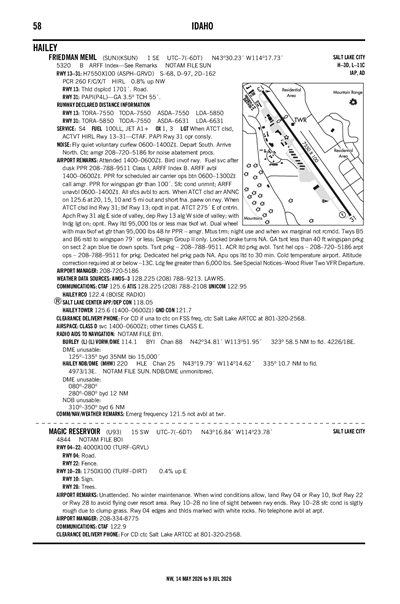

MAGIC RESERVOIR - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

U93
Local U93
MAGIC RESERVOIR
PublicPUB

15 miles SW of HAILEY, ID, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 16' 50"N 114° 23' 47"W
Elevation
4844' MSL
Pattern Alt
5844' MSL
Mag Variation
12°E
Declination
16°E
Fuel
None Listed
FSS
BOISE (BOI)
Sectional
SALT LAKE CITY
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
5/14/26-6/11/26
KSUN (14nm) VFR
12:15 AM MDT
Broken 12,000'
10sm
32°F
32°F
30.03"Hg
320° 5kts
AO2
METAR KSUN 040615Z AUTO 32005KT 10SM BKN120 A3003 RMK AO2
+ Add Your Business

U93 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KSUN (14nm)
Wed, 6/3 11:20 PM MDT
Thu, 6/4 12:00 AM MDT - Fri, 6/5 6:00 AM MDT
VFR
12:00 AM MDT - 9:00 AM MDT
Scattered 11,000'
6sm
320° 6kts
VFR
9:00 AM MDT - 1:00 PM MDT
Few 6,000'
6sm
310° 10kts
VFR
1:00 PM MDT - 7:00 PM MDT
Few 6,000'
6sm
240° 15kts
VFR
7:00 PM MDT - 9:00 PM MDT
Sky Clear
6sm
310° 15kts
VFR
9:00 PM MDT - 6:00 AM MDT
Sky Clear
6sm
320° 6kts
TAF KSUN 040520Z 0406/0512 32006KT P6SM SCT110
   FM041500 31010KT P6SM FEW060
   FM041900 24015KT P6SM FEW060
   FM050100 31015KT P6SM SKC
   FM050300 32006KT P6SM SKC AMD LTD TO CLD VIS AND WIND TIL 041300
U93
No NOTAM Available
No
UNATNDD
STATE OF IDAHO/ITD - DIV AERO
P O BOX 7129
BOISE, ID 83707
Phone: 208-334-8775
IDAHO DIV OF AERONAUTICS
P O BOX 7129
BOISE, ID 83707
Phone: 208-334-8775
BOISE FSS (BOI)
Toll Free: 1-800-WX-BRIEF
BOI
--
--
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 04/22

4000 ft. x 100 ft.
TURF GRVL
Fair
NONE


--
--
--
--
  Runway 04 Runway 22
True Heading 53°233°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 43° 16' 34"N 43° 16' 57"N
Longitude 114° 24' 11"W 114° 23' 28"W
Elevation 4,844' 4,842'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 10/28

1750 ft. x 100 ft.
TURF DIRT
Fair
NONE


--
--
--
--
  Runway 10 Runway 28
True Heading 115°295°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 43° 17' 05"N 43° 16' 57"N
Longitude 114° 23' 52"W 114° 23' 30"W
Elevation 4,837' 4,844'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1NO WINTER MAINTENANCE.
A110-2WHEN WIND CONDS ALLOW; LAND RWY 04 OR RWY 10; TKOF RWY 22 OR RWY 28 TO AVOID FLYING OVER RESORT AREA.
A110-3RWY 10/28 NO LINE OF SIGHT BTN RWY ENDS.
A110-4NO TELEPHONE AVBL AT ARPT.
A110-5FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
A33-10/28_SURFSFC COND IS SLGTLY ROUGH DUE TO CLUMP GRASS.
A42-04_MARKEDGES & THLDS MARKED WITH WHITE ROCKS.
A52-04ADDNL OBST; +10 FT RD AT 175 FT ON CNTRLN; +4 FT FENCE AT 160 FT ON CNTRLN.
A52-22ADDNL OBST: NUMEROUS 30-50 FT TREES & BLDGS TO 30 FT ON APCH.
A52-28ADDNL OBST NMRS 30-50 FT TREES & 15 FT BLDG ON APCH.
A57-044 FT BARB WIRE FENCE AT 160 FT ON CNTRLN, 15 FT RD AT 175 FT ON CNTRLN.
A57-104 FT BARB WIRE FENCE AT 50 FT ON CNTRLN. 18 FT TALL HOUSE BLW RWY GRADE AT 150 FT ON CNTRLN.
E111ESTABD PRIOR TO 1959.
MAGIC RESERVOIR (IATA: U93) is a public airport located in HAILEY, ID, US.
