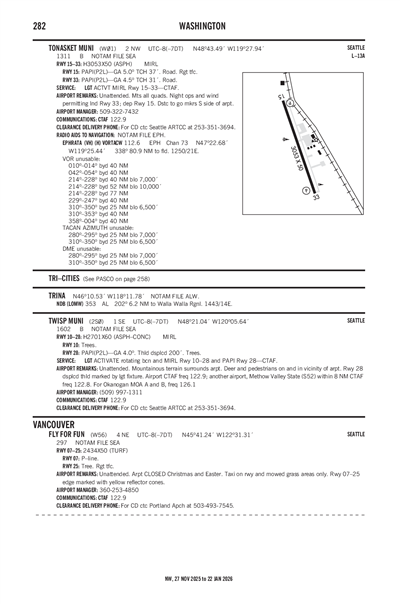

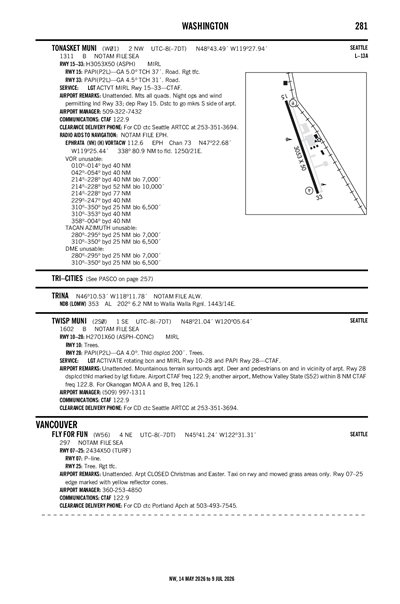

TONASKET MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

W01
Local W01
TONASKET MUNI
PublicPUB

2 miles NW of TONASKET, WA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
48° 43' 30"N 119° 27' 56"W
Elevation
1311' MSL
Pattern Alt
2311' MSL
Mag Variation
15°E
Declination
20°E
Fuel
None Listed
FSS
SEATTLE (SEA)
Sectional
SEATTLE
ARTCC
SEATTLE (ZSE)
Data Effective
5/14/26-6/11/26
KOMK (16nm) VFR
8:53 PM PDT
Overcast 8,500'
10sm
64°F
50°F
29.94"Hg
330° 10kts
AO2 SLP136 T01780100
METAR KOMK 040353Z AUTO 33010KT 10SM OVC085 18/10 A2994 RMK AO2 SLP136 T01780100
+ Add Your Business

W01 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT MIRL RWY 15/33 - CTAF.

FAA A/FD Pages

Terminal Area Forecast

CYYF (45nm)
Wed, 6/3 5:40 PM PDT
Wed, 6/3 6:00 PM PDT - Thu, 6/4 6:00 AM PDT
VFR
Temporary 6:00 PM PDT - 8:00 PM PDT
Light Showers and Rain and Thunderstorm in vicinity
Overcast 10,000'
Broken 6,000'
6sm
Calm
VFR
6:00 PM PDT - 8:00 PM PDT
Overcast 10,000'
Broken 7,000'
6sm
360° 8kts
VFR
Temporary 8:00 PM PDT - 11:00 PM PDT
Light Showers and Rain
No Clouds
6sm
Calm
VFR
8:00 PM PDT - 3:00 AM PDT
Broken 7,000'
6sm
VRB° 3kts
VFR
3:00 AM PDT - 6:00 AM PDT
Few 7,000'
6sm
VRB° 3kts
TAF CYYF 040040Z 0401/0413 36008KT P6SM BKN070 OVC100
   TEMPO 0401/0403 P6SM -SHRA VCTS BKN060CB OVC100
   FM040300 VRB03KT P6SM BKN070
   TEMPO 0403/0406 P6SM -SHRA
   FM041000 VRB03KT P6SM FEW070 RMK NXT FCST BY 040700Z
W01
EffectiveExpiresCategoryNOTAM
Domestic
6/6/26
1730Z
6/14/26
0230Z
!SEA 05/510 W01 AIRSPACE NUMEROUS GLD WI AN AREA DEFINED AS 490000N1212000W (32.8NM NE 3W5) TO 490000N1190000W (16.5NM E 0S7) TO 470000N1190000W (2.7NM NE 2S4) TO 470000N1212000W (8.2NM E 21W) TO POINT OF ORIGIN SFC-17999FT FREQ 123.3 DLY 1730-0230 2606061730-2606140230
6/6/26
1730Z
6/14/26
0230Z
!SEA 05/510 W01 AIRSPACE NUMEROUS GLD WI AN AREA DEFINED AS 490000N1212000W (32.8NM NE 3W5) TO 490000N1190000W (16.5NM E 0S7) TO 470000N1190000W (2.7NM NE 2S4) TO 470000N1212000W (8.2NM E 21W) TO POINT OF ORIGIN SFC-17999FT FREQ 123.3 DLY 1730-0230 2606061730-2606140230
No
UNATNDD
CITY OF TONASKET
PO BOX 487
TONASKET, WA 98855
Phone: 509-486-2132
DARREN JOHNSON
PO BOX 487
TONASKET, WA 98855
Phone: 509-322-7432
SEATTLE FSS (SEA)
Toll Free: 1-800-WX-BRIEF
SEA
--
ACTVT MIRL RWY 15/33 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
No
None
None
None
None
None

Runway 15/33

3053 ft. x 50 ft.
ASPH
Fair
NONE
MED

--
--
--
--
  Runway 15 Runway 33
True Heading 162°342°
Traffic Pattern Right
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 48° 43' 44"N 48° 43' 15"N
Longitude 119° 28' 03"W 119° 27' 49"W
Elevation -- --
Threshold Crossing Height 37 ft. AGL 31 ft. AGL
Visual Glide Path Angle 5° 4.5°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1MTS ALL QUADS.
A110-2DSTC TO GO MKRS S SIDE OF ARPT.
A110-4FOR CD CTC SEATTLE ARTCC AT 253-351-3694.
A30-15/33NIGHT OPS WIND PMTG LND RWY 33; DEP RWY 15.
A75-TTIEDOWNS NA.
A81-APTACTVT MIRL RWY 15/33 - CTAF.
TONASKET MUNI (IATA: W01) is a public airport located in TONASKET, WA, US.
