LAKE COUNTRY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

W11
Local W11
LAKE COUNTRY
PublicPUB

1 miles SW of SULLIVAN, WI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 00' 26"N 88° 36' 19"W
Elevation
843' MSL
Pattern Alt
1843' MSL
Mag Variation
3°W
Declination
0°
Fuel
100LL
FSS
GREEN BAY (GRB)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
2/19/26-3/19/26
KRYV (11nm) VFR
8:55 AM CDT
Thunderstorm in vicinity
Overcast 7,000'
Broken 3,900'
10sm
33°F
29°F
29.47"Hg
090° 16kts
Gusts 23kts
AO2 LTG DSNT W AND NW T00071018
METAR KRYV 151355Z AUTO 09016G23KT 10SM VCTS BKN039 OVC070 01/M02 A2947 RMK AO2 LTG DSNT W AND NW T00071018
+ Add Your Business

W11 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

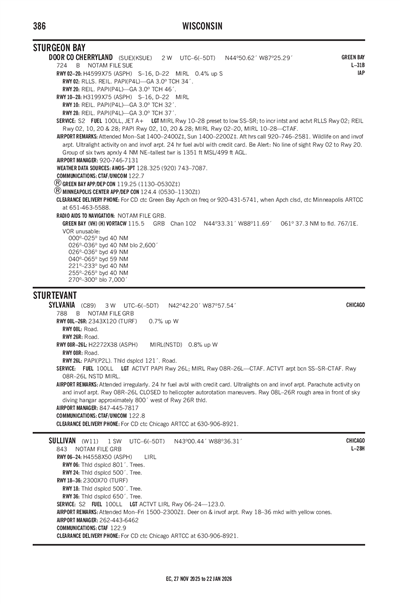

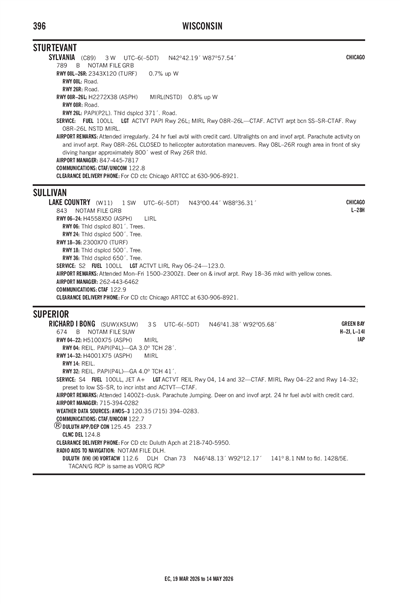

FAA A/FD Pages

Terminal Area Forecast

KUES (16nm)
Sun, 3/15 6:23 AM CDT
Sun, 3/15 7:00 AM CDT - Mon, 3/16 7:00 AM CDT
VFR
7:00 AM CDT - 10:00 AM CDT
Overcast 5,000'
Scattered 1,400'
6sm
100° 15kts
Gusts 28kts
MVFR
8:00 AM CDT - 10:00 AM CDT
Light Rain
Overcast 2,500'
4sm
Calm
MVFR
10:00 AM CDT - 3:00 PM CDT
Light Rain
Overcast 1,100'
3sm
140° 12kts
Gusts 20kts
IFR
Temporary 12:00 PM CDT - 3:00 PM CDT
Light Thunderstorm and Rain
Overcast 1,000'
Broken 600'
1sm
Calm
IFR
3:00 PM CDT - 5:00 PM CDT
Light Rain
Overcast 1,100'
Broken 500'
2sm
250° 13kts
Gusts 21kts
LIFR
5:00 PM CDT - 10:00 PM CDT
Light Freezing Rain and Snow
Overcast 400'
3sm
Calm
IFR
5:00 PM CDT - 10:00 PM CDT
Overcast 1,000'
Broken 500'
6sm
340° 15kts
Gusts 25kts
IFR
10:00 PM CDT - 2:00 AM CDT
Light Freezing Rain
Overcast 600'
4sm
360° 18kts
Gusts 32kts
IFR
2:00 AM CDT - 7:00 AM CDT
Light Snow and Blowing Snow
Overcast 1,100'
Scattered 600'
2sm
340° 20kts
Gusts 33kts
TAF KUES 151123Z 1512/1612 10015G28KT P6SM SCT014 OVC050
   PROB30 1513/1515 4SM -RA OVC025
   FM151500 14012G20KT 3SM -RA OVC011
   TEMPO 1517/1520 1SM -TSRA BKN006CB OVC010
   FM152000 25013G21KT 2SM -RA BKN005 OVC011
   FM152200 34015G25KT P6SM BKN005 OVC010
   PROB30 1522/1603 3SM -FZRASN OVC004
   FM160300 36018G32KT 4SM -FZRA OVC006
   FM160700 34020G33KT 2SM -SN BLSN SCT006 OVC011
W11
No NOTAM Available
No
MON-FRI 0900-1700
MAVERICK HOLDINGS LLC
198 MAIN STREET
SULLIVAN, WI 53178
Phone: 262-443-6462
NICK BETTENDORF
200 MAIN ST.
SULLIVAN, WI 53178
Phone: 262-443-6462
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
GRB
--
ACTVT LIRL RWY 06/24 - 123.0.
N/A
Yes
No
No
Hanger, Tie-Down
No
Minor
Minor
None
None
Pilot Instruction
Aircraft Rental

Runway 06/24

4558 ft. x 50 ft.
ASPH
Good
NONE
LOW

--
--
--
--
  Runway 06 Runway 24
True Heading 58°238°
Traffic Pattern Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 43° 00' 14"N 43° 00' 38"N
Longitude 88° 36' 36"W 88° 35' 44"W
Elevation 837' 843'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18/36

2300 ft. x 70 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 18 Runway 36
True Heading 180°0°
Traffic Pattern
Markings NONE NONE
Markings Condition
Latitude 43° 00' 38"N 43° 00' 15"N
Longitude 88° 36' 36"W 88° 36' 36"W
Elevation 839' 842'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
A110-2DEER ON & INVOF ARPT.
A42-18_MARKMKD WITH YELLOW CONES.
A42-36_MARKMKD WITH YELLOW CONES.
A57-06APCH RATIO 20:1 TO DTHR.
A57-18APCH RATIO 20:1 TO DTHR.
A57-24APCH RATIO 20:1 TO DTHR.
A58-0620 FT TREES 85 FT FM RWY END ON CNTRLN.
A58-2430 FT TREES 170 FT FM RWY END 30 FT R; 15 FT BRUSH 30 FT FM RWY END 60 FT L.
A81-APTACTVT LIRL RWY 06/24 - 123.0.
E111PRVD A 20:1 APCH CLNC OVER OBSTNS; REF BE MADE TO FAA ADVISORY CIRCULAR DURING CONSTRUCTION; AREA 125 FT EITHER SIDE FM CTR & AREA 300 FT OFF EITHER RY BE FREE OF OBSTNS.
LAKE COUNTRY (IATA: W11) is a public airport located in SULLIVAN, WI, US.
