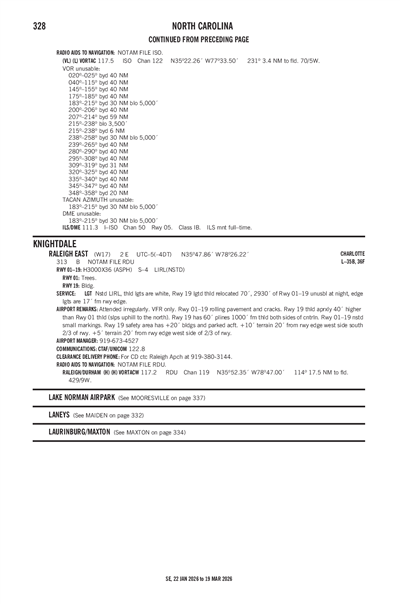

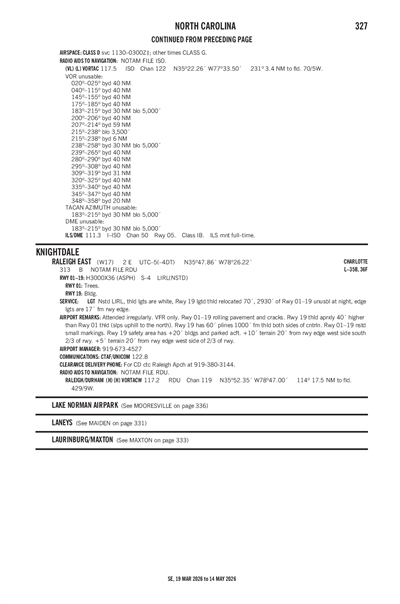

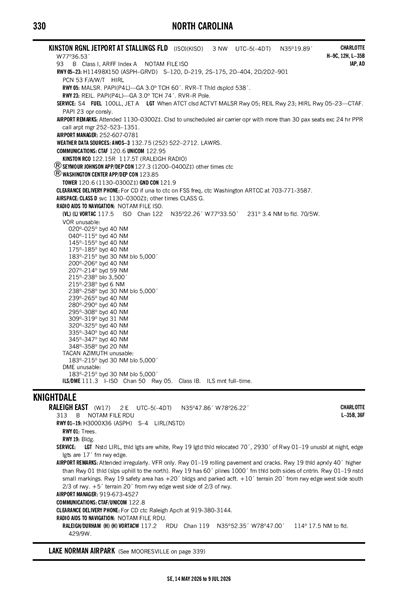

RALEIGH EAST - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

W17
Local W17
RALEIGH EAST
PublicPUB

2 miles E of KNIGHTDALE, NC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 47' 52"N 78° 26' 13"W
Elevation
313' MSL
Pattern Alt
1313' MSL
Mag Variation
9°W
Declination
7°W
Fuel
None Listed
FSS
RALEIGH (RDU)
Sectional
CHARLOTTE
ARTCC
WASHINGTON (ZDC)
Data Effective
4/16/26-5/14/26
KLHZ (14nm) VFR
5:35 PM EDT
Scattered 10,000'
10sm
86°F
43°F
29.78"Hg
280° 5kts
AO2
METAR KLHZ 242135Z AUTO 28005KT 10SM SCT100 30/06 A2978 RMK AO2
+ Add Your Business

W17 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
UNICOM 122.8

FAA A/FD Pages

Terminal Area Forecast

KRDU (18nm)
Fri, 4/24 1:20 PM EDT
Fri, 4/24 2:00 PM EDT - Sat, 4/25 2:00 PM EDT
VFR
2:00 PM EDT - 2:00 PM EDT
Scattered 25,000'
Few 8,000'
6sm
250° 8kts
TAF KRDU 241720Z 2418/2518 25008KT P6SM FEW080 SCT250
W17
EffectiveExpiresCategoryNOTAM
Domestic
4/6/26
2148Z
5/6/26
2359Z
!RDU 04/077 W17 OBST TOWER LGT (ASR 1234309) 355038.50N0782113.90W (5.0NM NE W17) 794.9FT (500.0FT AGL) U/S 2604062148-2605062359
4/1/26
0853Z
4/30/26
2359Z
!RDU 04/005 W17 OBST TOWER LGT (ASR 1320677) 354310.40N0783408.10W
(7.95NM WSW W17) 578FT (315FT AGL) U/S 2604010853-2604302359
3/26/26
1513Z
9/4/26
2359Z
!RDU 03/350 W17 OBST TOWER LGT (ASR 1002377) 355418.00N0783458.00W (9.5NM NW W17) 848.8FT (498.7FT AGL) U/S 2603261513-2609042359
12/29/25
1933Z
6/30/26
2359Z
!RDU 12/403 W17 OBST TOWER LGT (ASR 1002383) 354625.00N0783709.00W (9.0NM W W17) 649.9FT (358.9FT AGL) U/S 2512291933-2606302359
No
IREG
CAROLYNN KNOTT
933 THREE SISTERS ROAD
KNIGHTDALE, NC 27545
Phone: 919-749-8850
CURT TILLY
4120 IVERSON ST.
RALEIGH, NC 27604
Phone: 919-673-4527
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
RDU
Sunset to Sunrise
--
N/A
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 01/19

3000 ft. x 36 ft.
ASPH
Good
NONE
NSTD

4,000lbs
--
--
--
  Runway 01 Runway 19
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1+5 FT TRRN 20 FT FROM RWY EDGE WEST SIDE SOUTH 2/3 OF RWY.
A110-4RWY 19 THLD APRXLY 40 FT HIGHER THAN RWY 01 THLD (SLPS UPHILL TO THE NORTH).
A110-5RWY 19 SAFETY AREA HAS +20 FT BLDGS & PARKED ACFT.
A110-6RWY 19 HAS 60 FT PLINES 1000 FT FM THLD BOTH SIDES OF CNTRLN.
A110-7FOR CD CTC RALEIGH APCH AT 919-380-3144.
A33-01/19_CONDROLLING PAVEMENT AND RWY CRACKS.
A40-01/19NSTD LIRL; THLD LGTS ARE WHITE; RWY 19 LGTD THLD RELOCATED 70 FT; 2930 FT OF RWY 01/19 USBL AT NIGHT; EDGE LGTS ARE 17 FT FM RWY EDGE.
A42-01_MARKRWY 01/19 NSTD SMALL MARKINGS.
A58-0120 FT TREES 0-200 FT FM THR OFFSET 117 FT RIGHT OF CNTRLN. AND 10 FT BRUSH-JUNK CARS 0-200 FT FM THR OFFSET 84 FT LEFT OF CNTRLN.
A58-1914 FT BLDG 100-200 FT FM THR OFFSET 54 FT LEFT OF CNTRLN.
E111VFR ONLY.
RALEIGH EAST (IATA: W17) is a public airport located in KNIGHTDALE, NC, US.
