W48
ESSEX SKYPARK
PublicPUB

3 miles SE of BALTIMORE, MD
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 15' 45"N 76° 25' 56"W
14' MSL
1014' MSL
10W
None Listed
LEESBURG (DCA)
WASHINGTON
WASHINGTON (ZDC)
11/27/25-12/25/25
KMTN (4nm) VFR
9:45 AM EST
Light Rain
Overcast 10,000'
Scattered 7,000'
10sm
54°F
50°F
29.94"Hg
Calm
METAR KMTN 191445Z 00000KT 10SM -RA SCT070 OVC100 12/10 A2994
+ Add Your Business

W48 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

No communication frequencies available for this airport.

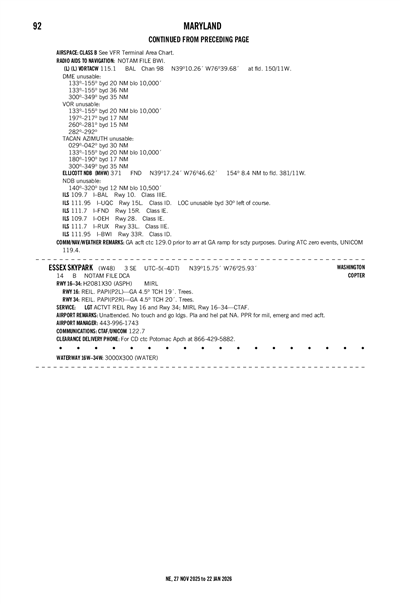

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KMTN (4nm)
Fri, 12/19 6:40 AM EST
Fri, 12/19 7:00 AM EST - Sat, 12/20 7:00 AM EST
LIFR
7:00 AM EST - 8:00 AM EST
Light Showers and Rain
Overcast 1,000'
Broken 300'
6sm
180° 14kts
Gusts 21kts
IFR
8:00 AM EST - 8:30 AM EST
Showers and Rain
Overcast 1,000'
2sm
240° 20kts
Gusts 35kts
VFR
8:30 AM EST - 2:00 PM EST
Light Showers and Rain
Overcast 8,000'
Broken 3,500'
6sm
250° 13kts
Gusts 25kts
VFR
2:00 PM EST - 8:00 PM EST
Scattered 5,000'
6sm
280° 23kts
Gusts 41kts
VFR
8:00 PM EST - 1:00 AM EST
Few 5,000'
6sm
270° 18kts
Gusts 27kts
VFR
1:00 AM EST - 7:00 AM EST
Few 24,000'
6sm
280° 9kts
TAF KMTN 191140Z 1912/2012 18014G21KT 6SM -SHRA BKN003 OVC010
   FM191300 24020G35KT 2SM SHRA OVC010
   FM191330 25013G25KT P6SM -SHRA BKN035 OVC080
   FM191900 28023G41KT P6SM SCT050
   FM200100 27018G27KT P6SM FEW050
   FM200600 28009KT P6SM FEW240
W48
EffectiveExpiresCategoryNOTAM
Domestic
9/4/25
1628Z
!DCA 09/134 W48 AIRSPACE SEE FDC 5/7224 ZDC SECURITY INSTRUCTIONS 2509041628-PERM
9/30/24
1313Z
Runway!DCA 09/970 W48 RWY 16/34 COMMISSIONED 2081FT X 30FT ASP LGTD. DECLARED DIST: RWY 16 TORA 2081FT TODA 2081FT LDA 2081FT. RWY 34 TORA 2081FT TODA 2081FT LDA 2081FT. 2409301313-PERM
No
UNATNDD
ESSEX SKYPARK ASSOCIATION, INC.
1401 DIFFENDALL ROAD
ESSEX, MD 21221
Phone: (443) 996-1743
JEFF AUEN
1401 DIFFENDALL ROAD
ESSEX, MD 21221
Phone: 443-996-1743
LEESBURG FSS (DCA)
Toll Free: 1-800-WX-BRIEF
DCA
--
ACTVT REIL RWY 16 & 34; MIRL RWY 16/34 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Pilot Instruction

Runway 16/34

2081 ft. x 30 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 16 Runway 34
True Heading 147°327°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 39° 15' 53"N 39° 15' 36"N
Longitude 76° 26' 03"W 76° 25' 48"W
Elevation 9' 14'
Threshold Crossing Height 19 ft. AGL 20 ft. AGL
Visual Glide Path Angle 4.5° 4.5°
Visual Slope Indicator P2L P2R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 16W/34W

3000 ft. x 300 ft.

WATER
NONE


--
--
--
--
  Runway 16W Runway 34W
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1TGL NA.
A110-3FOR CD CTC POTOMAC APCH AT 866-429-5882.
ESSEX SKYPARK (IATA: W48) is a public airport located in BALTIMORE, MD.
