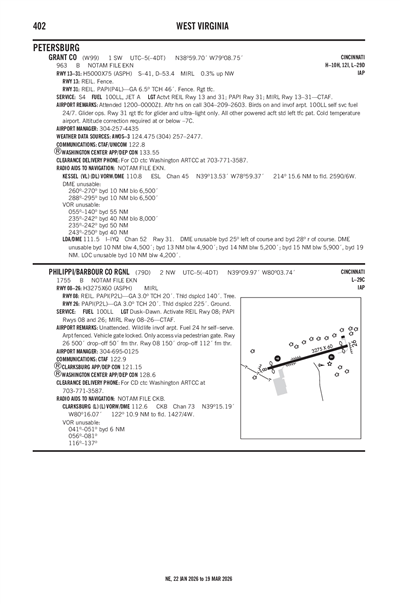

GRANT COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

W99
GRANT COUNTY
PublicPUB

1 miles SW of PETERSBURG, WV
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 59' 42"N 79° 08' 45"W
963' MSL
1963' MSL
08W
JET A, 100LL
ELKINS (EKN)
CINCINNATI
WASHINGTON (ZDC)
11/27/25-12/25/25
KEKN (34nm) MVFR
5:51 PM EST
Broken 2,100'
9sm
7°F
0°F
30.34"Hg
290° 9kts
Gusts 20kts
AO2 SNE20 SLP319 P0000 T11391178 $
METAR KEKN 142251Z AUTO 29009G20KT 9SM BKN021 M14/M18 A3034 RMK AO2 SNE20 SLP319 P0000 T11391178 $
+ Add Your Business

W99 FBOs

Promote Listing
Touch & Go Aviation
UNICOM: 122.8
Phone: (304) 257-4435
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 11/27
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.24 4.66
Full Serve 4.66
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
304-257-2477
 124.475

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KEKN (34nm)
Sun, 12/14 12:30 PM EST
Sun, 12/14 1:00 PM EST - Mon, 12/15 1:00 PM EST
IFR
Temporary 1:00 PM EST - 4:00 PM EST
Light Showers and Snow and Mist
Broken 2,800'
1sm
Calm
VFR
1:00 PM EST - 5:00 PM EST
Light Showers and Snow and Mist
Broken 3,500'
6sm
300° 13kts
Gusts 24kts
MVFR
5:00 PM EST - 6:00 PM EST
Mist
Scattered 2,200'
5sm
300° 11kts
Gusts 21kts
MVFR
6:00 PM EST - 11:00 PM EST
Broken 2,300'
6sm
300° 11kts
Gusts 22kts
MVFR
11:00 PM EST - 3:00 AM EST
Broken 1,800'
6sm
280° 6kts
MVFR
3:00 AM EST - 12:00 PM EST
Broken 2,200'
6sm
Calm
VFR
12:00 PM EST - 1:00 PM EST
Broken 15,000'
6sm
230° 4kts
TAF KEKN 141730Z 1418/1518 30013G24KT 6SM -SHSN BR BKN035
   TEMPO 1418/1421 1SM -SHSN BR BKN028
   FM142200 30011G21KT 5SM BR SCT022
   FM142300 30011G22KT P6SM BKN023
   FM150400 28006KT P6SM BKN018
   FM150800 00000KT P6SM BKN022
   FM151700 23004KT P6SM BKN150
W99
EffectiveExpiresCategoryNOTAM
Domestic
11/26/25
2145Z
!EKN 11/176 W99 SVC AUTOMATED WX BCST SYSTEM NOT AVBL 2511262145-2601152300EST
9/15/25
1849Z
12/31/25
2359Z
!EKN 09/077 W99 OBST TOWER LGT (ASR 1282648) 384240.10N0792407.00W (21.0NM SW W99) 3850.7FT (259.8FT AGL) U/S 2509151849-2512312359
7/30/25
1734Z
Runway!EKN 07/275 W99 RWY 31 PAPI U/S 2507301734-2601302111EST
FDC
12/12/25
2204Z
1/12/26
2204Z
!FDC 5/8708 W99 IAP GRANT COUNTY, PETERSBURG, WV.
VOR/DME -A, AMDT 2D...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
ESL VOR/DME OUT OF SERVICE. 2512122204-2601122204EST
12/12/25
2204Z
1/12/26
2204Z
!FDC 5/8707 W99 IAP GRANT COUNTY, PETERSBURG, WV.
LDA/DME-B, AMDT 3C...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
ESL VOR/DME OUT OF SERVICE. 2512122204-2601122204EST
12/12/25
2204Z
1/12/26
2204Z
!FDC 5/8706 W99 ODP GRANT COUNTY, PETERSBURG, WV.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
ESL VOR/DME OUT OF SERVICE. 2512122204-2601122204EST
11/13/25
2207Z
!FDC 5/6082 W99 IAP GRANT COUNTY, PETERSBURG, WV.
LDA/DME-B, AMDT 3C...
CIRCLING CAT A/B MDA 2820/HAA 1857.
CIRCLING CAT C N/A.
WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, PROCEDURE NA. MSA FROM ESL VOR/DME 25 NM 320 CW 140 MINIMUM ALTITUDE 4900, 140 CW 320 MINIMUMS ALTITUDE 6100. ALTERNATE MINIMUMS: CAT A, B 1700-2.
2511132207-2711132207EST
8/4/25
1624Z
!FDC 5/0475 W99 ODP GRANT COUNTY, PETERSBURG, WV.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
TAKE-OFF MINIMUMS: RWY 13, 3000-3 FOR CLIMB IN VISUAL CONDITIONS. DEPARTURE PROCEDURE: FOR CLIMB IN VISUAL CONDITIONS, CROSS GRANT COUNTY AIRPORT NORTHEAST BOUND AT OR ABOVE 3800. THEN CLIMB TO 5000 ON ESL R-214 DIRECT ESL VOR/DME. WHEN EXECUTING VCOA, NOTIFY ATC PRIOR TO DEPARTURE.
ALL OTHER DATA REMAINS AS PUBLISHED. 2508041624-2708041622EST
6/12/25
1801Z
!FDC 5/3507 W99 IAP GRANT COUNTY, PETERSBURG, WV.
VOR/DME -A, AMDT 2D...
WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, PROCEDURE NA.
MSA FROM ESL VOR/DME 25 NM 320 CW 140 MINIMUM ALTITUDE 4900.
2506121801-2706151800EST
3/27/25
1645Z
!FDC 5/8840 W99 IAP GRANT COUNTY, PETERSBURG, WV.
COPTER RNAV (GPS) X RWY 31, ORIG-A...
DISREGARD NOTE: ALTERNATE MINIMUMS NA.
ALTERNATE MINIMUMS CATEGORY COPTER 1200-1.
2503271645-2703271645EST
No
0700-1900
AFTR HRS ON CALL 304-209-2603.
GRANT COUNTY AIRPORT AUTH
5 HIGHLAND AVE
PETERSBURG, WV 26847
Phone: 304-257-4435
TOM FEASTER
440 AIRPORT RD
PETERSBURG, WV 26802
Phone: 304-257-4435
ELKINS FSS (EKN)
Toll Free: 1-800-WX-BRIEF
EKN
--
ACTVT REIL RWY 13 & 31; PAPI RWY 31; MIRL RWY 13/31 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
None

Runway 13/31

5000 ft. x 75 ft.
ASPH
Good
NONE
MED

41,000lbs
53,000lbs
--
--
  Runway 13 Runway 31
True Heading 122°302°
Traffic Pattern Left Right
Markings BSC NPI
Markings Condition FAIR FAIR
Latitude 38° 59' 55"N 38° 59' 29"N
Longitude 79° 09' 12"W 79° 08' 18"W
Elevation 963' 948'
Threshold Crossing Height -- 46 ft. AGL
Visual Glide Path Angle -- 6.5°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1BIRDS ON & INVOF ARPT.
A110-2FLY-IN CAMPGROUND ON ARPT.
A110-3COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -7C.
A110-4FOR CD CTC WASHINGTON ARTCC AT 703-771-3587.
GRANT COUNTY (IATA: W99) is a public airport located in PETERSBURG, WV.
