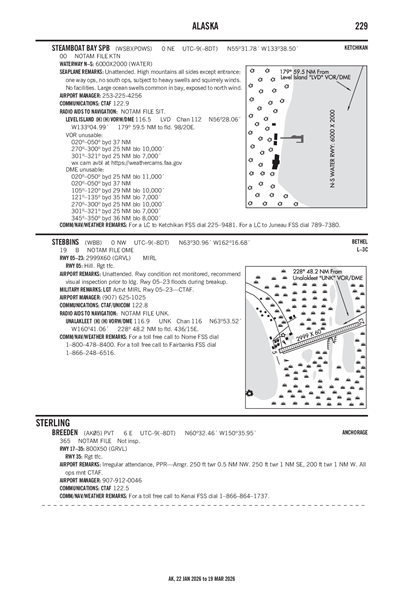

STEBBINS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

WBB
Local WBB
STEBBINS
PublicPUB

0 miles NW of STEBBINS, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
63° 30' 57"N 162° 16' 41"W
Elevation
19' MSL
Pattern Alt
1019' MSL
Mag Variation
10°E
Declination
19°E
Fuel
None Listed
FSS
NOME (OME)
Sectional
BETHEL
ARTCC
ANCHORAGE (ZAN)
Data Effective
3/19/26-4/16/26
PAMK (5nm) VFR
1:27 PM AKDT
Clear
9sm
23°F
12°F
30.29"Hg
010° 3kts
AO2 SNE25 P0000 FZRANO
SPECI PAMK 042127Z AUTO 01003KT 9SM CLR M05/M11 A3029 RMK AO2 SNE25 P0000 FZRANO
+ Add Your Business

WBB FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT MIRL RWY 05/23 - CTAF.
UNICOM 122.8

FAA A/FD Pages

Terminal Area Forecast

PAUN (46nm)
Sat, 4/4 12:59 PM AKDT
Sat, 4/4 1:00 PM AKDT - Sun, 4/5 10:00 AM AKDT
VFR
1:00 PM AKDT - 4:00 PM AKDT
Mist
Sky Clear
6sm
VRB° 3kts
VFR
4:00 PM AKDT - 10:00 PM AKDT
Broken 10,000'
6sm
VRB° 5kts
VFR
10:00 PM AKDT - 10:00 AM AKDT
Broken 10,000'
6sm
090° 7kts
TAF PAUN 042059Z 0421/0518 VRB03KT 6SM BR SKC
   FM050000 VRB05KT P6SM BKN100
   FM050600 09007KT P6SM BKN100
WBB
EffectiveExpiresCategoryNOTAM
Domestic
4/3/26
1630Z
4/4/26
1630Z
Runway!OME 04/018 WBB RWY 05 FICON 100 PCT 1/2IN DRY SN OBS AT 2604031630. 2604031630-2604041630
1/19/26
2132Z
4/19/26
2359Z
!OME 01/220 WBB OBST WIND TURBINE (ASR UNKNOWN) 633203N1621647W (1SM
NW WBB) 249FT (230FT AGL) LGT U/S 2601192132-2604192359
No
UNATNDD
ALASKA DOT&PF NORTHERN REGION
2301 PEGER RD
FAIRBANKS, AK 99709
Phone: 907-451-2200
JOHN WILSON
PO BOX 192
UNALAKLEET, AK 99684
Phone: 907-625-1025
NOME FSS (OME)
Toll Free: 1-800-478-8400
OME
--
ACTVT MIRL RWY 05/23 - CTAF.
N/A
Yes
Yes
No
None
No
None
None
None
None
Cargo Handling

Runway 05/23

3000 ft. x 60 ft.
GRAVEL
Good
NONE
MED

--
--
--
--
  Runway 05 Runway 23
True Heading 64°244°
Traffic Pattern Right Left
Markings NSTD NSTD
Markings Condition POOR POOR
Latitude 63° 30' 51"N 63° 31' 04"N
Longitude 162° 17' 11"W 162° 16' 11"W
Elevation 17' 15'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RWY COND UNMNT; RCMD VISUAL INSP BFR USE.
A30-05/23FLOODS DURG BREAKUP.
A81-APTACTVT MIRL RWY 05/23 - CTAF.
E111ESTABD PRIOR TO 1959.
STEBBINS (IATA: WBB) is a public airport located in STEBBINS, AK, US.
