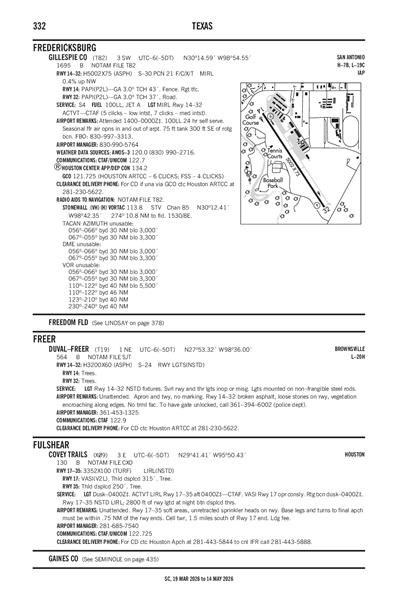

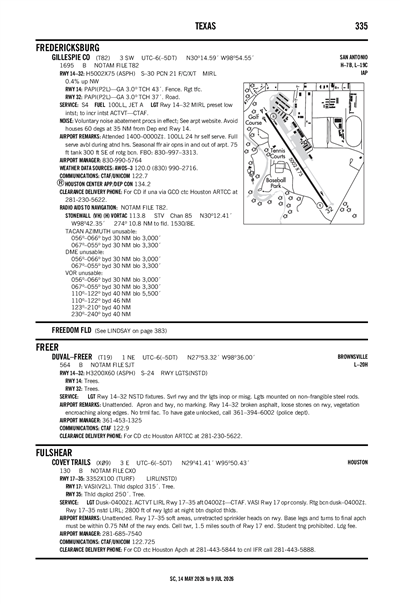

COVEY TRAILS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

X09
Local X09
COVEY TRAILS
PublicPUB

3 miles E of FULSHEAR, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
29° 41' 24"N 95° 50' 26"W
Elevation
130' MSL
Pattern Alt
1130' MSL
Mag Variation
2°E
Declination
6°E
Fuel
None Listed
FSS
MONTGOMERY COUNTY (CXO)
Sectional
HOUSTON
ARTCC
HOUSTON (ZHU)
Data Effective
2/19/26-3/19/26
KTME (8nm) VFR
1:15 PM CST
Clear
10sm
61°F
23°F
30.58"Hg
020° 10kts
Gusts 19kts
AO2
METAR KTME 221915Z AUTO 02010G19KT 10SM CLR 16/M05 A3058 RMK AO2
+ Add Your Business

X09 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.725
DUSK-2200. ACTVT LIRL RWY 17/35 AFT 2200 - CTAF. VASI RWY 17 OPR CONSLY.
UNICOM 122.725

FAA A/FD Pages

Terminal Area Forecast

KSGR (10nm)
Sun, 2/22 11:25 AM CST
Sun, 2/22 12:00 PM CST - Mon, 2/23 12:00 PM CST
VFR
12:00 PM CST - 6:00 PM CST
Sky Clear
6sm
010° 14kts
Gusts 24kts
VFR
6:00 PM CST - 3:00 AM CST
Sky Clear
6sm
360° 9kts
VFR
3:00 AM CST - 12:00 PM CST
Sky Clear
6sm
020° 7kts
TAF KSGR 221725Z 2218/2318 01014G24KT P6SM SKC
   FM230000 36009KT P6SM SKC
   FM230900 02007KT P6SM SKC
X09
EffectiveExpiresCategoryNOTAM
Domestic
2/21/26
1745Z
6/21/26
1745Z
!CXO 02/381 X09 OBST TOWER LGT (ASR 1064027) 294128.10N0955817.60W (6.9NM W X09) 525.9FT (416.0FT AGL) U/S 2602211745-2606211745
No
UNATNDD
COVEY TRAILS CIVIC CLUB INC
10CC KITTY HAWK WEST
RICHMOND, TX 77406
Phone: 832-202-4180
GRANVILLE LASSETER II
10 WEST KITTY HAWK
RICHMOND, TX 77406
Phone: 281-685-7540
MONTGOMERY COUNTY FSS (CXO)
Toll Free: 1-800-WX-BRIEF
CXO
--
DUSK-2200. ACTVT LIRL RWY 17/35 AFT 2200 - CTAF. VASI RWY 17 OPR CONSLY.
RTG BCN DUSK-2200.
N/A
Yes - Lighted
No
Yes
None
No
None
None
None
None
None

Runway 17/35

3352 ft. x 100 ft.
TURF
Good
NONE
NSTD

--
--
--
--
  Runway 17 Runway 35
True Heading 178°358°
Traffic Pattern Left
Markings NONE NONE
Markings Condition GOOD GOOD
Latitude 29° 41' 41"N 29° 41' 08"N
Longitude 95° 50' 26"W 95° 50' 25"W
Elevation 130' 130'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator V2L --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2BASE LEGS AND TURNS TO FINAL APCH MUST BE WITHIN .75 NM OF THE RWY ENDS.
A110-3FOR CD CTC HOUSTON APCH AT 281-443-5844 TO CNL IFR CALL 281-443-5888.
A110-4CELL TWR, 1.5 MILES SOUTH OF RWY 17 END.
A13PRESIDENT, COVEY TRAILS CIVIC CLUB.
A33-17/35_CONDSOFT AREAS, UNRETRACTED SPRINKLER HEADS ON RWY.
A40-17/35NSTD LIRL; 2800 FT OF RWY LGTD AT NIGHT BTN DSPLCD THRS.
A52-35ALSO 30 FT TREES 0 FT DSTC 100 FT L.
A57-17APCH SLOPE 7:1 TO DSPLCD THR OVR 33 FT TREE 115 FT FM DSPLCD THR 96 FT LEFT.
A57-35APCH SLOPE 7:1 TO DSPLCD THR OVR 33 FT TREE 241 FT FM DSPLCD THR 102 FT RIGHT.
A81-APTDUSK-2200. ACTVT LIRL RWY 17/35 AFT 2200 - CTAF. VASI RWY 17 OPR CONSLY.
A81-BCNRTG BCN DUSK-2200.
E111PRVDD ARPT TFC PAT MUST MAINTAIN BASE LEGS AND TURNS TO FINAL APCH WITHIN 0.75 NM OF THE RWY ENDS, AND THE SPECIAL SIAP WILL REMAIN UNTIL THE REIMBURSABLE AGREEMENT IS CANCELLED OR FTW FPO IS REQUESTED TO PUBLISH IT.
COVEY TRAILS (IATA: X09) is a public airport located in FULSHEAR, TX, US.
