BELLE GLADE STATE MUNI
Public
PUB
1 miles NE of BELLE GLADE, FL
View on
Map
Status
Operational
Coordinates
26° 41' 53"N
80° 39' 37"W
Elevation
14' MSL
Pattern Alt
1014' MSL
Mag Variation
03W
Fuel
None Listed
FSS
MIAMI (MIA)
Sectional
MIAMI
ARTCC
MIAMI (ZMA)
Data Effective
4/18/24-5/16/24
KF45 (25nm)
MVFR
12:55 AM EDT
RAW
Overcast 2,200'
Viz
9sm
Temp
66°F
Dew
66°F
Pres
29.98"Hg
Wind
Calm
RMK
AO2 TSNO
KF45 010455Z AUTO 00000KT 9SM OVC022 19/19 A2998 RMK AO2 TSNO
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
X10 FBOs, Flight Schools and Ground Support
No FBOs, flight schools or aircraft ground support businesses are listed for this airport.
X10 Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
X10 Hotels
No hotels are listed for this airport.
X10 Restaurants
No restaurants are listed for this airport.
X10 Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
No communication frequencies available for this airport.

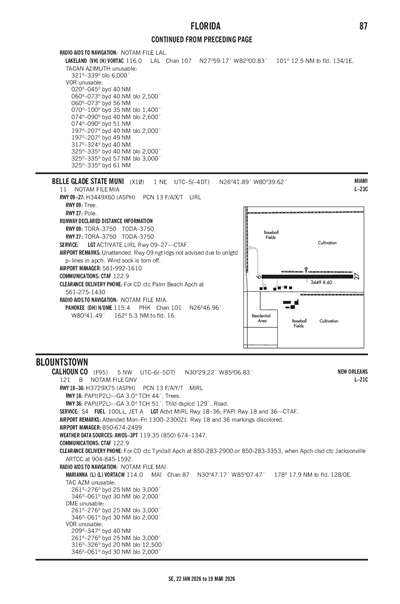

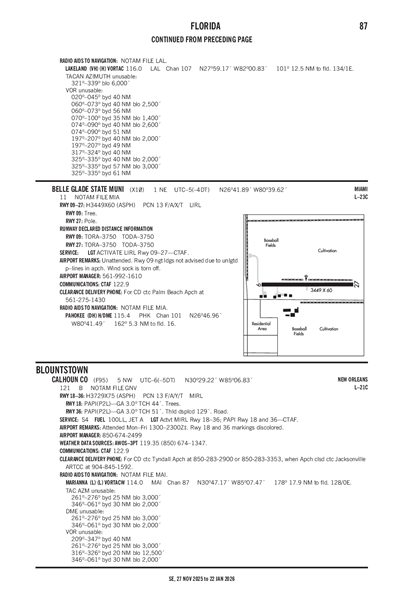

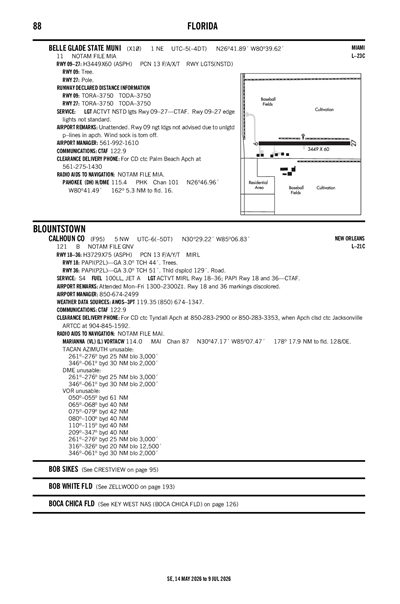

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
KPBI (30nm)
RAW
Reported
Tue, 4/30 10:53 PM EDT
Valid
Tue, 4/30 11:00 PM EDT - Wed, 5/1 8:00 PM EDT
VFR
11:00 PM EDT - 11:00 AM EDT
Showers in vicinity
Broken 10,000'
Broken 5,000'
Scattered 3,000'
Viz
6sm
Wind
VRB° 4kts
VFR
11:00 AM EDT - 2:00 PM EDT
Showers in vicinity
Broken 5,000'
Scattered 2,500'
Viz
6sm
Wind
140° 8kts
VFR
2:00 PM EDT - 6:00 PM EDT
Thunderstorm in vicinity
Broken 5,000'
Scattered 2,500'
Viz
6sm
Wind
120° 11kts
VFR
6:00 PM EDT - 8:00 PM EDT
Broken 10,000'
Scattered 5,000'
Few 2,500'
Viz
6sm
Wind
110° 9kts
KPBI 010253Z 0103/0124 VRB04KT P6SM VCSH SCT030 BKN050 BKN100
FM011500 14008KT P6SM VCSH SCT025 BKN050
FM011800 12011KT P6SM VCTS SCT025CB BKN050
FM012200 11009KT P6SM FEW025 SCT050 BKN100
X10
Domestic
4/24/24
1300Z
!MIA 04/279 X10 AIRSPACE SEE PHX 04/278 PJE 2404241300-2410242359
4/9/24
2107Z
!MIA 04/116 X10 OBST TOWER LGT (ASR 1252640) 264101.30N0804338.30W (3.8NM WSW X10) 446.9FT (433.7FT AGL) U/S 2404092107-2405092359
ATC Tower
No
Attendance
UNATNDD
Owner
CITY OF BELLE GLADE
110 DR MARTIN LUTHER KING JR BLVD
BELLE GLADE, FL 33430-3900
Phone: 561-996-0100
Manager
DIANA HUGHES
110 DR MARTIN LUTHER KING JR BLVD
BELLE GLADE, FL 33430
Phone: 561-992-1610
FSS
MIAMI FSS (MIA)
Toll Free: 1-800-WX-BRIEF
NOTAM
MIA
Light Schedule
--
Lights
ACTVT LIRL RWY 09/27 -CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
No
Landing Fee
No
Parking
None
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
6
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Crop Dusting
Runway 09/27
Dimensions
3455 ft. x 50 ft.
Surface Type
ASPH
Surface Cond
Excellent
Treatment
NONE
Rwy Edge Lgts
LOW
Pavement Class
13 /F/A/X/T
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 09
Runway 27
True Heading
90°
270°
Traffic Pattern
Left
Left
Markings
BSC
BSC
Markings Condition
FAIR
FAIR
Latitude
26° 41' 53"N
26° 41' 53"N
Longitude
80° 39' 56"W
80° 39' 18"W
Elevation
14'
11'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
RY 09 NIGHT LNDGS NOT ADVISED DUE TO UNLGTD POWER LINES IN APCH.
A110-3
FOR CD CTC PALM BEACH APCH AT 561-275-1430
BELLE GLADE STATE MUNI (IATA: X10) is a public airport located in BELLE GLADE, FL.
