UMATILLA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

X23
Local X23
UMATILLA MUNI
PublicPUB

1 miles E of UMATILLA, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
28° 55' 29"N 81° 39' 06"W
Elevation
106' MSL
Pattern Alt
1106' MSL
Mag Variation
7°W
Declination
6°W
Fuel
100LL, 100
FSS
SAINT PETERSBURG (PIE)
Sectional
JACKSONVILLE
ARTCC
JACKSONVILLE (ZJX)
Data Effective
8/6/26-9/3/26
KLEE (10nm) VFR
8:53 AM EDT
Few 1,700'
10sm
81°F
73°F
30.02"Hg
VRB° 3kts
AO2 SLP166 T02720228
METAR KLEE 231253Z VRB03KT 10SM FEW017 27/23 A3002 RMK AO2 SLP166 T02720228
+ Add Your Business

X23 FBOs

Promote Listing
Umatilla Municipal Airport
UNICOM: 122.9
Phone: (352) 669-2290
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 8/18
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.20
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT PAPI RWY 01 & 19; MIRL RWY 01/19- CTAF.

Approach

ORLANDO APPROACH 135.3

Departure

ORLANDO DEPARTURE 135.3

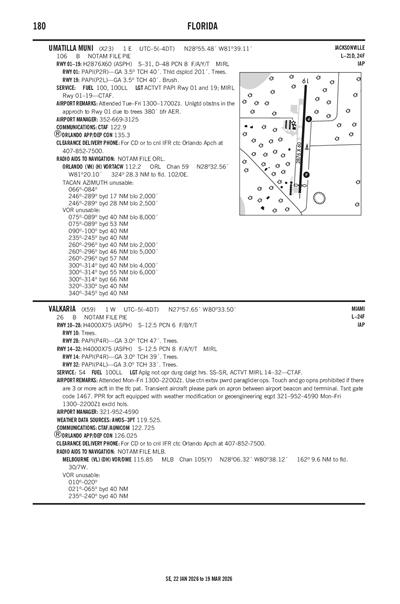

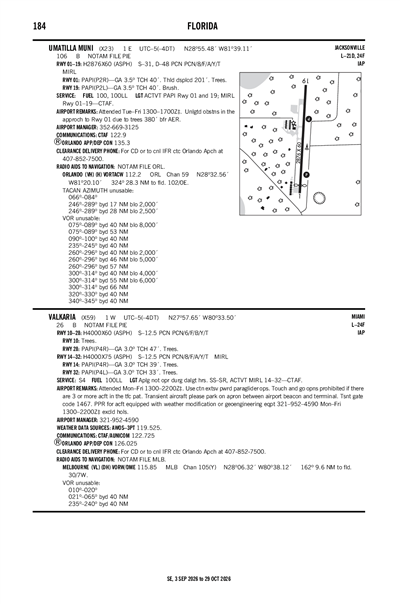

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KLEE (10nm)
Sun, 8/23 7:22 AM EDT
Sun, 8/23 8:00 AM EDT - Mon, 8/24 8:00 AM EDT
VFR
8:00 AM EDT - 12:00 PM EDT
Broken 25,000'
Broken 7,000'
Scattered 6,000'
6sm
190° 5kts
VFR
12:00 PM EDT - 1:00 PM EDT
Showers in vicinity
Scattered 12,000'
Scattered 4,000'
6sm
220° 6kts
VFR
1:00 PM EDT - 6:00 PM EDT
Thunderstorm in vicinity
Broken 20,000'
Scattered 5,000'
Scattered 4,000'
6sm
280° 8kts
MVFR
Temporary 2:00 PM EDT - 5:00 PM EDT
Thunderstorm and Rain
Broken 4,000'
3sm
Calm
VFR
6:00 PM EDT - 8:00 AM EDT
Scattered 12,000'
Scattered 5,000'
6sm
260° 7kts
TAF KLEE 231122Z 2312/2412 19005KT P6SM SCT060 BKN070 BKN250
   FM231600 22006KT P6SM VCSH SCT040 SCT120
   FM231700 28008KT P6SM VCTS SCT040CB SCT050 BKN200
   TEMPO 2318/2321 3SM TSRA BKN040CB
   FM232200 26007KT P6SM SCT050 SCT120
X23
EffectiveExpiresCategoryNOTAM
Domestic
8/27/26
1300Z
8/27/26
2100Z
!PIE 08/247 X23 AIRSPACE FLTCK ACFT OPS WI AN AREA DEFINED AS 5NM RADIUS OF X23 SFC-3500FT AGL ACFT CS FLC69
2608271300-2608272100
8/21/26
1131Z
11/20/26
0400Z
!PIE 08/256 X23 OBST TOWER LGT (ASR 1235074) 285259.20N0814146.10W (3.5NM SW X23) 275.9FT (205.1FT AGL) U/S 2608211131-2611200400
8/15/26
0330Z
11/14/26
2359Z
!PIE 08/191 X23 OBST TOWER LGT (ASN 2024-ASO-25067-OE) 285756N0813850W (2.5NM NE X23) 418FT (330FT AGL) U/S 2608150330-2611142359
8/6/26
2022Z
9/6/26
2359Z
Runway!PIE 08/087 X23 RWY 19 RENL U/S 2608062022-2609062359
8/6/26
2021Z
9/6/26
2359Z
Runway!PIE 08/086 X23 RWY 01 RENL U/S 2608062021-2609062359
8/6/26
2021Z
9/6/26
2359Z
Runway!PIE 08/085 X23 RWY 19 PAPI U/S 2608062021-2609062359
8/6/26
2021Z
9/6/26
2359Z
Runway!PIE 08/084 X23 RWY 01 PAPI U/S 2608062021-2609062359
8/6/26
2020Z
9/6/26
2359Z
Runway!PIE 08/083 X23 RWY 01/19 REDL U/S 2608062020-2609062359
8/6/26
2020Z
9/6/26
2359Z
Runway!PIE 08/082 X23 RWY 19 RWY END ID LGT U/S 2608062020-2609062359
8/6/26
2019Z
9/6/26
2359Z
Runway!PIE 08/081 X23 RWY 01 RWY END ID LGT U/S 2608062019-2609062359
7/22/26
1405Z
10/20/26
1405Z
!PIE 07/309 X23 OBST TOWER LGT (ASR 1203999) 290007.10N0813158.80W (7.9NM NE X23) 265.1FT (199.1FT AGL) U/S 2607221405-2610201405
No
TUE-FRI 0800-1200
CITY OF UMATILLA
PO BOX 2286
UMATILLA, FL 32784
Phone: 352-669-3125
AARON MERCER
PO BOX 2286
UMATILLA, FL 32784
Phone: 352-669-3125
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
PIE
--
ACTVT PAPI RWY 01 & 19; MIRL RWY 01/19- CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Pilot Instruction

Runway 01/19

2876 ft. x 60 ft.
ASPH
Excellent
NONE
MED
8/F/A/Y/T
31,000lbs
48,000lbs
--
--
  Runway 01 Runway 19
True Heading 3°183°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 28° 55' 15"N 28° 55' 43"N
Longitude 81° 39' 07"W 81° 39' 06"W
Elevation 101' 106'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3.5° 3.5°
Visual Slope Indicator P2R P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD OR TO CNL IFR CTC ORLANDO APCH AT 407-852-7500.
A110-2UNLGTD OBSTRUCTIONS IN THE APPRCH TO RWY 01 DUE TO TREES 380 FT BFR AER.
A15AIRPORT PHYSICAL ADDRESS: 1 UMATILLA AIRPORT WAY, UMATILLA, FL 32784
A57-01RWY 01 APCH SLP 16:1 TO DTHR.
A57-19RWY 19 APCH SLP 24:1 TO DTHR.
A81-APTACTVT PAPI RWY 01 & 19; MIRL RWY 01/19- CTAF.
E111EXISTED PRIOR TO 1959.
UMATILLA MUNI (IATA: X23) is a public airport located in UMATILLA, FL, US.
