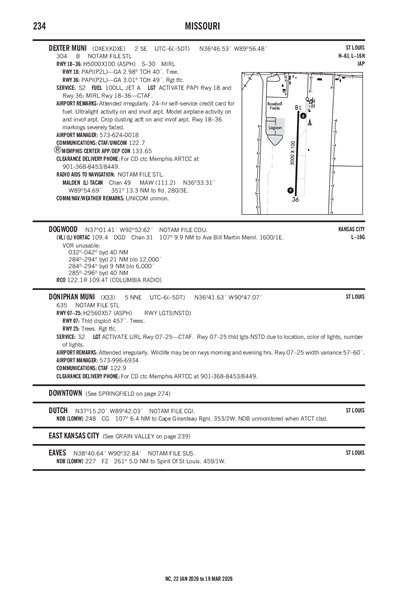

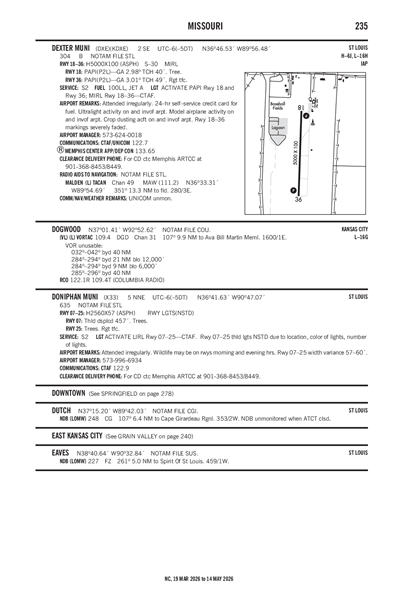

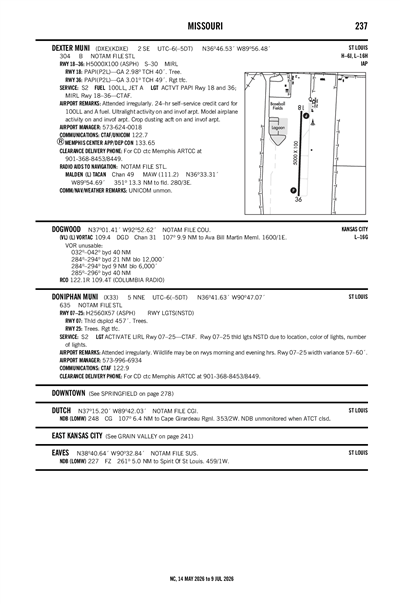

DONIPHAN MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

X33
Local X33
DONIPHAN MUNI
PublicPUB

5 miles NNE of DONIPHAN, MO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 41' 38"N 90° 47' 04"W
Elevation
635' MSL
Pattern Alt
1635' MSL
Mag Variation
1°W
Declination
3°E
Fuel
None Listed
FSS
SAINT LOUIS (STL)
Sectional
ST LOUIS
ARTCC
MEMPHIS (ZME)
Data Effective
6/11/26-7/9/26
K4M9 (19nm) VFR
7:55 PM CDT
Clear
9sm
82°F
82°F
29.96"Hg
Calm
A01 LTG DSNT SW-N
METAR K4M9 260055Z AUTO 00000KT 9SM CLR 28/28 A2996 RMK A01 LTG DSNT SW-N
+ Add Your Business

X33 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT LIRL RWY 07/25 - CTAF.

FAA A/FD Pages

Terminal Area Forecast

KJBR (52nm)
Thu, 6/25 6:20 PM CDT
Thu, 6/25 7:00 PM CDT - Fri, 6/26 7:00 PM CDT
VFR
7:00 PM CDT - 10:00 AM CDT
Overcast 10,000'
Broken 6,000'
6sm
180° 6kts
MVFR
1:00 AM CDT - 7:00 AM CDT
Thunderstorm and Rain
Broken 3,500'
4sm
Calm
VFR
10:00 AM CDT - 7:00 PM CDT
Broken 9,000'
6sm
210° 12kts
Gusts 22kts
TAF KJBR 252320Z 2600/2624 18006KT P6SM BKN060 OVC100
   PROB30 2606/2612 4SM TSRA BKN035CB
   FM261500 21012G22KT P6SM BKN090
X33
EffectiveExpiresCategoryNOTAM
Domestic
6/25/26
1422Z
9/25/26
2359Z
!STL 06/589 X33 OBST TOWER LGT (ASR 1211765) 363520.20N0904910.40W (6.5NM SSW X33) 1082.7FT (503.0FT AGL) U/S 2606251422-2609252359
6/25/26
1421Z
9/25/26
2359Z
!STL 06/588 X33 OBST TOWER LGT (ASR 1269878) 364815.20N0904312.40W (7.3NM NNE X33) 951.1FT (249.0FT AGL) U/S 2606251421-2609252359
6/11/26
0828Z
10/9/26
0828Z
!STL 06/217 X33 OBST TOWER LGT (ASR 1310557) 364010.72N0910659.51W (16.1NM W X33) 1172FT (360FT AGL) U/S 2606110828-2610090828
6/8/26
0921Z
7/23/26
0921Z
!STL 06/131 X33 OBST TOWER LGT (ASR 1294758) 363520.40N0904911.20W (6.5NM SSW X33) 925.9FT (345.8FT AGL) U/S 2606080921-2607230921
6/5/26
0852Z
7/20/26
0851Z
!STL 06/098 X33 OBST TOWER LGT (ASR 1054416) 363844.30N0904802.60W (3.0NM SSW X33) 876.0FT (267.1FT AGL) U/S 2606050852-2607200851
No
IREG
CITY OF DONIPHAN
110 NORTH GRAND AVENUE
DONIPHAN, MO 63935
Phone: 573-996-2623
JARRET FICKE
110 NORTH GRAND AVENUE
DONIPHAN, MO 63935
Phone: 573-996-6934
SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF
STL
--
ACTVT LIRL RWY 07/25 - CTAF.
N/A
Yes
Yes
No
Tie-Down
No
Minor
Minor
None
None
None

Runway 07/25

2560 ft. x 57 ft.
ASPH
Excellent
NONE
NSTD

--
--
--
--
  Runway 07 Runway 25
True Heading 73°253°
Traffic Pattern Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 36° 41' 34"N 36° 41' 42"N
Longitude 90° 47' 19"W 90° 46' 49"W
Elevation 620' 620'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1WILDLIFE MAY BE ON RYS MORNING & EVENING HRS.
A110-2FOR CD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
A32-07/25WIDTH VARIANCE 57-60 FT.
A40-07/25RWY 7/25 THR LTG NSTD DUE TO LCTN, COLOR OF LGTS, NR OF LGTS.
A57-07APCH RATIO 13:1 TO DSPLCD THLD
A58-07+1-2 FT GND 0-75 FT FM RWY RELCTD THLD 100-125 FT LEFT.
A58-25RWY 25 +1-2 BRUSH & HIGH GND; 0-200 FT FM RWY END; 100-125 FT RIGHT; TREES & +1-10 FT BRUSH; 100-200 FT FM RWY END; 100-125 FT LEFT.
A81-APTACTVT LIRL RWY 07/25 - CTAF.
E111SEE LETTER DEC 30, 1988.
DONIPHAN MUNI (IATA: X33) is a public airport located in DONIPHAN, MO, US.
