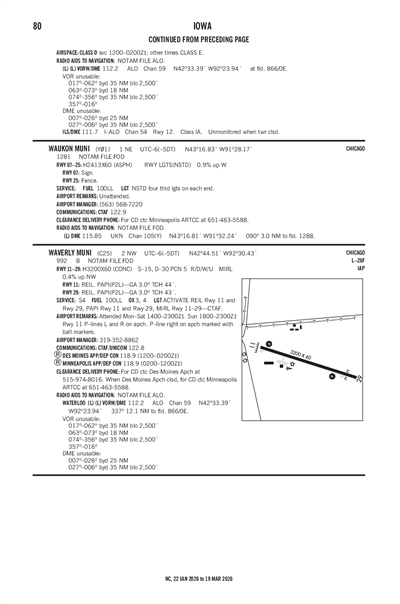

WAUKON MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

Y01
Local Y01
WAUKON MUNI
PublicPUB

1 miles NE of WAUKON, IA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 16' 50"N 91° 28' 10"W
Elevation
1281' MSL
Pattern Alt
2281' MSL
Mag Variation
1°W
Declination
2°E
Fuel
100LL
FSS
FORT DODGE (FOD)
Sectional
CHICAGO
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
5/14/26-6/11/26
KDEH (12nm) VFR
6:35 AM CDT
Clear
10sm
55°F
45°F
29.76"Hg
170° 9kts
Gusts 16kts
AO2
METAR KDEH 151135Z AUTO 17009G16KT 150V220 10SM CLR 13/07 A2976 RMK AO2
+ Add Your Business

Y01 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KLSE (37nm)
Fri, 5/15 6:20 AM CDT
Fri, 5/15 7:00 AM CDT - Sat, 5/16 7:00 AM CDT
VFR
7:00 AM CDT - 10:00 AM CDT
Few 20,000'
6sm
180° 11kts
Gusts 20kts
VFR
10:00 AM CDT - 4:00 PM CDT
Few 25,000'
6sm
200° 9kts
VFR
4:00 PM CDT - 9:00 PM CDT
Few 25,000'
6sm
180° 9kts
MVFR
7:00 PM CDT - 9:00 PM CDT
Light Thunderstorm and Rain
Broken 10,000'
4sm
Calm
MVFR
9:00 PM CDT - 1:00 AM CDT
Light Thunderstorm and Rain
Overcast 9,000'
4sm
160° 7kts
IFR
9:00 PM CDT - 1:00 AM CDT
Thunderstorm and Rain
Overcast 2,500'
2sm
Calm
VFR
1:00 AM CDT - 7:00 AM CDT
Broken 10,000'
6sm
VRB° 4kts
TAF KLSE 151120Z 1512/1612 18011G20KT P6SM FEW200
   FM151500 20009KT P6SM FEW250
   FM152100 18009KT P6SM FEW250
   PROB30 1600/1602 4SM -TSRA BKN100CB
   FM160200 16007KT 4SM -TSRA OVC090CB
   PROB30 1602/1606 2SM TSRA OVC025CB
   FM160600 VRB04KT P6SM BKN100
Y01
EffectiveExpiresCategoryNOTAM
Domestic
5/9/26
1045Z
8/9/26
1044Z
!FOD 05/052 Y01 OBST TOWER LGT (ASR 1017106) 431739.00N0912956.00W (1.5NM WNW Y01) 1548.9FT (258.9FT AGL) U/S 2605091045-2608091044
5/8/26
2012Z
6/22/26
2011Z
!FOD 05/046 Y01 OBST TOWER LGT (ASN 2025-ACE-3938-OE) 431125N0912244W (6.7NM SE Y01) 1413FT (265FT AGL) U/S 2605082012-2606222011
4/14/26
0413Z
6/14/26
1212Z
!FOD 04/092 Y01 OBST TOWER LGT (ASR 1300213) 431141.10N0912053.30W (7.4NM SE Y01) 1514.1FT (309.1FT AGL) U/S 2604140413-2606141212
No
UNATNDD
CITY OF WAUKON
101 ALLAMAKEE
WAUKON, IA 52172
Phone: 563-568-3491
JIM WADSWORTH
402 ROSSVILLE ROAD
WAUKON, IA 52172
Phone: (563) 568-7220
FORT DODGE FSS (FOD)
Toll Free: 1-800-WX-BRIEF
FOD
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Tie-Down
No
None
None
None
None
None

Runway 07/25

2413 ft. x 60 ft.
ASPH
Fair
NONE
NSTD

--
--
--
--
  Runway 07 Runway 25
True Heading Not ListedNot Listed
Traffic Pattern
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A14HOME PHONE 563-568-7220.
A40-07/25FOUR THLD LGTS ON EACH END.
WAUKON MUNI (IATA: Y01) is a public airport located in WAUKON, IA, US.
