MANDAN RGNL/LAWLER FLD - Airport Diagram

Y19

MANDAN RGNL/LAWLER FLD

PublicPUB

4 miles S of MANDAN, ND

View on Map

Status

Operational

Coordinates

46° 46' 05"N 100° 53' 40"W

Elevation

1944' MSL

Pattern Alt

2944' MSL

Mag Variation

06E

Fuel

Jet A, 100LL

FSS

GRAND FORKS (GFK)

Sectional

TWIN CITIES

ARTCC

MINNEAPOLIS (ZMP)

Data Effective

4/18/24-5/16/24

KY19 VFR

10:15 AM CDT RAW

Clear

Viz

10sm

Temp

57°F

Dew

43°F

Pres

29.77"Hg

Wind

150° 12kts

RMK

AO2

KY19 251515Z AUTO 15012KT 10SM CLR 14/06 A2977 RMK AO2

List Your Business

Y19 FBOs, Flight Schools and Ground Support

Mandan Regional Airport

Freq: 122.8

Phone: (701) 663-0669

Other: (701) 663-3690

0 Reviews (Read | Sign In To Write)

Independent

As of 4/23	100LL	Jet A	Jet A+	Mogas	UL94
Self Serve	5.35
Full Serve		4.80

Y19 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

Y19 Hotels

No hotels are listed for this airport.

Y19 Restaurants

No restaurants are listed for this airport.

Y19 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.

Your Information

Business

UNICOM 122.8 CTAF 122.8

AWOS-3

701-663-0271

118.225

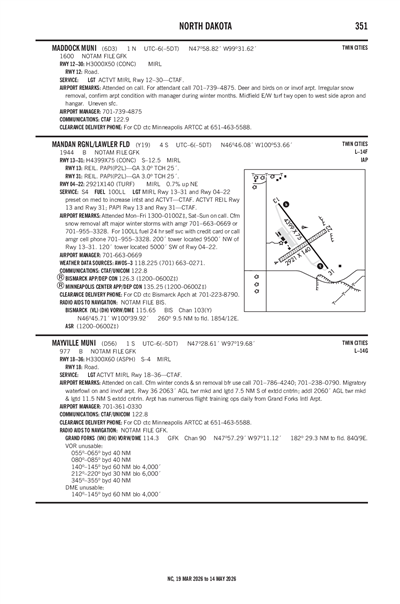

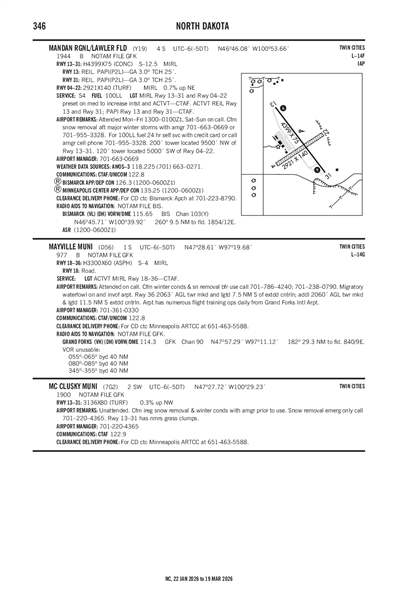

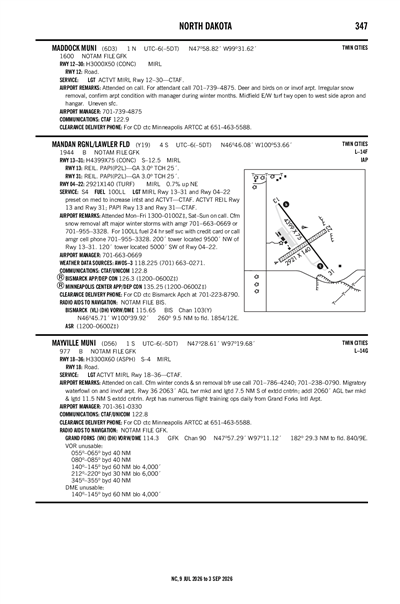

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KBIS (6nm)

RAW

Reported

Thu, 4/25 6:51 AM CDT

Valid

Thu, 4/25 7:00 AM CDT - Fri, 4/26 7:00 AM CDT

VFR

7:00 AM CDT - 10:00 AM CDT

Few 25,000'

Viz

6sm

Wind

110° 5kts

VFR

10:00 AM CDT - 6:00 PM CDT

Few 25,000'

Viz

6sm

Wind

160° 15kts

MVFR

6:00 PM CDT - 10:00 PM CDT

Showers and Rain and Mist and Thunderstorm in vicinity

Overcast 2,800'

Viz

6sm

Wind

150° 16kts

Gusts 27kts

MVFR

10:00 PM CDT - 3:00 AM CDT

Showers and Rain and Mist and Thunderstorm in vicinity

Overcast 1,300'

Viz

6sm

Wind

150° 14kts

IFR

3:00 AM CDT - 7:00 AM CDT

Showers and Rain and Mist and Thunderstorm in vicinity

Overcast 900'

Viz

6sm

Wind

120° 9kts

KBIS 251151Z 2512/2612 11005KT P6SM FEW250
   FM251500 16015KT P6SM FEW250
   FM252300 15016G27KT 6SM SHRA BR VCTS OVC028CB
   FM260300 15014KT 6SM SHRA BR VCTS OVC013CB
   FM260800 12009KT 6SM SHRA BR VCTS OVC009CB

Y19

Domestic
4/24/240228Z	!GFK 04/190 Y19 OBST WIND TURBINE LGT (ASN 2022-WTE-4986-OE) 465753N1011614W (19.4NM NW Y19) 2459FT (267FT AGL) U/S 2404240228-2406080228
4/2/240526Z	!GFK 04/009 Y19 OBST TOWER LGT (ASR 1037194) 464817.00N1011349.00W (14.0NM W Y19) 2539.4FT (298.6FT AGL) U/S 2404020526-2405020001

ATC Tower

Attendance

MON-FRI 0700-1900
SAT-SUN ON CALL

Owner

MANDAN ARPT AUTHORITY
BOX 250
MANDAN, ND 58554
Phone: 701-663-0669

Manager

LINDSAY GERHARDT
BOX 250
MANDAN, ND 58554
Phone: 701-663-0669

FSS

GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF

NOTAM

GFK

Light Schedule

Lights

MIRL RY 13/31 & RY 04/22 PRESET ON MED TO INCR INTST & ACTVT - CTAF; ACTVT REIL RY 13/31; & PAPI RY 13/31 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Crop Dusting
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

Dimensions

2921 ft. x 140 ft.

Surface Type

TURF

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 04	Runway 22
True Heading	55°	235°
Traffic Pattern
Markings
Markings Condition
Latitude	46° 45' 52"N	46° 46' 09"N
Longitude	100° 53' 58"W	100° 53' 24"W
Elevation	1,924'	1,943'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13/31

Dimensions

4399 ft. x 75 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

12,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 13	Runway 31
True Heading	145°	325°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	46° 46' 25"N	46° 45' 50"N
Longitude	100° 53' 57"W	100° 53' 21"W
Elevation	1,942'	1,943'
Threshold Crossing Height	25 ft. AGL	25 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110-1	CFM SN REMOVAL AFT MAJOR WINT STORMS WITH AMGR 701-663-0669 OR 701-955-3328.
A110-2	+200 FT TWR LCTD 9500 FT NW OF RWY 13/31.
A110-3	120 FT TWR LCTD 5000 FT SW OF RWY 04/22.
A110-4	FOR CD CTC BISMARCK APCH AT 701-223-8790.

MANDAN RGNL/LAWLER FLD (IATA: Y19) is a public airport located in MANDAN, ND.
