CRANDON/STEVE CONWAY MUNI - Airport Diagram

Y55

CRANDON/STEVE CONWAY MUNI

PublicPUB

3 miles SW of CRANDON, WI

View on Map

Status

Operational

Coordinates

45° 31' 22"N 88° 55' 42"W

Elevation

1650' MSL

Pattern Alt

2650' MSL

Mag Variation

03W

Fuel

None Listed

FSS

GREEN BAY (GRB)

Sectional

GREEN BAY

ARTCC

MINNEAPOLIS (ZMP)

Data Effective

4/18/24-5/16/24

KAIG (23nm) MVFR

1:55 AM CDT RAW

Rain

Overcast 5,000'
Broken 2,800'
Scattered 500'

Viz

5sm

Temp

47°F

Dew

47°F

Pres

29.71"Hg

Wind

270° 10kts

RMK

AO2 P0008 T00830082

KAIG 010655Z AUTO 27010KT 5SM RA SCT005 BKN028 OVC050 08/08 A2971 RMK AO2 P0008 T00830082

List Your Business

Y55 FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

Y55 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

Y55 Hotels

No hotels are listed for this airport.

Y55 Restaurants

No restaurants are listed for this airport.

Y55 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.

Your Information

Business

UNICOM -- CTAF 122.9

No communication frequencies available for this airport.

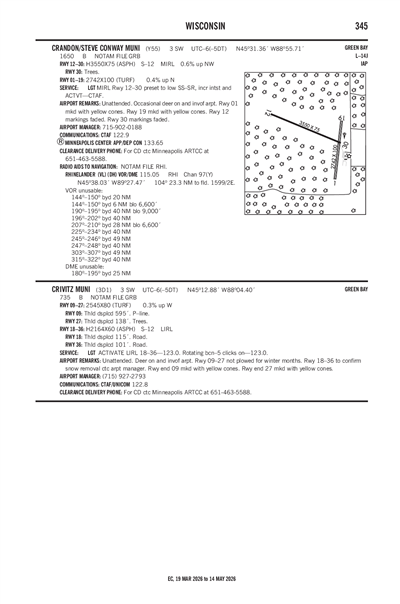

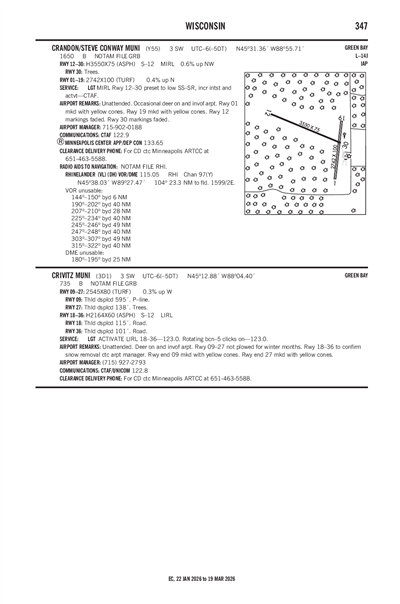

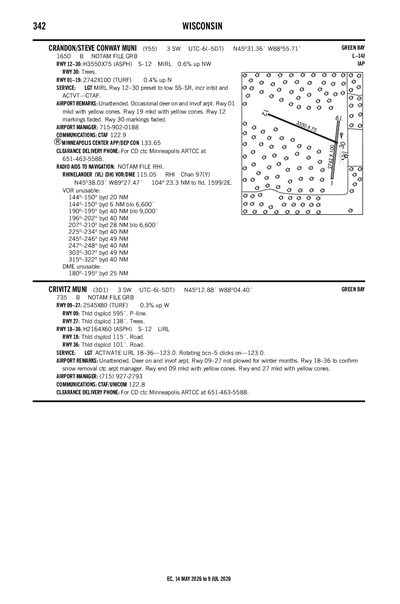

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

TAKEOFF MINIMUMS

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KRHI (24nm)

RAW

Reported

Wed, 5/1 12:31 AM CDT

Valid

Wed, 5/1 1:00 AM CDT - Thu, 5/2 1:00 AM CDT

VFR

1:00 AM CDT - 3:00 AM CDT

Light Showers and Rain

Overcast 4,000'

Viz

6sm

Wind

130° 10kts

MVFR

3:00 AM CDT - 7:00 AM CDT

Showers and Rain and Mist

Overcast 2,000'

Viz

5sm

Wind

180° 10kts

MVFR

7:00 AM CDT - 1:00 PM CDT

Broken 1,200'

Viz

6sm

Wind

250° 13kts

Gusts 20kts

MVFR

1:00 PM CDT - 6:00 PM CDT

Broken 2,200'

Viz

6sm

Wind

270° 14kts

Gusts 23kts

MVFR

6:00 PM CDT - 1:00 AM CDT

Broken 3,000'

Viz

6sm

Wind

300° 12kts

KRHI 010531Z 0106/0206 13010KT 6SM -SHRA OVC040
   FM010800 18010KT 5SM SHRA BR OVC020
   FM011200 25013G20KT P6SM BKN012
   FM011800 27014G23KT P6SM BKN022
   FM012300 30012KT P6SM BKN030

Y55

Domestic
4/28/240218Z	!GRB 04/587 Y55 OBST TOWER LGT (ASN 2022-AGL-21560-OE) 454506N0884149W (16.9NM NE Y55) 1892FT (307FT AGL) U/S 2404280218-2406120217
4/25/241008Z	!GRB 04/544 Y55 OBST TOWER LGT (ASR 1237077) 452204.00N0890820.00W (12.8NM SW Y55) 2221.1FT (499.0FT AGL) U/S 2404251008-2406091007
4/6/242216Z	!GRB 04/257 Y55 OBST TOWER LGT (ASR 1034854) 452250.00N0891122.00W (13.9NM SW Y55) 2222.1FT (495.1FT AGL) U/S 2404062216-2405212215
4/6/242140Z	!GRB 04/256 Y55 OBST TOWER LGT (ASR 1226288) 453400.90N0883950.00W (11.4NM ENE Y55) 1843.5FT (264.8FT AGL) U/S 2404062140-2405212139
3/24/242211Z	!GRB 03/297 Y55 OBST TOWER LGT (ASR 1255570) 452723.40N0891106.00W (11.5NM WSW Y55) 1978.0FT (319.9FT AGL) U/S 2403242211-2405082211

ATC Tower

Attendance

UNATNDD

Owner

CITY OF CRANDON
601 W. WASHINGTON ST, PO BOX 335
CRANDON, WI 54520
Phone: 715-478-2400

Manager

NORMAN KNOLL
8765 MARY ST
ARGONNE, WI 54511
Phone: 715-649-3225

FSS

GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF

NOTAM

GRB

Light Schedule

Lights

MIRL RWY 12/30 PRESET TO LOW SS-SR, INCR INTST AND ACTVT - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

None

Runway 01/19

Dimensions

2742 ft. x 100 ft.

Surface Type

TURF

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 01	Runway 19
True Heading	6°	186°
Traffic Pattern	Left	Left
Markings
Markings Condition
Latitude	45° 31' 02"N	45° 31' 29"N
Longitude	88° 55' 32"W	88° 55' 28"W
Elevation	1,614'	1,627'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	No	No

Runway 12/30

Dimensions

3550 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

12,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 12	Runway 30
True Heading	113°	293°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	POOR	POOR
Latitude	45° 31' 33"N	45° 31' 19"N
Longitude	88° 56' 15"W	88° 55' 29"W
Elevation	1,650'	1,628'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	No	No

A110-2	OCNL DEER ON & INVOF ARPT.
A110-3	FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.

CRANDON/STEVE CONWAY MUNI (IATA: Y55) is a public airport located in CRANDON, WI.
