ELBOW LAKE MUNI/PRIDE OF THE PRAIRIE - Airport Diagram

Y63

ELBOW LAKE MUNI/PRIDE OF THE PRAIRIE

PublicPUB

1 miles SW of ELBOW LAKE, MN

View on Map

Status

Operational

Coordinates

45° 59' 10"N 95° 59' 09"W

Elevation

1206' MSL

Pattern Alt

2206' MSL

Mag Variation

02E

Fuel

100LL

FSS

PRINCETON (PNM)

Sectional

TWIN CITIES

ARTCC

MINNEAPOLIS (ZMP)

Data Effective

4/18/24-5/16/24

KY63 IFR

2:55 AM CDT RAW

Overcast 600'

Viz

10sm

Temp

46°F

Dew

45°F

Pres

29.71"Hg

Wind

280° 19kts

Gusts 25kts

RMK

AO2 T00780070

KY63 010755Z AUTO 28019G25KT 10SM OVC006 08/07 A2971 RMK AO2 T00780070

List Your Business

Y63 FBOs, Flight Schools and Ground Support

Promote Listing

Prairie Air

Freq: 122.9

Phone: (218) 685-6594

Other: (208) 755-5988

0 Reviews (Read | Sign In To Write)

Independent

As of 4/16	100LL	Jet A	Jet A+	Mogas	UL94
Self Serve	5.75
Full Serve	6.25

Y63 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

Y63 Hotels

No hotels are listed for this airport.

Y63 Restaurants

No restaurants are listed for this airport.

Y63 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.

Your Information

Business

UNICOM -- CTAF 122.9

AWOS-3

218-685-6456

118.075

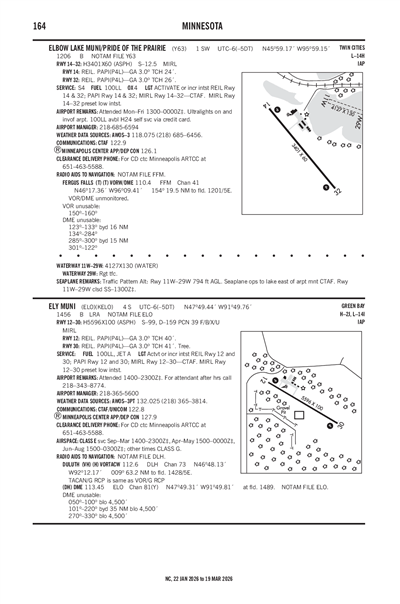

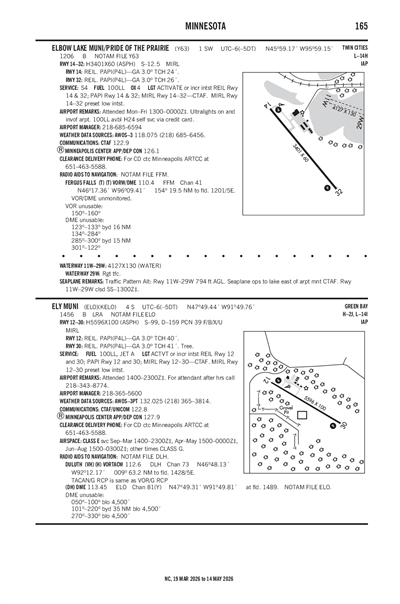

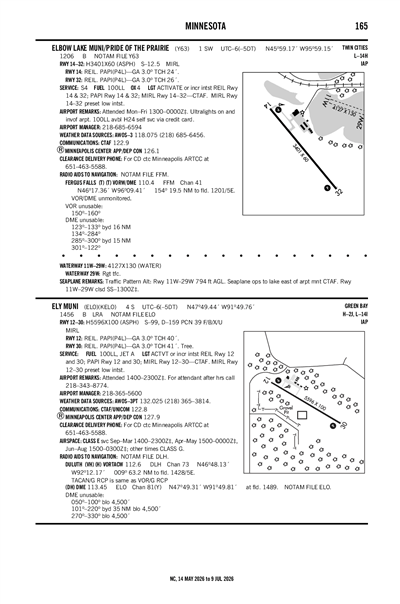

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

TAKEOFF MINIMUMS

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KAXN (26nm)

RAW

Reported

Wed, 5/1 12:20 AM CDT

Valid

Wed, 5/1 1:00 AM CDT - Thu, 5/2 1:00 AM CDT

MVFR

1:00 AM CDT - 11:00 AM CDT

Broken 1,000'

Viz

6sm

Wind

280° 14kts

Gusts 20kts

VFR

11:00 AM CDT - 3:00 PM CDT

Broken 3,500'

Viz

6sm

Wind

270° 16kts

Gusts 23kts

VFR

3:00 PM CDT - 9:00 PM CDT

Few 25,000'

Viz

6sm

Wind

290° 10kts

VFR

9:00 PM CDT - 1:00 AM CDT

Scattered 25,000'

Viz

6sm

Wind

160° 4kts

KAXN 010520Z 0106/0206 28014G20KT P6SM BKN010
   FM011600 27016G23KT P6SM BKN035
   FM012000 29010KT P6SM FEW250
   FM020200 16004KT P6SM SCT250

Y63

Domestic
4/26/241222Z	!Y63 04/004 Y63 RWY 32 RWY END ID LGT U/S 2404261222-2410282111EST
4/24/240417Z	!Y63 04/003 Y63 OBST TOWER LGT (ASR 1214496) 454940.70N0955323.00W (10.3NM SSE Y63) 1623.7FT (407.8FT AGL) U/S 2404240417-2405090317
3/25/241942Z	!Y63 03/003 Y63 OBST TOWER LGT (ASN 2018-AGL-13681-OE) 460712N0954608W (12.1NM NE Y63) 1645FT (362FT AGL) U/S 2403251942-2405091941
FDC
9/27/231522Z	!FDC 3/6055 Y63 IAP ELBOW LAKE MUNI/PRIDE OF THE PRAIRIE, ELBOW LAKE, MN. RNAV (GPS) RWY 32, ORIG-C... TERMINAL ROUTE BLADE (FAF) TO YABUT (SDF) MINIMUM ALTITUDE 2080. LNAV MDA 1600/HAT 394 ALL CATS. 2309271522-2509231522EST

ATC Tower

Attendance

MON-FRI 0700-1800

Owner

CITY OF ELBOW LAKE
C/O CITY CLERK, PO BOX 1079
ELBOW LAKE, MN 56531-1079
Phone: 218-685-4483

Manager

JOE LARUE
1111 2ND ST SW
ELBOW LAKE, MN 56531-4214
Phone: 218-685-6594

FSS

PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF

NOTAM

Y63

Light Schedule

Lights

ACTVT OR INCR INTST REIL RWY 14 & 32; PAPI RWY 14 & 32; MIRL RWY 14/32 - CTAF. MIRL RWY 14/32 PRESET LOW INTST.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

Low Pressure

Bulk Oxygen

None

Other Services

Aircraft Sales

Runway 11W/29W

Dimensions

4127 ft. x 130 ft.

Surface Type

Surface Cond

WATER

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 11W	Runway 29W
True Heading	109°	289°
Traffic Pattern		Right
Markings
Markings Condition
Latitude	45° 59' 21"N	45° 59' 08"N
Longitude	95° 59' 18"W	95° 58' 23"W
Elevation	1,185'	1,185'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 14/32

Dimensions

3401 ft. x 60 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

12,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 14	Runway 32
True Heading	140°	321°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	45° 59' 18"N	45° 58' 52"N
Longitude	95° 59' 46"W	95° 59' 15"W
Elevation	1,203'	1,200'
Threshold Crossing Height	24 ft. AGL	26 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	Yes	Yes

A110-1	ULTRALIGHTS ON & INVOF ARPT.
A110-2	SEAPLANE OPS TO LAKE EAST OF ARPT MNT CTAF.
A110-4	FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.

ELBOW LAKE MUNI/PRIDE OF THE PRAIRIE (IATA: Y63) is a public airport located in ELBOW LAKE, MN.
