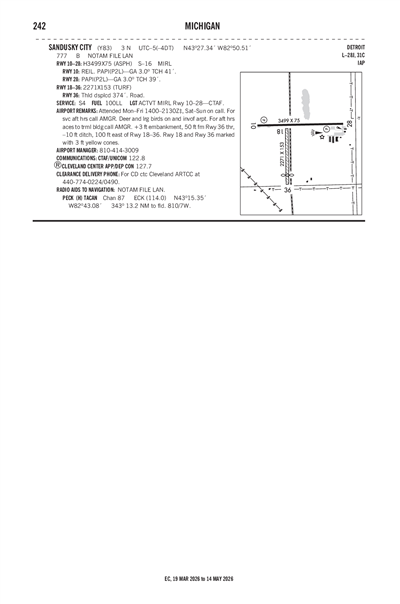

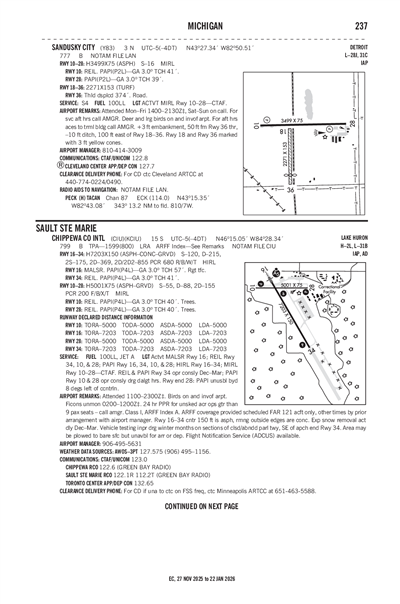

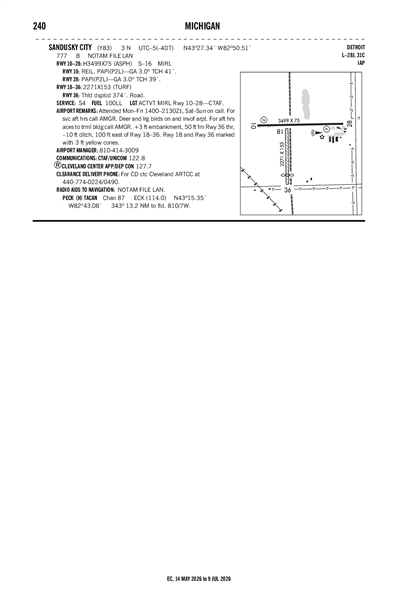

SANDUSKY CITY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

Y83
Local Y83
SANDUSKY CITY
PublicPUB

3 miles N of SANDUSKY, MI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 27' 20"N 82° 50' 30"W
Elevation
777' MSL
Pattern Alt
1777' MSL
Mag Variation
8°W
Declination
8°W
Fuel
100LL
FSS
LANSING (LAN)
Sectional
DETROIT
ARTCC
CLEVELAND (ZOB)
Data Effective
10/29/26-11/26/26
KBAX (20nm) MVFR
7:55 AM EST
Light Rain
Overcast 11,000'
Broken 3,500'
Broken 1,700'
10sm
43°F
41°F
29.73"Hg
050° 7kts
AO2
METAR KBAX 121255Z AUTO 05007KT 10SM -RA BKN017 BKN035 OVC110 06/05 A2973 RMK AO2
+ Add Your Business

Y83 FBOs

Promote Listing
Sandusky City Airport
UNICOM: 122.8
Phone: (810) 414-3009
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 11/5
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 7.10
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT MIRL RWY 10/28 - CTAF.
UNICOM 122.8

Center

CLEVELAND CENTER 127.7
LOW, APCH/DEP SVC PRVDD BY CLEVELAND ARTCC (ZOB) ON FREQS 127.7/290.425 (FREELAND RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

CYZR (36nm)
Thu, 11/12 3:40 AM EST
Thu, 11/12 4:00 AM EST - Thu, 11/12 4:00 PM EST
MVFR
4:00 AM EST - 11:00 AM EST
Overcast 3,000'
6sm
040° 10kts
MVFR
Temporary 4:00 AM EST - 11:00 AM EST
Light Showers and Rain and Mist
Overcast 2,000'
5sm
Calm
MVFR
Temporary 11:00 AM EST - 1:00 PM EST
Broken 2,000'
N/A
Calm
MVFR
11:00 AM EST - 4:00 PM EST
Broken 3,000'
6sm
030° 10kts
Gusts 20kts
TAF CYZR 120840Z 1209/1221 04010KT P6SM OVC030
   TEMPO 1209/1216 5SM -SHRA BR OVC020
   FM121600 03010G20KT P6SM BKN030
   TEMPO 1216/1218 BKN020 RMK FCST BASED ON AUTO OBS. NXT FCST BY 121400Z
Y83
EffectiveExpiresCategoryNOTAM
Domestic
11/6/26
1728Z
3/6/27
1728Z
!LAN 11/054 Y83 OBST TOWER LGT (ASR 1200138) 433510.00N0824505.00W (8.8NM NNE Y83) 1200.1FT (349.1FT AGL) U/S 2611061728-2703061728
No
MON-FRI 0900-1630
SAT-SUN ON CALL
FOR SVC AFT HRS CALL AMGR.
CITY OF SANDUSKY
26 W SPEAKER ST
SANDUSKY, MI 48471
Phone: 810-648-4444
DON JOHNSTON
CITY HALL 26 W SPEAKER ST
SANDUSKY, MI 48471
Phone: 810-414-3009
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
LAN
--
ACTVT MIRL RWY 10/28 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
None

Runway 10/28

3499 ft. x 75 ft.
ASPH
Excellent
NONE
MED

16,000lbs
--
--
--
  Runway 10 Runway 28
True Heading 89°269°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 43° 27' 25"N 43° 27' 26"N
Longitude 82° 50' 51"W 82° 50' 04"W
Elevation 776' 774'
Threshold Crossing Height 41 ft. AGL 39 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes No

Runway 18/36

2271 ft. x 153 ft.
TURF
Good
NONE


--
--
--
--
  Runway 18 Runway 36
True Heading 179°359°
Traffic Pattern
Markings
Markings Condition
Latitude 43° 27' 24"N 43° 27' 01"N
Longitude 82° 50' 35"W 82° 50' 35"W
Elevation 774' 773'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1+3 FT EMBANKMENT, 50 FT FM RWY 36 THR; -10 FT DITCH, 100 FT EAST OF RWY 18/36.
A110-2DEER & LRG BIRDS ON & INVOF ARPT.
A110-3FOR CD CTC CLEVELAND ARTCC AT 440-774-0224/0490.
A110-4FOR AFT HRS ACES TO TRML BLDG CALL AMGR.
A17-H2FOR SVC AFT HRS CALL AMGR.
A42-18_MARK3 FT YELLOW CONES.
A42-36_MARK3 FT YELLOW CONES.
A57-36APCH RATIO 6:1 TO DTHR OVR 63 FT TREE, 380 FT DIST, 150 FT R.
A81-APTACTVT MIRL RWY 10/28 - CTAF.
SANDUSKY CITY (IATA: Y83) is a public airport located in SANDUSKY, MI, US.
