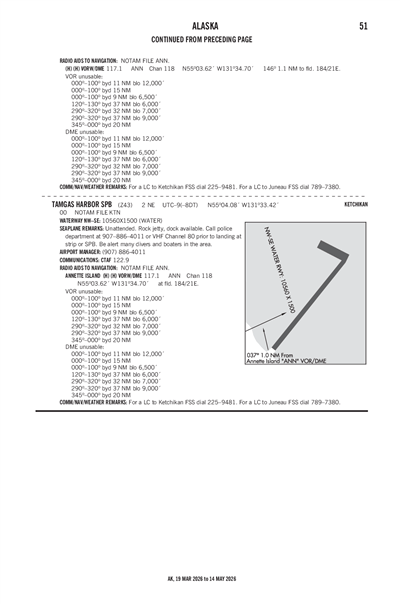

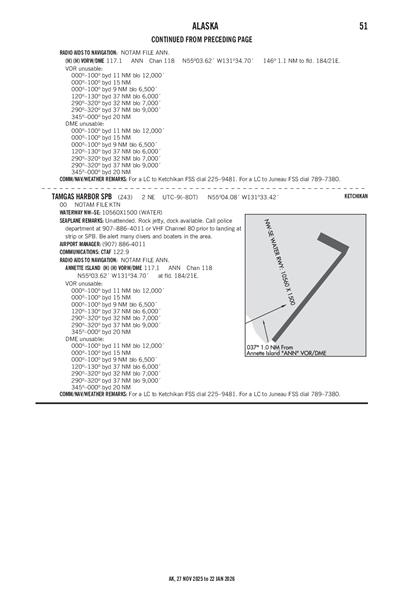

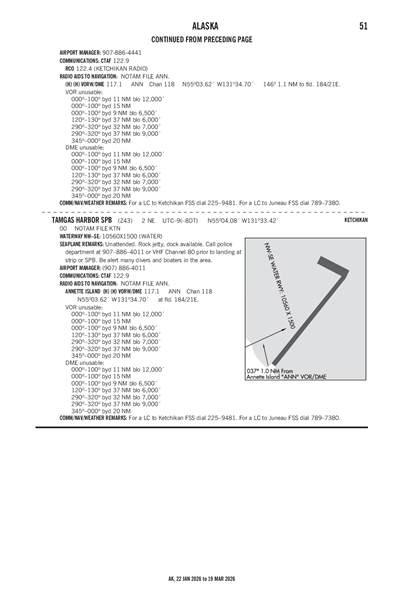

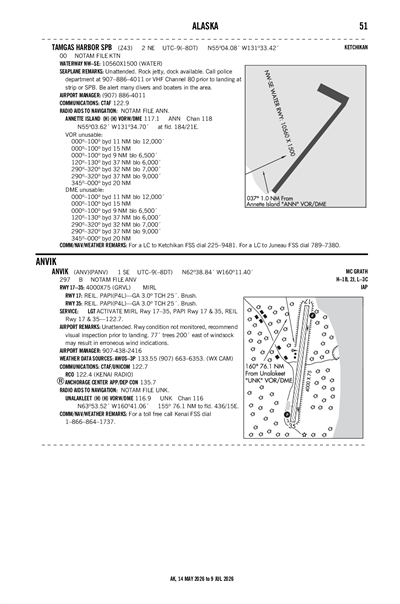

TAMGAS HARBOR - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

Z43
Local Z43
TAMGAS HARBOR
PublicPUB

2 miles NE of ANNETTE, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
55° 04' 05"N 131° 33' 25"W
Elevation
0' MSL
Pattern Alt
1000' MSL
Mag Variation
18°E
Declination
26°E
Fuel
None Listed
FSS
KETCHIKAN (KTN)
Sectional
KETCHIKAN
ARTCC
ANCHORAGE (ZAN)
Data Effective
2/19/26-3/19/26
PAKT (18nm) MVFR
4:53 AM AKDT
Overcast 7,000'
Broken 3,900'
Broken 3,000'
10sm
33°F
32°F
30.19"Hg
160° 6kts
AO2 SLP224 T00060000 PWINO FZRANO TSNO $
METAR PAKT 151253Z AUTO 16006KT 10SM BKN030 BKN039 OVC070 01/00 A3019 RMK AO2 SLP224 T00060000 PWINO FZRANO TSNO $
+ Add Your Business

Z43 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

PAKT (18nm)
Sun, 3/15 3:42 AM AKDT
Sun, 3/15 4:00 AM AKDT - Mon, 3/16 4:00 AM AKDT
MVFR
Temporary 4:00 AM AKDT - 6:00 AM AKDT
Light Showers and Snow
Broken 1,500'
3sm
Calm
MVFR
4:00 AM AKDT - 6:00 AM AKDT
Mist and Showers in vicinity
Overcast 4,000'
Broken 2,500'
6sm
150° 7kts
IFR
6:00 AM AKDT - 9:00 AM AKDT
Light Showers and Snow and Mist
Overcast 2,500'
Broken 1,500'
2sm
150° 9kts
LIFR
9:00 AM AKDT - 2:30 PM AKDT
Snow and Mist
Overcast 1,500'
Scattered 700'
0.5sm
150° 17kts
Gusts 30kts
LIFR
2:30 PM AKDT - 5:00 PM AKDT
Heavy Snow and Mist
Overcast 1,500'
Broken 700'
Few 300'
0.25sm
150° 25kts
Gusts 40kts
MVFR
5:00 PM AKDT - 11:00 PM AKDT
Rain
Overcast 2,000'
3sm
150° 25kts
Gusts 40kts
MVFR
11:00 PM AKDT - 4:00 AM AKDT
Light Rain
Overcast 2,000'
5sm
150° 18kts
Gusts 30kts
TAF PAKT 151142Z 1512/1612 15007KT 6SM BR VCSH BKN025 OVC040
   TEMPO 1512/1514 3SM -SHSN BKN015
   FM151400 15009KT 2SM -SHSN BR BKN015 OVC025 WS020/15035KT
   FM151700 15017G30KT 1/2SM SN BR SCT007 OVC015 WS020/15045KT
   FM152230 15025G40KT 1/4SM +SN BR FEW003 BKN007 OVC015 WS020/15045KT
   FM160100 15025G40KT 3SM RA OVC020 WS020/16040KT
   FM160700 15018G30KT 5SM -RA OVC020 WS020/18030KT AMD LTD TO CLD VIS AND WIND TIL 151500
Z43
No NOTAM Available
No
UNATNDD
COUNCIL OF ANNETTE IS
P.O. BOX 8
METLAKATLA, AK 99926
Phone: 907-886-4441
CHIEF OF POLICE
P.O. BOX 8
METLAKATLA, AK 99926
Phone: (907) 886-4011
KETCHIKAN FSS (KTN)
Toll Free: LC225-9481
KTN
--
--
N/A
No
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway NW/SE

10560 ft. x 1500 ft.

WATER
NONE


--
--
--
--
  Runway NW Runway SE
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation 0' 0'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ROCK JETTI, DOCK AVBL.
A110-2CALL POLICE DEPARTMENT AT 907-886-4011 OR VHF CHANNEL 80 PRIOR TO LANDING AT STRIP OR SPB.
A110-3BE ALERT MANY DIVERS & BOATERS IN THE AREA.
TAMGAS HARBOR (IATA: Z43) is a public seaplane base located in ANNETTE, AK, US.
