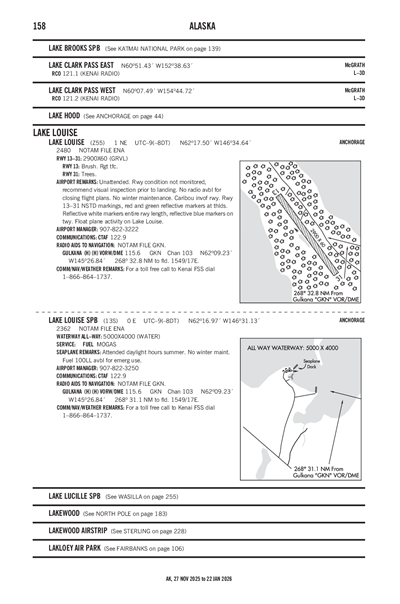

LAKE LOUISE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAAO
ICAO PAAOLocal Z55
LAKE LOUISE
PublicPUB

1 miles NE of LAKE LOUISE, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
62° 17' 30"N 146° 34' 38"W
Elevation
2480' MSL
Pattern Alt
3480' MSL
Mag Variation
16°E
Declination
27°E
Fuel
None Listed
FSS
KENAI (ENA)
Sectional
ANCHORAGE
ARTCC
ANCHORAGE (ZAN)
Data Effective
6/11/26-7/9/26
PAZK (27nm) VFR
12:56 PM AKDT
Overcast 7,000'
Scattered 4,500'
10sm
51°F
42°F
29.78"Hg
220° 8kts
Gusts 14kts
AO2 RAB1957E15 SLP106 P0000 60000 T01060056 56003 $
METAR PAZK 252056Z AUTO 22008G14KT 10SM SCT045 OVC070 11/06 A2978 RMK AO2 RAB1957E15 SLP106 P0000 60000 T01060056 56003 $
+ Add Your Business

PAAO FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

PAGK (32nm)
Thu, 6/25 9:25 AM AKDT
Thu, 6/25 10:00 AM AKDT - Fri, 6/26 10:00 AM AKDT
VFR
10:00 AM AKDT - 4:00 PM AKDT
Showers in vicinity
Broken 7,000'
6sm
VRB° 5kts
VFR
4:00 PM AKDT - 1:00 AM AKDT
Showers in vicinity
Broken 8,000'
Scattered 5,000'
6sm
010° 10kts
VFR
1:00 AM AKDT - 6:00 AM AKDT
Broken 5,000'
6sm
350° 6kts
VFR
6:00 AM AKDT - 10:00 AM AKDT
Light Showers and Rain
Overcast 5,000'
Scattered 2,500'
6sm
350° 5kts
TAF PAGK 251725Z 2518/2618 VRB05KT P6SM VCSH BKN070
   FM260000 01010KT P6SM VCSH SCT050 BKN080
   FM260900 35006KT P6SM BKN050
   FM261400 35005KT P6SM -SHRA SCT025 OVC050
PAAO
No NOTAM Available
No
UNATNDD
ALASKA DOT&PF NORTHERN REGION
2301 PEGER ROAD
FAIRBANKS, AK 99701
Phone: 907-451-2200
CHAD HELLER
PO BOX 7
GLENNALLEN, AK 99588
Phone: 907-822-3222
KENAI FSS (ENA)
Toll Free: 1-866-864-1737
ENA
--
--
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 13/31

2900 ft. x 60 ft.
GRAVEL
Excellent
NONE


--
--
--
--
  Runway 13 Runway 31
True Heading 150°330°
Traffic Pattern Right Left
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude 62° 17' 42"N 62° 17' 17"N
Longitude 146° 34' 54"W 146° 34' 23"W
Elevation 2,480' 2,474'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RWY COND UNMNT; RCMD VISUAL INSP BFR LNDG.
A110-10CARIBOU INVOF RWY.
A110-5RADIO UNAVBL TO CLOSE FP.
A110-7WINTER MAINT NA.
A110-9CTN: LAKE FLOAT PLANE ACT.
A42-13_MARKRED & GREEN THR REFLECTORS; REFLECTIVE WHITE MKRS FULL LEN; REFLECTIVE BLUE MARKERS ON TWY.
A42-31_MARKRED & GREEN THR REFLECTORS; REFLECTIVE WHITE MKRS FULL LEN; REFLECTIVE BLUE MARKERS ON TWY.
LAKE LOUISE (ICAO: PAAO, IATA: Z55) is a public airport located in LAKE LOUISE, AK, US.
