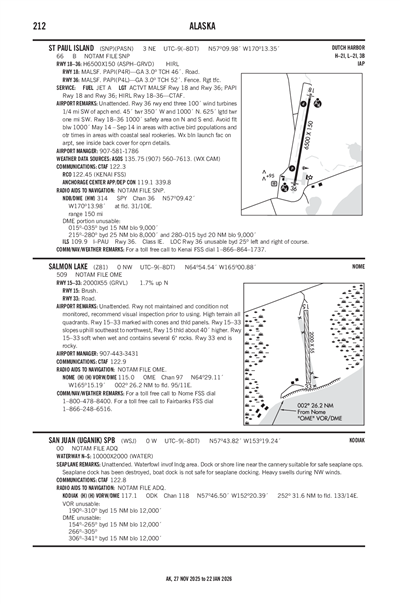

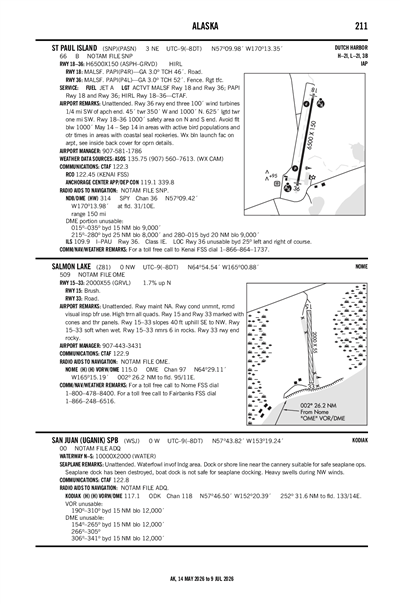

SALMON LAKE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

Z81
Local Z81
SALMON LAKE
PublicPUB

0 miles NW of SALMON LAKE, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
64° 54' 32"N 165° 00' 53"W
Elevation
509' MSL
Pattern Alt
1509' MSL
Mag Variation
8°E
Declination
17°E
Fuel
None Listed
FSS
NOME (OME)
Sectional
NOME
ARTCC
ANCHORAGE (ZAN)
Data Effective
6/11/26-7/9/26
PATE (39nm) VFR
4:56 PM AKDT
Clear
10sm
66°F
45°F
29.84"Hg
310° 11kts
AO2 SLP107 T01890072
METAR PATE 260056Z AUTO 31011KT 10SM CLR 19/07 A2984 RMK AO2 SLP107 T01890072
+ Add Your Business

Z81 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

PAOM (26nm)
Thu, 6/25 3:20 PM AKDT
Thu, 6/25 4:00 PM AKDT - Fri, 6/26 4:00 PM AKDT
VFR
4:00 PM AKDT - 1:00 AM AKDT
Scattered 12,000'
6sm
230° 7kts
VFR
1:00 AM AKDT - 10:00 AM AKDT
Scattered 10,000'
6sm
330° 6kts
VFR
10:00 AM AKDT - 4:00 PM AKDT
Broken 10,000'
6sm
100° 5kts
TAF PAOM 252320Z 2600/2624 23007KT P6SM SCT120
   FM260900 33006KT P6SM SCT100
   FM261800 10005KT P6SM BKN100 AMD NOT SKED
Z81
No NOTAM Available
No
UNATNDD
ALASKA DOT&PF NORTHERN REGION
2301 PEGER RD
FAIRBANKS, AK 99709
Phone: (907) 451-2200
GEORGE KOST
PO BOX 1048
NOME, AK 99762
Phone: 907-443-3431
NOME FSS (OME)
Toll Free: 1-800-478-8400
OME
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 15/33

2000 ft. x 55 ft.
GRAVEL
Good
NONE


--
--
--
--
  Runway 15 Runway 33
True Heading 162°342°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 64° 54' 42"N 64° 54' 23"N
Longitude 165° 01' 00"W 165° 00' 46"W
Elevation 509' 476'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2RWY MAINT NA. RWY COND UNMNT, RCMD VISUAL INSP BFR USE.
A110-5HIGH TRRN ALL QUADS.
A30-15/33SLOPES 40 FT UPHILL SE TO NW.
A30A-33RWY END ROCKY.
A33-15/33_CONDSOFT WHEN WET.
A33-15/33_SURFNMRS 6 IN ROCKS.
A42-15_MARKCONES & THR PANELS.
A42-33_MARKCONES & THR PANELS.
E111ESTABD PRIOR TO 1959.
SALMON LAKE (IATA: Z81) is a public airport located in SALMON LAKE, AK, US.
